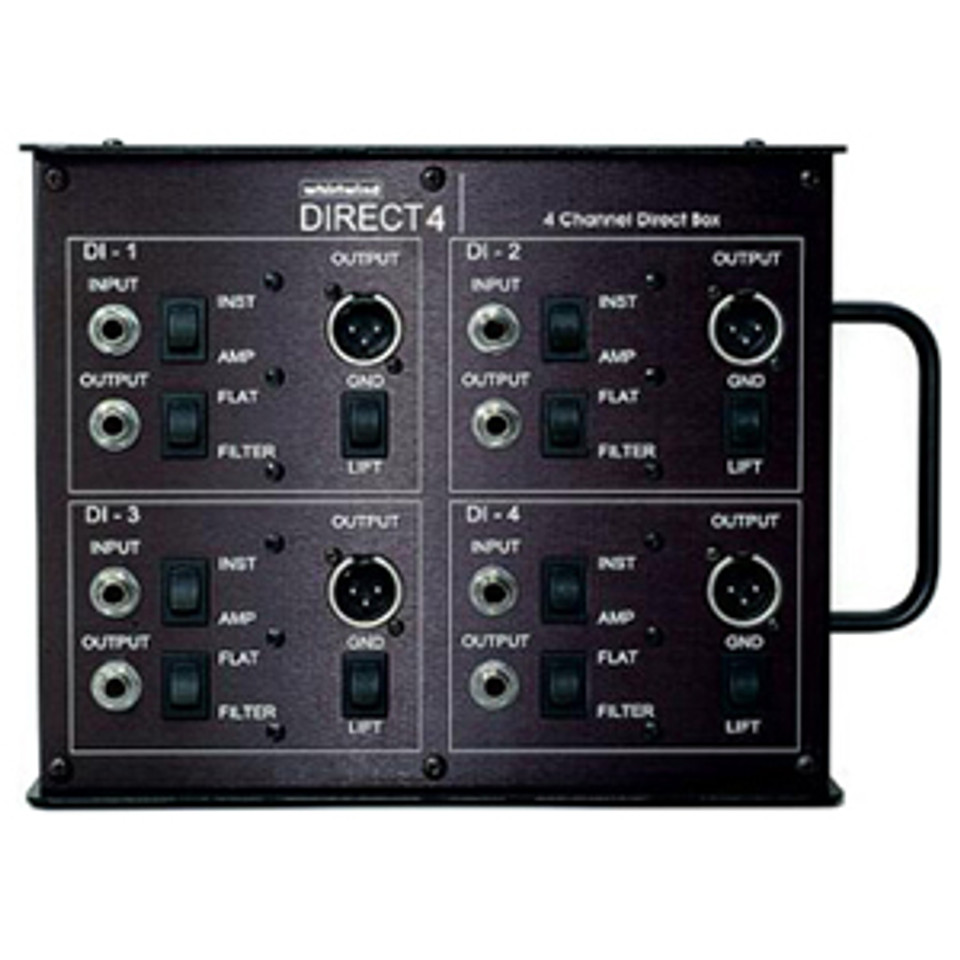

Whirlwind DIRECT4
Four Channel Direct Stagebox
The DIRECT4 combines features found on four of our DIRECTOR ® Live Sound > Signal Processing > Install Sound > Installation Accessories > Direct Boxes in one unit. Perfect for converting unbalanced signals from multiple instruments keys acoustic guitar preamps CD and tape players computer sound cards etc.
Each section features:
- 1/4" parallel wired in/out jacks
- Ground Lift switch to help eliminate hum and buzz
- Filter switch to help reduce amplifier noise and hiss
- -20dB pad switch for connection to "hot" input signals
- Uses Whirlwind's TRHL-M transformer with metal shield
The input and output grounds of each section are isolated from each other. This allows the DIRECT4 to be used as if it were four completely separate DIs without fear of creating ground loop interaction.
Specifications:
| Input Connections | 4 x 1/4" TS phone |
| Output Connectors | 4 x XLR 4 x 1/4" TS phone Thru |
| Input Level | Not specified by manufacturer |
| Output Level | 20dB below input level |
| Frequency Response | 20Hz to 20kHz, +/-1dB |
| Noise | Not specified by manufacturer |
| Power | Passive |
| Specialties | Uses Whirlwind's TRHL-M transformer with metal shield |
Packaging Info:
| Package Weight | 7.35 lb |
| Box Dimensions (LxWxH) | 12.4 x 12.1 x 4.4" |
