Overview

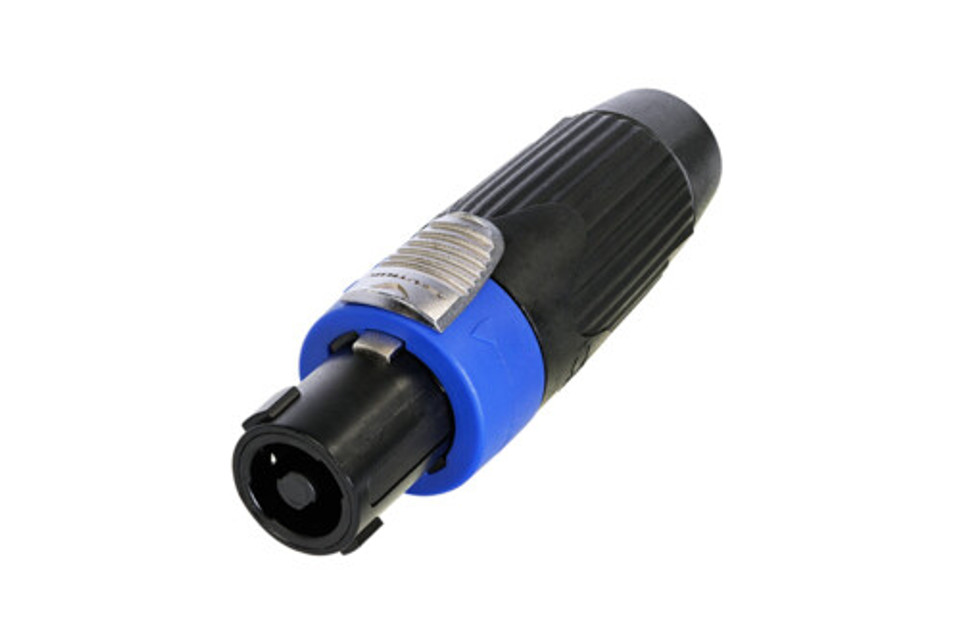

4 pole female cable connector, black metal housing, chuck type strain relief
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features
- IEC 61984 certified, IEC 62368-1 compliant
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Uses precise “Quick Lock” system
- Extra large solder contacts for up to 6 mm² (AWG 10) wires
- Weatherproof built-in gasket meets IP 54 protection class in mated condition
Specifications
Electrical | |
Contact resistance | < 2 mΩ |
Dielectric strength | 2.8 kVac |
Insulation resistance | >0.1 GΩ (after dampheat) |
Rated current per contact | 30 A rms continuous |
Rated voltage | 250 V ac |
Attention | speakON is NOT to be used as an AC mains or power supply connector! |
Mechanical | |
Cable O.D. | 9 - 16 mm |
Lifetime | > 5000 mating cycles |
Wiresize | 6 mm² |
Wiresize | 10 AWG |
Termination | Solder contacts |
Locking device | Quick Lock (latch) |
Material | |
Contact plating | Ag |
Contacts | Copper Alloy |
Shell | Zinc diecast, black chrome plated |
Insert | Polyamide (PA 66) |
Locking element | Zinc diecast, Ni plated |
Strain relief | Polyacetal (POM) |
Shell coating | Black KTL |
Environmental | |
Temperature range | -30 °C to +80 °C |
Flammability | UL 94 V-0 |
Protection class | IP 54 (mated condition) |
Solderability | Complies with IEC68-2-20 |
