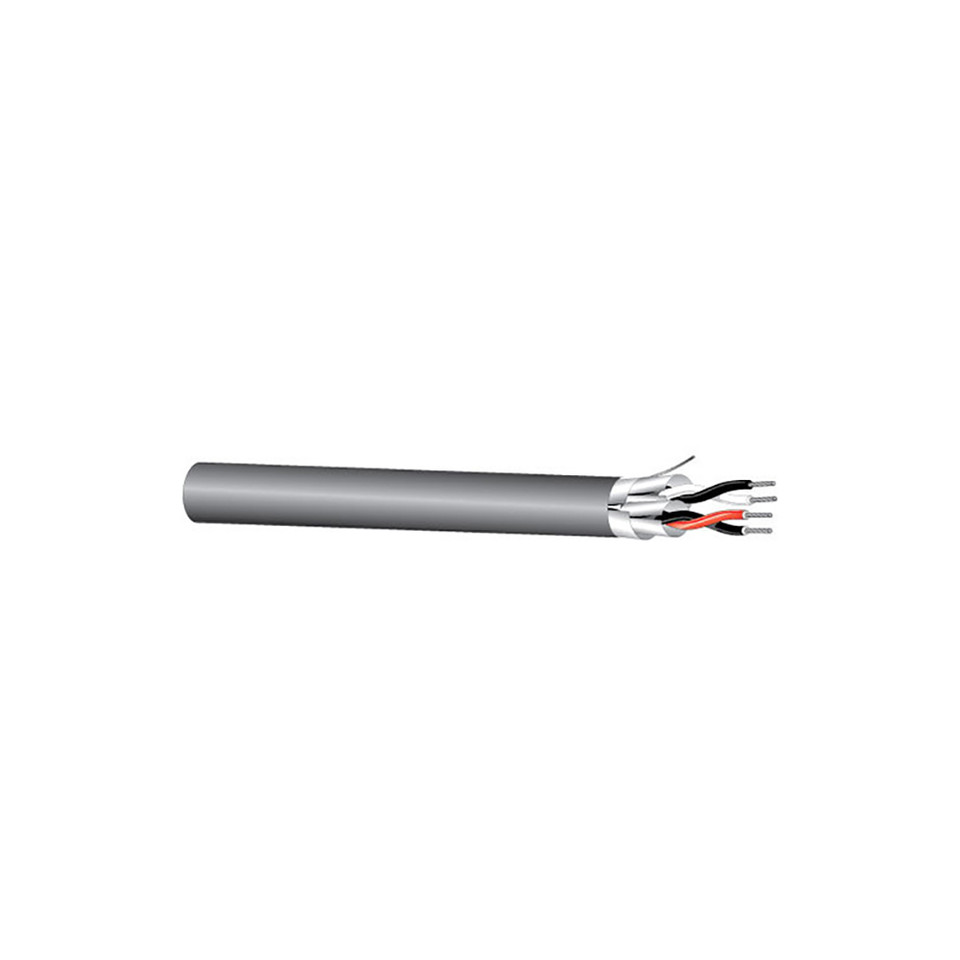

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Pairs | 2 |
| AWG Size | 24 |
| Conductor Stranding | 7x32 |
| Conductor Type | Tinned Copper |
| Nominal DCR | 26 Ohm/1000ft |
| INSULATION PARAMETER | - |
| Insulation Type | Foam Polyethylene |
| Insulation Thickness | 0.022 in |
| Insulation Color Code | 1. Black-Rd, Red, 2.Black-Wh, White 3.Black-Gn, Green |
| SHIELDING PARAMETER | - |
| Shield Type | Individually Shielded |
| Shield Type 2 | Overall 100% Aluminum Foil |
| Drain Wire Type | Tinned Copper |
| Drain Wire AWG | 24 AWG |
| ELECTRICAL CHARACTERISTICS | - |
| Nominal Impedance | 110 Ohm |
| Nom. Cap. Between Conductors | 12.5 pF/ft |
| Nom. Cap. Conductor to Shield | 22 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | PVC |
| Jacket Thickness | 0.030 in |
| Nominal Cable O.D. | 0.265 in |
| Plenum | No |
| NEC UL Rating | CM |
| RoHS Compliant | Yes |
| TIA Test | AES/EBU |
| Pull Tension | 29 lbs |
| Bend Radius | 2.385 in |
| Cable Weight | 34 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| Nominal Velocity of Propagation (VP) | 76 % |
| UL Flammability | UL1685 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
