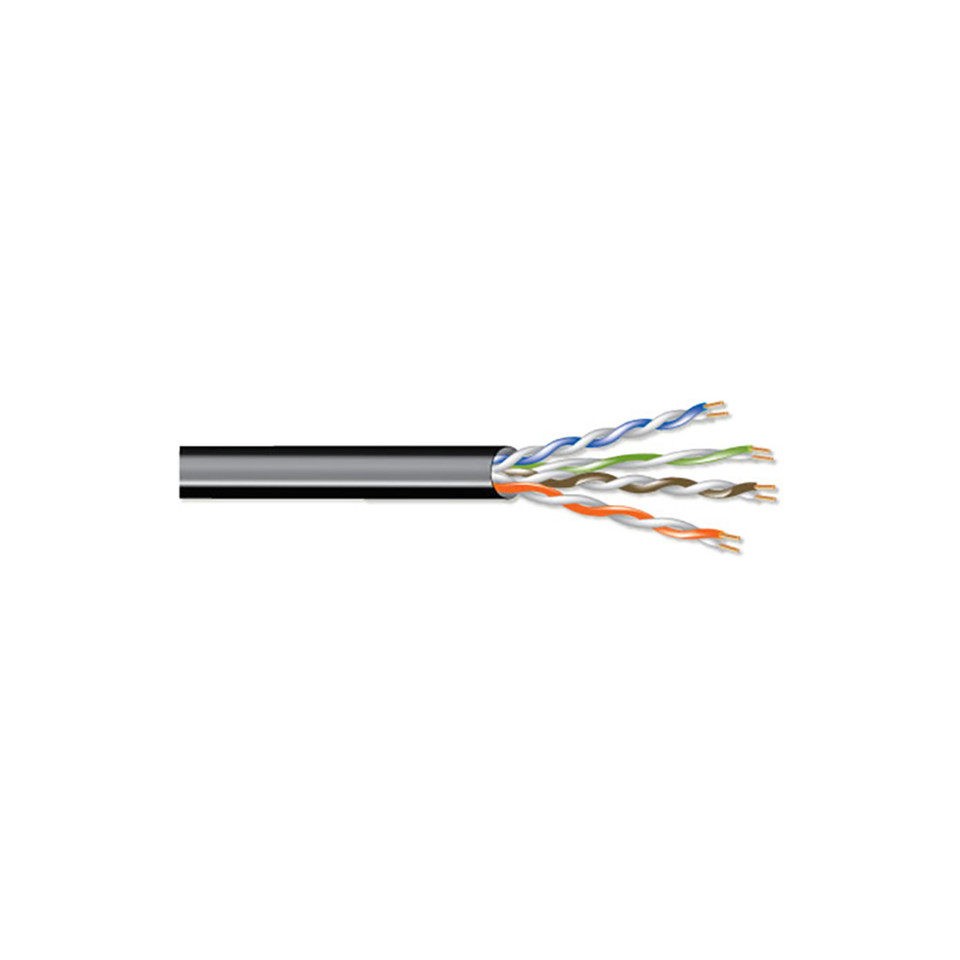

| CONDUCTOR PARAMETERS | |
| Number Of Pairs | 4 |
| AWG Size | 23 |
| Conductor Stranding | Solid |
| Conductor Type | Bare Copper |
| Nominal DCR | 22 Ohm/1000ft |
| INSULATION PARAMETERS | |
| Insulation Type | Polyolefin |
| Insulation Color Code | 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown |
| SHIELDING PARAMETERS | |
| Shield Type | Unshielded Twisted Pair (UTP) |
| Flooding Compound | Yes |
| ELECTRICAL CHARACTERISTICS | |
| Nominal Impedance | 100 Ohm |
| Nominal Capacitance Between Conductors | 14 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Total Number of Conductors | 8 |
| Jacket Type | UV Resistant PE |
| Nominal Cable O.D. | 0.255 in |
| Plenum | No |
| NEC UL Rating | Outdoor |
| ANSI/TIA Category | Category 6 TIA/EIA 568C.2 |
| TIA Test | ANSI/TIA-568-C.2 |
| Pull Tension | 35 lbs |
| Bend Radius | 1.275 in |
| Cable Weight | 39 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| Nominal Velocity of Propagation (VP) | 72 % |
| Delay Skew | 30 ns/100m |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
