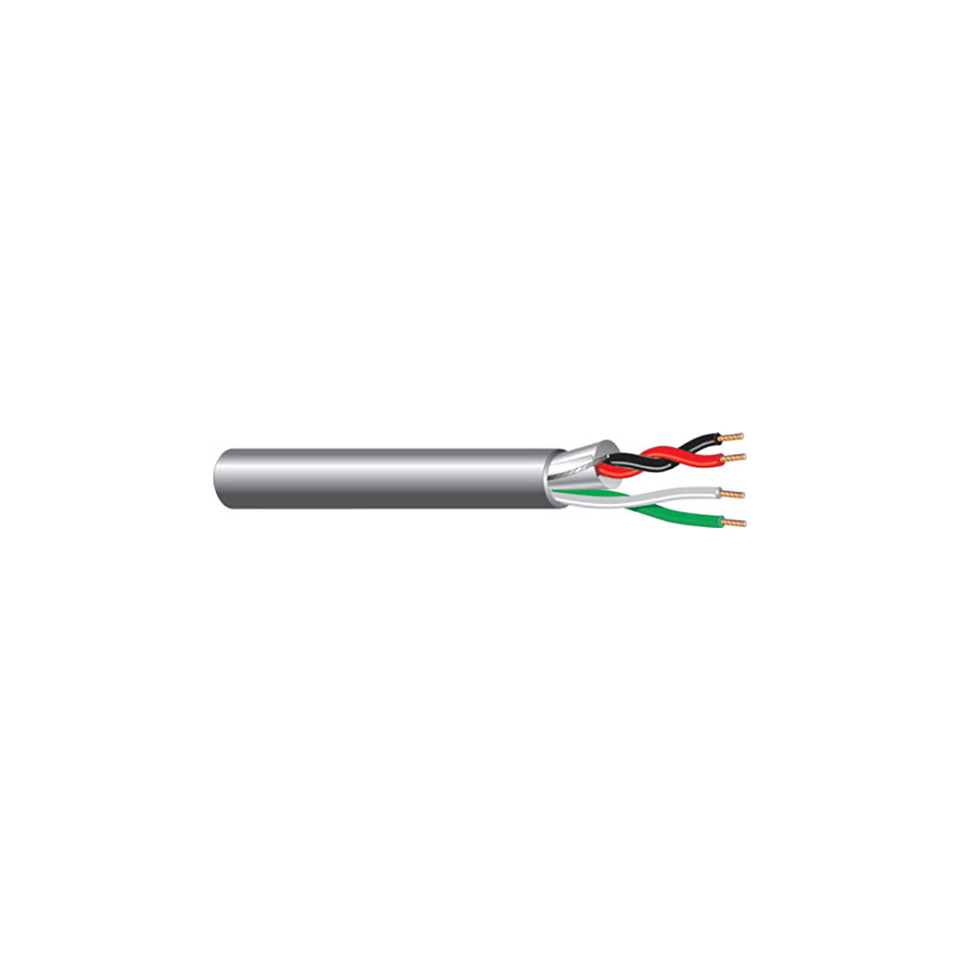

CONSTRUCTION & DIMENSIONS | - | |
Component | Shielded | Unshielded |
CONDUCTOR PARAMETER | - | |
Number of Conductors | 2 | 2 |
AWG Size | 22 | 22 |
Conductor Stranding | Solid | Solid |
Conductor Type | Bare Copper | Bare Copper |
Nominal DCR | 17.5 Ohm/1000ft | 17.5 Ohm/1000ft |
INSULATION PARAMETER | - | |
Insulation Type | Polypropylene - PP | Polypropylene - PP |
Insulation Thickness | 0.008 in | 0.008 in |
Insulation Color Code | 1. Black 2.Red | 1. White 2.Green |
SHIELDING PARAMETER | - | |
Shield Type | Overall 100% Aluminum Foil | None |
Drain Wire Type | Tinned Copper | |
Drain Wire AWG | 22 AWG | |
ELECTRICAL CHARACTERISTICS | - | |
Nom. Cap. Between Conductors | 34 pF/ft | |
Nom. Cap. Conductor to Shield | 67 pF/ft |
OVERALL CONSTRUCTION PARAMETERS | - |
Total Number of Conductors | 4 |
Jacket Type | PVC |
Jacket Thickness | 0.017 in |
Nominal Cable O.D. | 0.15 in |
Plenum | No |
NEC UL Rating | CMR, CMG |
RoHS Compliant | Yes |
Pull Tension | 42 lbs |
Bend Radius | 1.349 in |
Cable Weight | 21 lbs |
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
UL Flammability | UL1666 Vertical Shaft |
CSA Flammability | FT4 |
Operating Range | -20 to 60 Deg C |
UL Voltage Rating | 300 |
RELATED PRODUCTS | - |
Plenum Number | 25355B |
Aquaseal Number | AQC355 |
