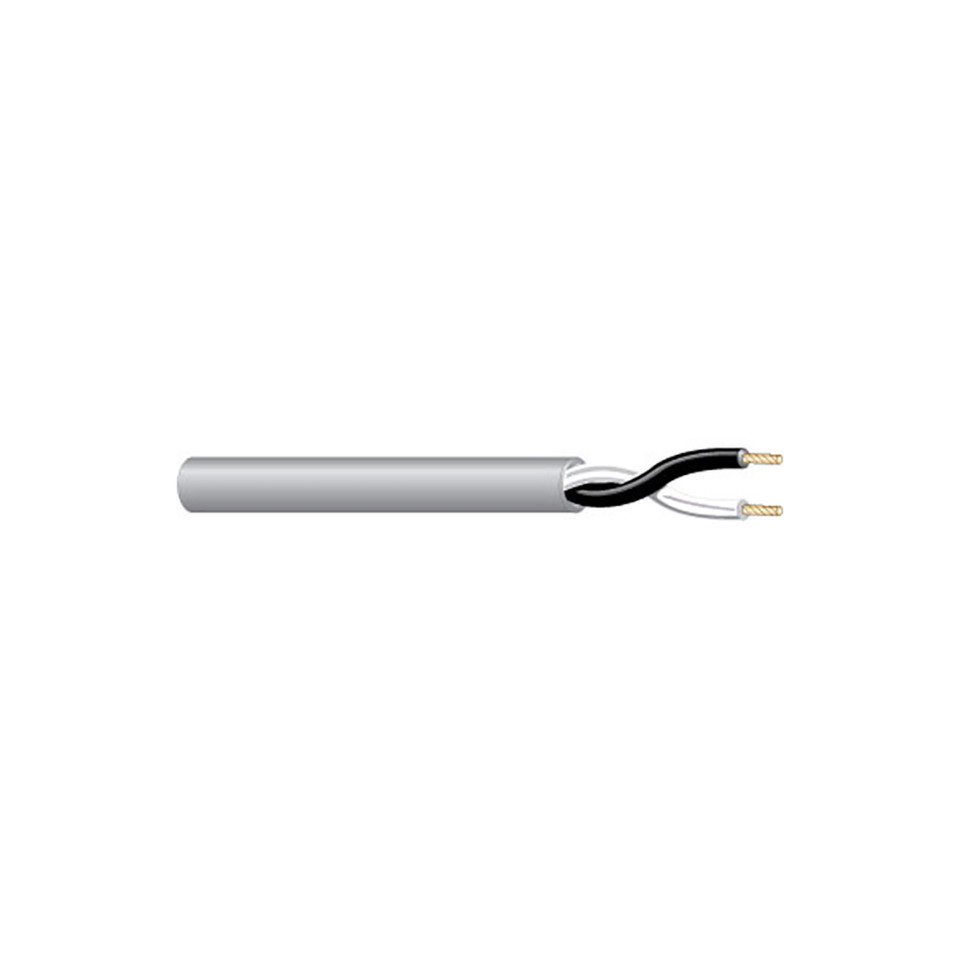

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Conductors | 2 |
| AWG Size | 12 |
| Conductor Stranding | 19x25 |
| Conductor Type | Bare copper |
| Nominal DCR | 1.7 Ohm/1000ft |
| Cabling Lay Length | 4.25 in |
| INSULATION PARAMETER | |
| Insulation Type | Plenum PVC |
| Insulation Thickness | 0.012 in |
| Insulation Color Code | 1. Black 2.White |
| SHIELDING PARAMETER | |
| Shield Type | None |
| ELECTRICAL CHARACTERISTICS |
| OVERALL CONSTRUCTION PARAMETERS | |
| Jacket Type | Flexible Plenum |
| Jacket Thickness | 0.015 in |
| Nominal Cable O.D. | 0.263 in |
| Plenum | Yes |
| NEC UL Rating | CL3P, FPLP |
| RoHS Compliant | Yes |
| Pull Tension | 146 lbs |
| Bend Radius | 2.367 in |
| Cable Weight | 54 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | NFPA 262 Plenum |
| Operating Range | -0 to 60 Deg C |
| UL Voltage Rating | 300 |
