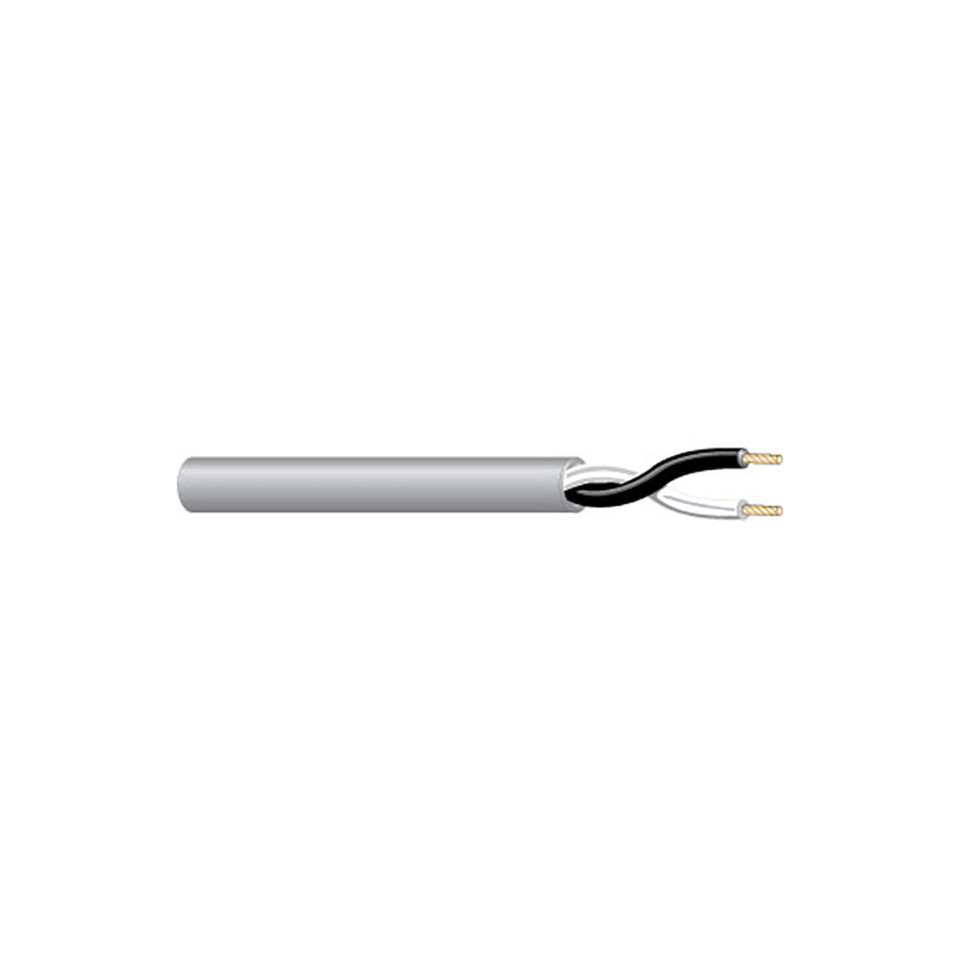

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 2 |
| AWG Size | 10 |
| Conductor Stranding | 65x28 |
| Conductor Type | Bare copper |
| Nominal DCR | 1.1 Ohm/1000ft |
| INSULATION PARAMETER | - |
| Insulation Type | Polypropylene - PP |
| Insulation Thickness | 0.012 in |
| Insulation Color Code | 1. Black 2.White |
| SHIELDING PARAMETER | - |
| Shield Type | None |
| ELECTRICAL CHARACTERISTICS | - |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | PVC |
| Jacket Thickness | 0.025 in |
| Nominal Cable O.D. | 0.257 in |
| Plenum | No |
| NEC UL Rating | CL2 |
| RoHS Compliant | Yes |
| Pull Tension | 250 lbs |
| Bend Radius | 2.313 in |
| Cable Weight | 83 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| UL Flammability | UL1685 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
