Overview

A low-cost point-of-view camera with HD image quality.

Key Features:

• 20x powered zoom with 63° horizontal field of view
• Up to 1080p/60 HD image quality
• HDMI, YPbPr, and USB 2.0 or H.264 streaming outputs
• Power/Video/Control on two Cat-5’s up to 150 ft (45.72 m)
• Manual Pan/Tilt with EZ Set tensioning system

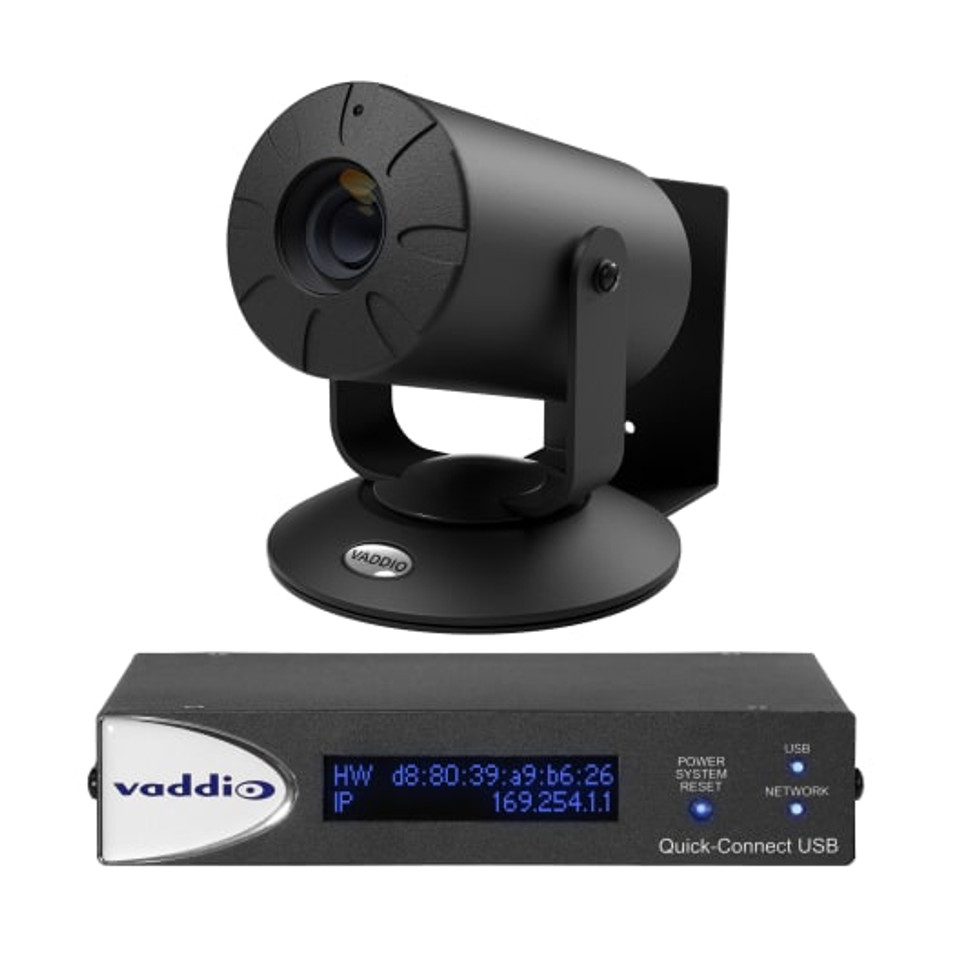

The ZoomSHOT 20 SE is a cost-effective, versatile, high-definition point-of-view camera well-suited for small, medium, and large rooms. It is designed to support a wide range of applications, including houses of worship, pro A/V system integration, live events, IMAG systems, UCC applications, videoconferencing, distance learning classrooms, and lecture capture. The camera captures with a full HD 1/2.8” Sony 1080p image sensor, 20x optical zoom, and 63° horizontal field of view. It also features a manual pan/tilt, an EZ Set tensioning system, and a presenter-friendly IR remote control.

The ZoomSHOT 20 SE QUSB System is easy to install and use, and it offers a variety of outputs including simultaneous HDMI, component HD (YPbPr) and either USB 2.0 or IP Streaming. IP control of the ZoomSHOT camera is also available from the QUSB's web interface or telnet commands for a variety of control options.

The ZoomSHOT 20 SE is a reliable and affordable solution for your video capture needs. Record a lecture, conduct a video conference, or capture live events with outstanding performance and quality. Versatile features, outputs, and ease of use, make this system an excellent choice.

Additional ZoomSHOT 20 SE systems are available. For other outputs, see ZoomSHOT 20 SE QMini System or the ZoomSHOT 20 SE AVBMP for use with the AV Bridge MATRIX PRO (sold separately).

This Package Includes:

• ZoomSHOT 20 SE camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware
• Vaddio IR Shot Commander remote with 2x AAA batteries
• Quick-Connect USB Interface
• 24V power supply with AC cord set(s)

Specifications

Specifications for ZoomSHOT 20 SE QUSB System

Dimensions & Measurements

• Depth : Camera: 5.8 in (14.73 cm) QUSB: 6 in (15.24 cm)
• Height : Camera: 7 in (17.78 cm) QUSB: 1.72 in (4.37 cm)
• Max Distance Support : 150 ft (45.7 m)
• Operating Temperature : 32° to 104°F (0° to 40°C)
• Product Weight : Camera: 3.5 lbs (1.59 kg) QUSB: 1.4 lbs (0.64 kg)
• Width : Camera: 5.5 in (14 cm) QUSB: 8.38 in (21.27 cm)

Characteristics & Features

• 3rd Party Control : RS232
• Color : Black
• Control Method : Vaddio
• Control Method
  • IR Remote
  • RS232
• Estimated Room Size
  • Large Room
  • Medium Room
• Field of View : 63 Degrees Wide End
• Field of View Wide : Less than 70
• Focus System
  • Auto
  • Manual
• Gain
  • Auto
  • Manual
• Image Sensor Type : 1/2.8 Exmor CMOS
• Input Ports : EZ Power Video
• Invertible : Yes
• Manufacturer : Vaddio
• Minimum Illumination : 0.3 Lux (F1.6)
• OneLINK Compatibility : No
• Output Ports
  • HD YPbPr
  • HDMI
  • IP Streaming
  • USB 2.0
• Pan and Tilt Range
  • Tilt: +30· to -30°
  • Unlimited Pan
• Pan and Tilt Speed : Manual
• Pixels : 2.14 Megapixel (2.38 Total MP)
• Power Cord : US Cord
• Power Supply
  • 08A
  • 24VDC
• Power Type : EZ Power
• Preset Positions : 16
• PTZ Motors : No Motors Manual
• Quick-Connect Compatibility : QUSB
• Signal Type
  • HD YPbPr
  • HDMI
  • IP Streaming
  • RS 232
  • USB 2.0
• Solution Type : Camera with Extension
• Top Resolution : 1080p 60
• Tri-Sync Motion : No
• White Balance
  • Auto
  • Manual
• Zoom : 20x
• Zoom Range : Greater than 19X

Certifications & Warranties

• Certifications :
  • TAA
  • CE
  • FCC
• Warranty : 3 years
