Overview

RoboTRAK is an IR lanyard-based camera tracking system. It provides a smooth, accurate panning and tilting motion that follows the instructor as they walk around the presentation area of a classroom, eliminating the need for a camera operator.

Features

• Compatible with all RoboSHOT Cameras
• Up to 40 hours of lanyard operation between charges; 25 hours typical
• Web-based configuration

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Focus on teaching, not technology

RoboTRAK expands Vaddio’s technology leadership in automated presenter tracking systems for higher education, corporate training departments and teaching environments. Based on an IR tracking algorithm, an instructor simply wears a lanyard and the RoboTRAK follows the instructor. Paired with any RoboSHOT camera, the RoboTRAK sends its pan/tilt info to create production-worthy video – all without an operator.

Operational distance ranges from 12 to 50 feet (3.5 to 15 meters) and within the height range of 7 to 15 feet (2 to 4.5 meters). The RoboTRAK auto tracking camera pairs with any RoboSHOT camera. The RoboTRAK lanyard worn by instructors lasts up to 40 hours on a single battery charge. Optimized for large venue classrooms, RoboTRAK makes intelligent tracking easy.

Important Notes

RoboSHOT Video Camera is not included with system. RoboTRAK is compatible with all RoboSHOT cameras, except the RoboSHOT IW.

Because RoboTRAK is an infrared-based system, environments with intense heat sources or highly reflective surfaces (such as kitchens) pose special installation challenges. Consult your sales representative if you are considering a tracking system for this type of environment.

This Package Includes:

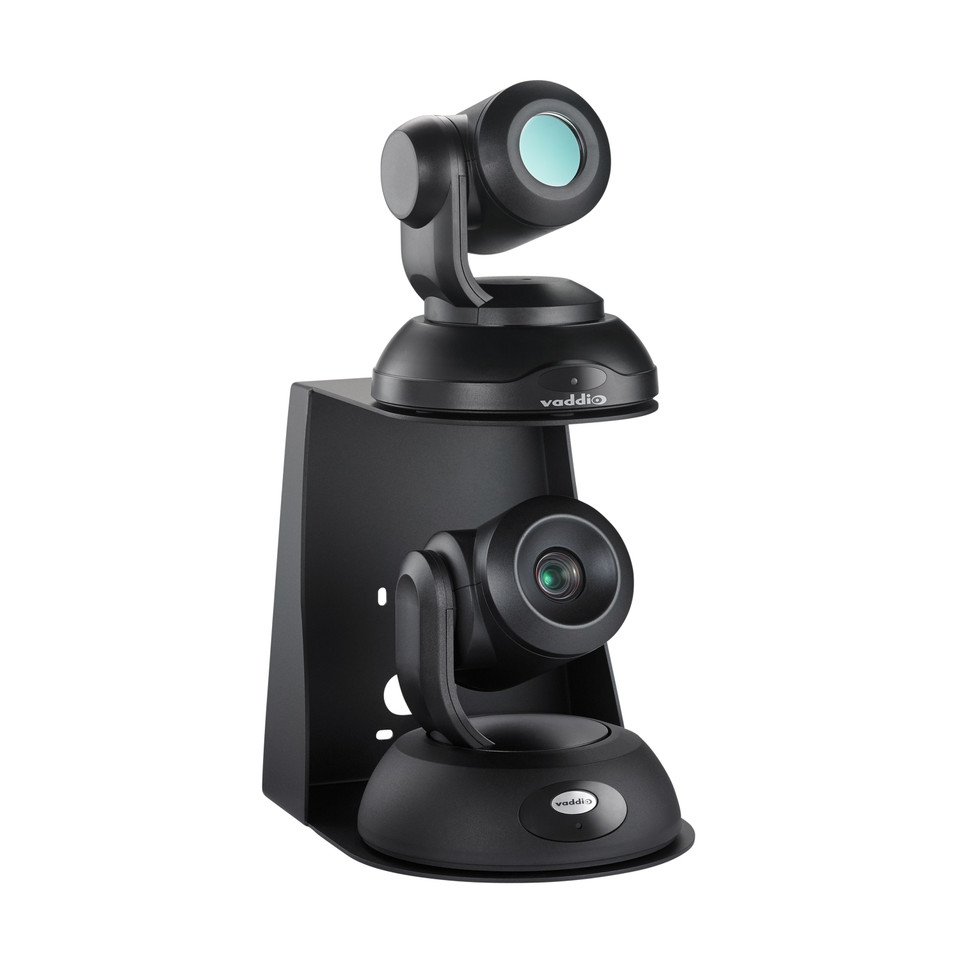

• RoboTRAK IR camera
• RoboTRAK Double Decker Wall Mount (black) with mounting hardware
• Mid-span PoE+ power injector with AC cord set(s)
• PoE Splitter (North America & Europe/UK only)
• 1' (0.3m) EIAJ-04 to EIAJ-04 power cable
• 1' (0.3m) cat-5e patch cable, black
• 10' (3m) cat-5e patch cable, black
• Dual Lock mounting strips
• RoboTRAK lanyard
• 6' (1.8m) USB cable, type A to micro B
• 1 qty snap-on cylindrical ferrite (for USB charging cable)
• USB wall charger
• Quick-start cards

Specifications

Dimensions & Measurements

• Depth: 5.5 in (14 cm)
• Height: 6.3 in (16 cm)
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Product Weight: 3 lbs (1.4 kg)
• Width: 6.1 in (15.5 cm)

Characteristics & Features

• 3rd Party Control
  • RS232
  • Telnet
• Browser-based User Interface for Remote Control: Built-in
• Color: Black
• Compatible With: Vaddio
• Control Method
  • IR Remote
  • RS232
  • Telnet
  • Web UI
• Control Type: Presenter Tracking
• OneLINK Compatibility: No
• Power Cord: US Cord
• Power Supply: PoE+
• Power Type: PoE+
• Quick-Connect Compatibility: No

Certifications & Warranties

• Certifications
  • CE
  • FCC
  • TAA
• Warranty: 3 years
