Overview

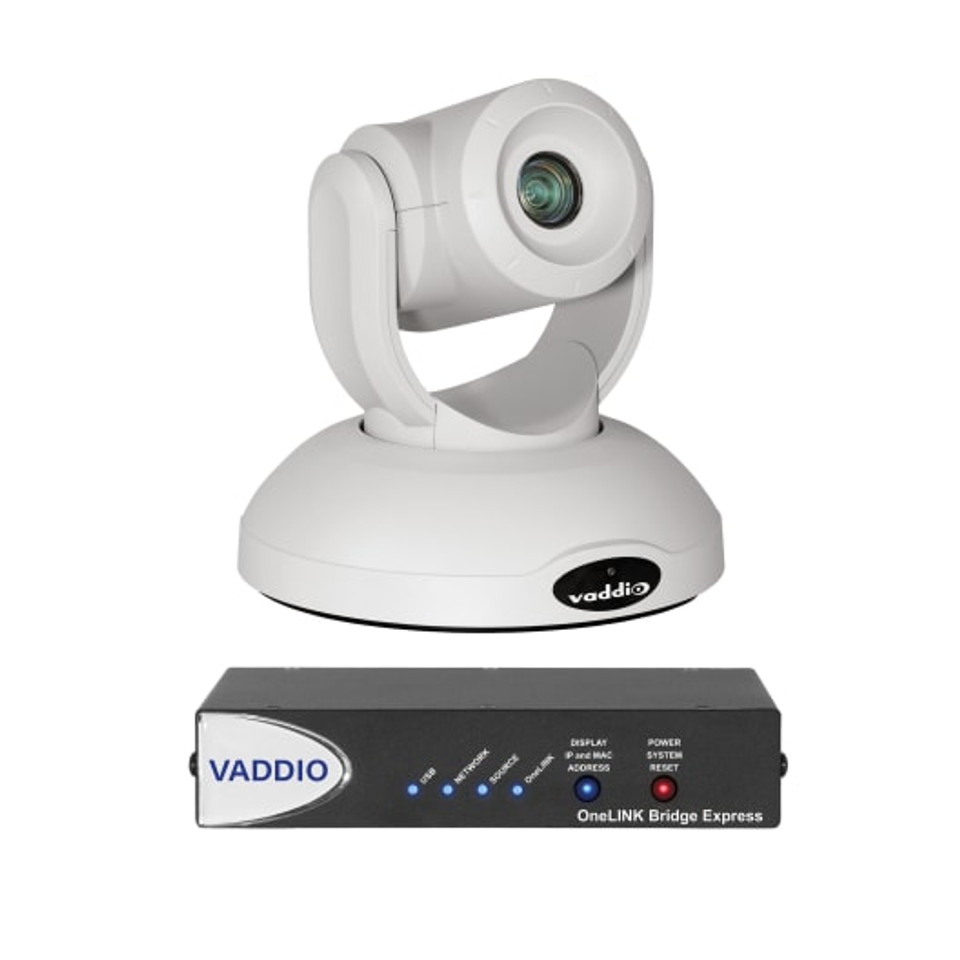

This system combines the RoboSHOT 40 UHD camera with the OneLINK Bridge Express to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 40 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.

Key Features:

• Back-illuminated 8.51 Megapixel, ultra-high-definition 1/2.5-type CMOS sensor delivers native 2160p/30 (3840 x 2160) video
• 20x optical zoom with 30x lossless zoom at 3840 x 2160. Achieve 40x zoom at full HD resolution
• Genlock signal for multi-camera synchronization
• Simple, clutter-free camera extension with HDBaseT technology
• Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
• Bridges audio and video for easy soft-client conferencing
• Simultaneous HDMI, USB 3.0, and IP Streaming outputs
• Configurable audio matrix with AEC
• Up to 1080p/60 resolution available over uncompressed USB

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Download the Deployment Tool >

The production-quality RoboSHOT 40 UHD PTZ camera provides brilliant 4K video footage for broadcasting or live streaming applications.

RoboSHOT 40 UHD offers 40x zoom, genlock capabilities, ultra-smooth motor movement, and outstanding image quality – all at a surprisingly competitive price for the entry-level broadcast PTZ camera market.

Designed with a genlock external sync port, the RoboSHOT 40 UHD camera provides accurate synchronization in multi-camera broadcast environments, plus phase compensation to fine-tune and adjust the genlock signal.

In addition to an incredible 30x zoom with 4K resolution at 30fps, it provides full high definition 40x zoom with 1080p/60fps performance with the latest advancements in digital super-resolution zoom.

With its 4K Exmor R CMOS image sensor, RoboSHOT 40 UHD offers more powerful image signal processing (ISP) – resulting in better light-gathering capabilities, incredible contrast, and sharp 4K video, even in dim lighting conditions. Expect exceptional performance in the presence of high-intensity spotlights seen in performance halls, live event venues, and night-time outdoor sporting events.

RoboSHOT 40 UHD offers silky-smooth, silent pan-tilt-zoom motion, thanks to Vaddio’s next-generation silent motors paired with Tri-Synchronous motion algorithms. Even at full zoom, the RoboSHOT 40 UHD moves with no jitter or bouncing.

OneLINK Bridge Express connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Microsoft Teams, Google Meet, and Zoom.

Along with the bridging capabilities, the system’s OneLINK Bridge Exress Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.

The RoboSHOT 40 UHD broadcast-quality PTZ camera is ideal for these applications:

• Broadcast TV, corporate broadcast, local TV stations, campus news
• Churches, houses of worship
• Live events
• Sporting events such as high school football or soccer
• Large auditoriums
• Concert halls

This Package Includes:

• RoboSHOT 40 UHD camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware
• Vaddio IR Remote Commander
• OneLINK Bridge Express Interface
• Quick-start cards
• 48V power supply with AC cord set(s)
• EZCamera RS-232 Control Adapter
• 4 qty 3-position phoenix-style connectors
• 6 ft. (1.8m) USB 3.0 cable, type A to B
• 12V power supply with AC cord set(s)
• EZCamera RS-232 Control Adapter

Specifications

Specifications for RoboSHOT 40 UHD OneLINK Bridge Express System

Dimensions & Measurements

• Depth: Camera: 5.5 in (14 cm)
• Distance: 328 in (833.1 cm)
• Height: Camera: 7.9 in (20.1 cm)
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Product Weight: 6 lbs (2.7 kg)
• Width: Camera: 8" in (20.3 cm)

Characteristics & Features

• 3rd Party Control
  • RS232
  • Telnet
  • Trigger
• Browser-based User Interface for Remote Control: Built-in
• Camera Type: PTZ
• Color: White
• Compatible With: Vaddio
• Control Method
  • IR Remote
  • Joystick
  • RS232
  • Telnet
  • Touch Screen
  • Web UI
• Estimated Room Size: Large Room
• Extension System: with OneLINK Bridge Express
• Extension Type: Camera
• Field of View: 70.2° Wide End to 2.05° Tele End
• Field of View Wide: Greater than 70
• Focus System
  • Auto
  • Manual
• Gain
  • Auto
  • Manual
• Image Sensor Type: 1/2.5-type Exmor R CMOS sensor, 4K
• Invertible: Yes
• Manufacturer: Vaddio
• Max Resolution: 2160p 29.97
• Minimum Illumination:
  • 6 Lux (F2.0)
  • 100+ Lux Recommended
• OneLINK Bridge adds
  • 328ft (100M) Power Video Control Extension
  • Audio Mixer
  • USB 3.0
• OneLINK Compatibility: Native
• OneLINK HDMI adds: 328ft (100M) Power Video Control Extension
• Output Ports
  • 3G SDI
  • HDbT
  • HDMI
  • IP Streaming
  • USB 3.0 Type B
• Pan and Tilt Range
  • Tilt: +90· to -30°
  • Pan: ±160°
• Pan and Tilt Speed: 0.35°/sec - 120°/sec
• Power Cord: US Cord
• Power Supply: PoE++
• Power Type:
• Local Power
• OneLINK
• PoE++
• Preset Positions: 16 Custom Home Position
• PTZ Motors: Silent BLDC Direct Drive Motors
• Quick-Connect Compatibility: No
• Signal Type
  • 3G SDI
  • HDbT
  • HDMI
  • IP Streaming
• Solution Type: Camera with Extension
• Special Features:
  • IP Streaming
  • With OneLINK Extender
• Switcher Control
  • IR Remote
  • RS232
  • Telnet
  • Web UI
• Top Resolution: 2160p 29.97
• Tri-Sync Motion: Yes
• Video SN Ratio: Greater than 50 dB
• White Balance
  • ATW
  • Auto
  • Indoor
  • Manual
  • One Push
  • Outdoor
• Zoom:
  • 30x at 4k/30
  • 40x at 1080p/60
• Zoom Range: Greater than 19X

Certifications & Warranties

• Certifications
  • CE
  • FCC
  • HD BaseT
  • TAA
• Warranty: 3 years
