Overview
Professional A/V presentation NDI (Network Device Interface) PTZ camera. Simultaneous HDMI and native NewTek NDI® streaming, with one of the lowest signal latencies in the industry. Recommended for broadcast applications, large meeting rooms, lecture halls, and houses of worship.
Features
- 30x Zoom
- 1/2.5-type Exmor R CMOS sensor
- 70.2° horizontal field of view
- Simultaneous HDMI and native NDI® streaming
New! Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

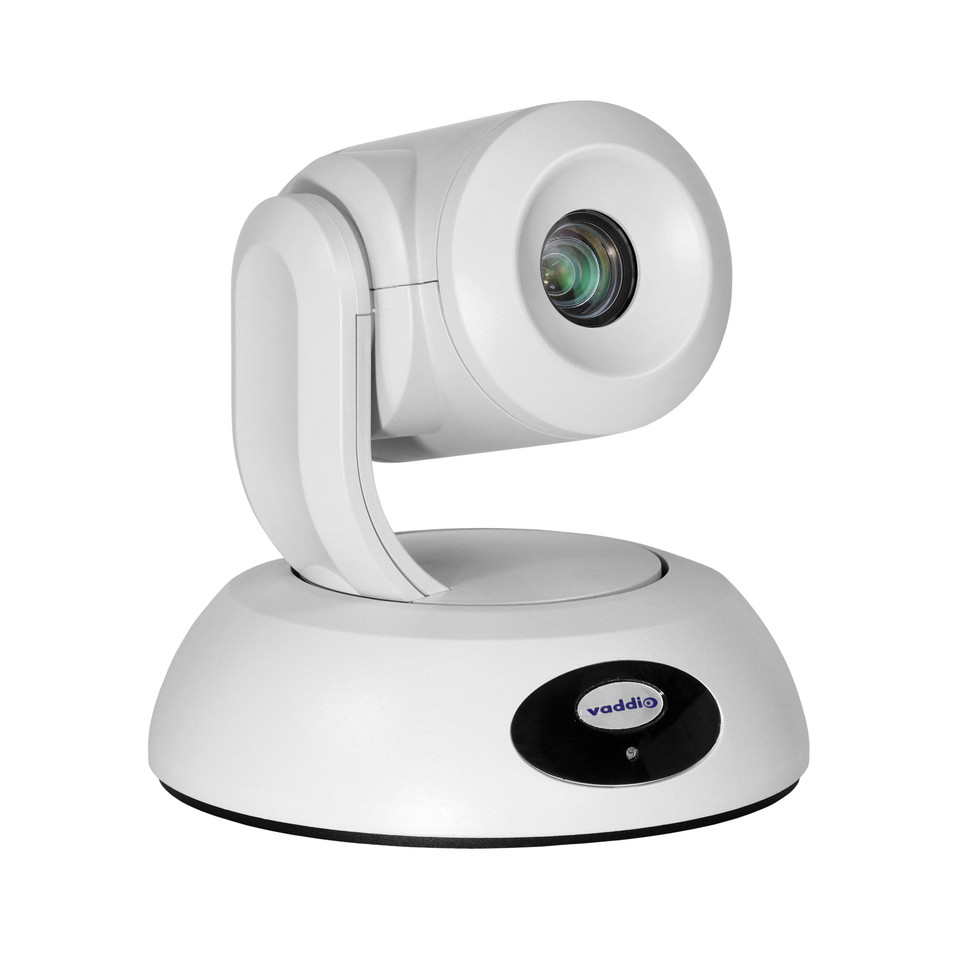

For PTZ video installations that require an NDI® signal, there is no better option than the RoboSHOT® 30E NDI® PTZ camera. This Elite Series camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming. Achieve plug and play simplicity by connecting the camera to the network and opening your NewTek control software. This IP-based NDI PTZ camera is instantly available for NDI control and streaming – without installing any additional drivers.
Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras offer enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed. The RoboSHOT 30E cameras have a 20x optical zoom and an additional 10x of IntelliZoomTM Image Processing, to zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. IntelliZoom image processing technology compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology, allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion. The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship. The RoboSHOT 30E NDI camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming. Video outputs include simultaneous HDMI and NewTek NDI streaming.
This Package Includes:
- RoboSHOT 30E NDI PTZ camera (white or black)
- Quick-start card
- PoE+ Midspan Power Injector
- Thin Profile Wall Mount (white or black) with mounting hardware and installation manual
- Vaddio IR Remote Commander
Specifications
Dimensions & Measurements
- Depth: 6.75
- Height: 6.94
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Product Weight: 4.85
- Width: 7.05
Characteristics & Features
- 3rd Party Control
- RS232
- Telnet
- Browser-based User Interface for Remote Control: Built-in
- Camera Type: PTZ
- Color: White
- Compatible With: Vaddio
- Control Method
- IR Remote
- Joystick
- NDI
- RS232
- Telnet
- Web UI
- Estimated Room Size
- Medium Room
- Large Room
- Extension System: with One LINK HDMI for Cisco
- Extension Type
- Camera
- Codec
- Field of View: 70.2° Wide End to 6.8° Tele End
- Field of View Wide: Greater than 70
- Focus System
- Auto
- Manual
- Gain
- Auto
- Manual
- Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
- Invertible: Yes
- Manufacturer: Vaddio
- Max Resolution: 1080p 60
- Minimum Illumination
- 1 Lux (F1.6)
- 100+ Lux Recommended
- OneLINK Compatibility: Native
- OneLINK HDMI adds
- 328ft (100M) Power Video Control Extension
- HDMI
- Output Ports
- HDMI
- IP Streaming
- Pan and Tilt Range
- Pan: ±150°
- Tilt: +90° to -30°
- Pan and Tilt Speed: 0.35°/sec - 120°/sec
- Pixels: 8.51 Megapixel (8.57 Total MP)
- Power Cord: US Cord
- Power Supply
- 36A
- 48VDC
- Power Type: OneLINK
- Preset Positions: 16 Custom Home Position
- PTZ Motors: Silent BLDC Direct Drive Motors
- Quick-Connect Compatibility: No
- Signal Type
- HDMI
- IP Streaming
- RS 232
- Solution Type: Camera with Extension
- Special Features: With OneLINK Extender
- Top Resolution: 1080p 60
- Tri-Sync Motion: Yes
- White Balance
- Auto
- Manual
- One Push
- Zoom: 12x
- Zoom Range: 10X to 19X
Certifications & Warranties
- Certifications
- CE
- FCC
- HDBaseT
- TAA
- Warranty: 3 years
