Overview

Professional A/V presentation NDI camera. Simultaneous HDMI and native NewTek NDI^® streaming, with one of the lowest signal latencies in the industry. Recommended for broadcast applications, conference rooms, and classrooms.

Features

• 12x Zoom
• 1/2.5-type Exmor R CMOS sensor
• 70.2° horizontal field of view
• Simultaneous HDMI and native NDI® streaming

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

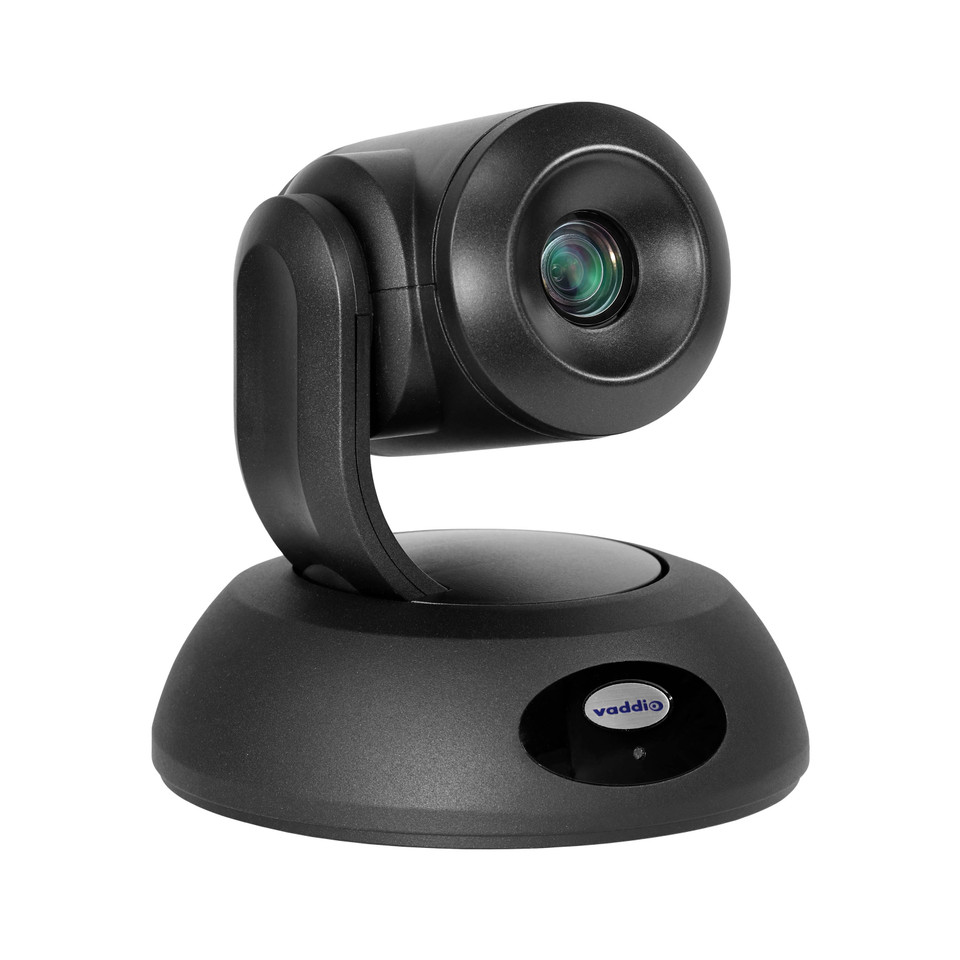

For PTZ video installations that require an NDI^® signal, there is no better option than the RoboSHOT^® 12E NDI^® camera. This Elite Series camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming. Achieve plug and play simplicity by connecting the camera to the network and opening your NewTek control software. This IP-based NDI video camera is instantly available for NDI control and streaming – without installing any additional drivers.

Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras offer enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology, allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are ideal for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

The RoboSHOT 12E NDI camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming.

Video outputs include simultaneous HDMI and NewTek NDI streaming.

This Package Includes:

• RoboSHOT 12E NDI camera (white or black)
• Quick-start card
• PoE+ Midspan Power Injector
• Thin Profile Wall Mount (white or black) with mounting hardware and installation manual
• Vaddio IR Remote Commander

Specifications

Dimensions & Measurements

• Depth: 6.75 in
• Height: 6.94 in
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Product Weight: 4.85 lbs (2.2 kg)
• Width: 7.05 in

Characteristics & Features

• 3rd Party Control
  • RS232
  • Telnet
• Browser-based User Interface for Remote Control: Built-in
• Camera Type: PTZ
• Color: Black
• Compatible With: Vaddio
• Control Method
  • IR Remote
  • Joystick
  • RS232
  • Telnet
  • Trigger
  • Web UI
• Estimated Room Size
  • Medium Room
  • Small Room
• Field of View: 70.2° Wide End to 6.8° Tele End
• Field of View Wide: Greater than 70
• Focus System
  • Auto
  • Manual
• Gain
  • Auto
  • Manual
• Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
• Invertible: Yes
• Manufacturer: Vaddio
• Max Resolution: 1080p 60
• Minimum Illumination
  • 1 Lux (F1.6)
  • 100+ Lux Recommended
• OneLINK Bridge adds

  • 328ft (100M) Power Video Control Extension
  • 3G SDI
  • Audio Mixer
  • HDMI
  • USB 3.0
• OneLINK Compatibility: No
• OneLINK HDMI adds
  • 328ft (100M) Power Video Control Extension
  • HDMI
• Output Ports
  • HDMI
  • NDI
• Pan and Tilt Range
  • Pan: ±150°
  • Tilt: +90° to -30°
• Pan and Tilt Speed: 0.35°/sec - 120°/sec
• Pixels: 8.51 Megapixel (8.57 Total MP)
• Power Cord: US Cord
• Power Supply: PoE+ Midspan Power Injector
• Power Type: PoE+
• Preset Positions: 16 Custom Home Position
• PTZ Motors: Silent BLDC Direct Drive Motors
• Quick-Connect Compatibility: No
• Signal Type
  • HDMI
  • IP Streaming
  • RS 232
  • USB 3.0
• Solution Type: Camera Only
• Top Resolution: 1080p 60
• Tri-Sync Motion: Yes
• White Balance
  • Auto
  • Manual
  • One Push
  • Zoom: 12x
• Zoom Range: 10X to 19X

Certifications & Warranties

• Certifications
  • CE
  • Certified for Barco ClickShare Conference
  • FCC
  • TAA
• Warranty: 3 years
