Overview

A cost-effective professional PTZ camera with flexible control and HD image quality.

Key Features:

• 10x zoom with 67° horizontal field of view
• Simultaneous HDMI and H.264 (RTSP or RTMP) IP streaming outputs
• Web interface for remote management and control

Request a Demo

Want to learn more about PrimeSHOT 10 HDMI? We'll connect you with a product expert to discuss your business needs and facilitate a product demo. Request a Demo

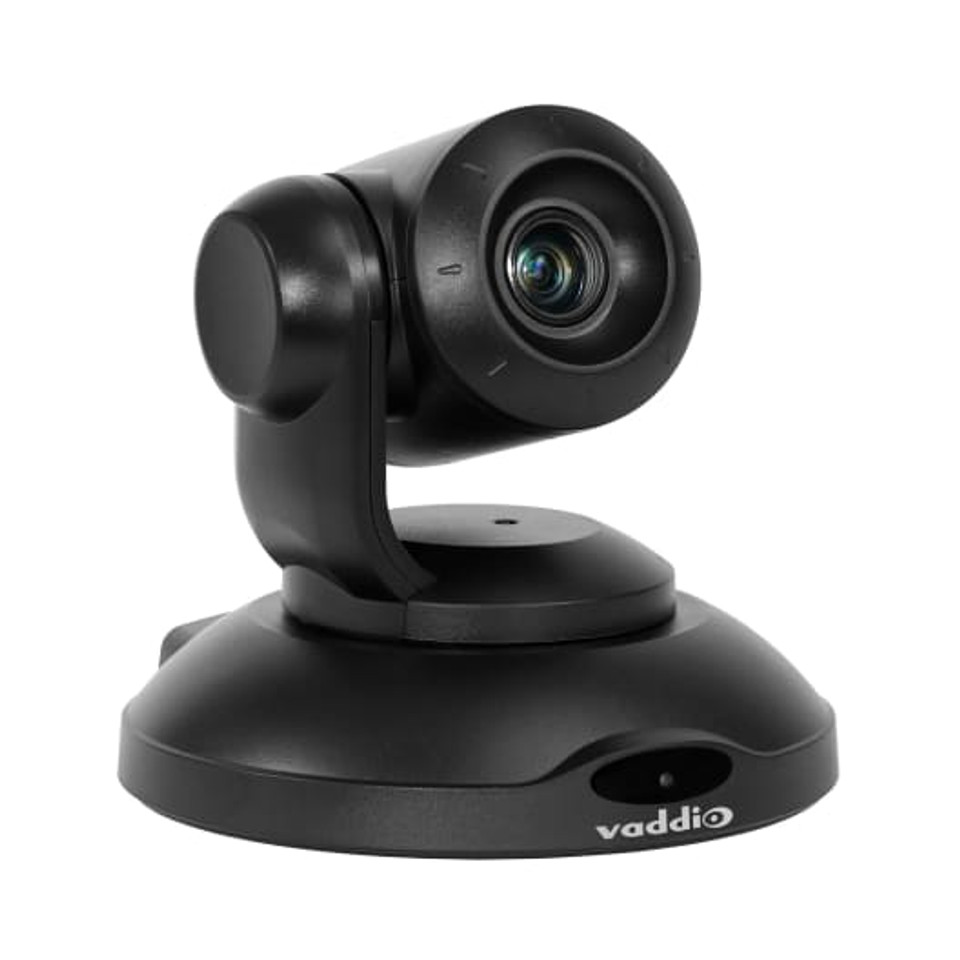

Vaddio’s PrimeSHOT 10 HDMI camera offers high-definition performance at an outstanding value. Ideal for meeting rooms, lecture halls and houses of worship, PrimeSHOT 10 HDMI provides outstanding low-light performance, and best-in-class 1080p image quality.

With simultaneous HDMI and IP streaming outputs, the PrimeSHOT 10 can broadcast the stream directly to your preferred live streaming client and send video to a local display for easy IMAG (image magnification). PrimeSHOT 10 HDMI features 10x optical zoom, plus an easy, intuitive web-based user interface for remote configuration, management and control. Customizable PTZ presets and controls make PrimeSHOT 10 perfect for rooms with multiple focus points.

Vaddio Deployment Tool

Easily deploy and manage hundreds of Vaddio devices with the free desktop application. Download Now

This Package Includes:

• PrimeSHOT 10 HDMI camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
• Vaddio IR Remote Master
• 12V power supply with AC cord set(s)
• Quick-start card

Specifications

Specifications for PrimeSHOT 10 HDMI

Dimensions & Measurements

• Depth : 5.5 in (14 cm)
• Height : 6.3 in (16 cm)
• Operating Temperature : 32° to 104°F (0° to 40°C)
• Product Weight : 3 lbs (1.4 kg)
• Width : 6.1 in (15.5 cm)

Characteristics & Features

• 3rd Party Control
  • RS232
  • Telnet
• Browser-based User Interface for Remote Control : Built-in
• Camera Type : PTZ
• Color : Black
• Control Method
  • IR Remote
  • Joystick
  • RS232
  • Telnet
  • Web UI
• Estimated Room Size
  • Medium Room
  • Small Room
• Extension System : without HDMI Extender
• Field of View : 67° Wide End to 7.6° Tele End
• Field of View Wide : Less than 70
• Focus System
  • Auto
  • Manual
  • Gain
  • Auto
  • Manual
• Image Sensor Type : 1/2.8 Exmor CMOS
• Invertible : Yes
• Manufacturer : Vaddio
• Minimum Illumination : 0.4 Lux (F1.6)
• OneLINK Compatibility : With OneLINK EZIM
• OneLINK HDMI adds : 328ft (100M) Power Video Control Extension
• Output Ports
  • HDMI
  • IP Streaming
• Pan and Tilt Range
  • Tilt: +90· to -30°
  • Pan: ±165°
• Pixels
  • Pan 165 degrees
  • Tilt 90 degrees to negative 30 degrees
• Power Cord : US Cord
• Power Supply
  • 12VDC
  • 0A
• Power Type : Local Power
• Preset Positions : 16 Custom Home Position
• PTZ Motors : Stepper Motors
• Quick-Connect Compatibility : No
• Signal Type
  • HDMI
  • IP Streaming
  • RS 232
• Solution Type : Camera Only
• Top Resolution : 1080p 60
• Tri-Sync Motion : No
• White Balance
  • Auto
  • Manual
• Zoom : 10x
• Zoom Range : 10X to 19X

Certifications & Warranties

• Certifications :
  • CE
  • FCC
  • TAA
• Warranty : 3 years
