Overview

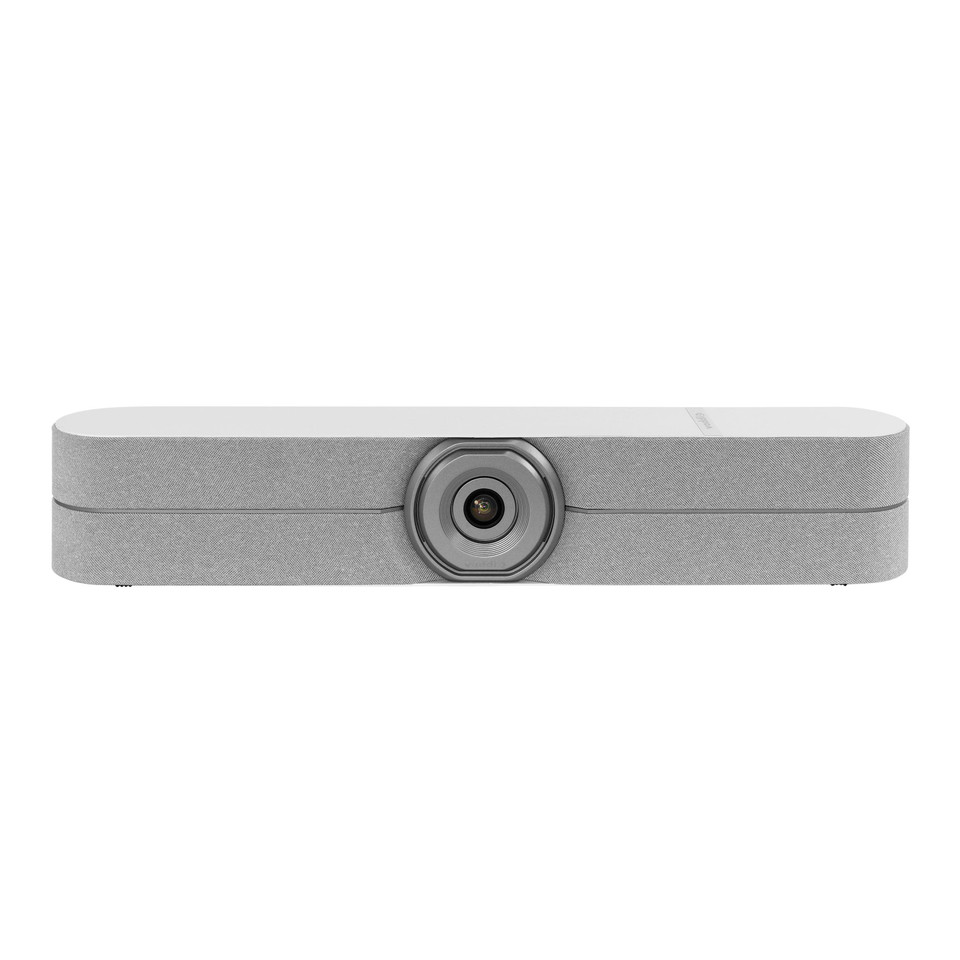

The HuddleSHOT All-in-One Conferencing Camera with integrated audio is designed especially for huddle spaces. It's the ideal camera solution for video collaboration sessions because its ultra-wide 125° horizontal FOV gets everyone in the picture, even in the smallest areas.

Features

• All-in-one solution with PoE+ power for flexible installation anywhere
• Full stereo speakers and two integrated microphones
• Remote management – browser-based user interface for remote configuration, management, and control
• Fixed camera with 2x digital zoom and 1080p/60 resolution

The HuddleSHOT All-in-One Conferencing Camera with integrated audio is designed especially for huddle spaces. It's the ideal camera solution for video collaboration sessions because its ultra-wide 125° horizontal FOV gets everyone in the picture, even in the smallest areas.

HuddleSHOT heightens the conferencing experience with crisp, natural 1080p/60 resolution. In addition, its clear audio quality enhances collaboration on both ends of the call. Two integrated speakers with wide dynamic range give conference room participants robust stereo sound. Two built-in microphones with echo cancellation pick up participant's voices from up to 12 feet (4 m) away. A red blinking LED indicator tells participants when the mics are muted. For larger huddle spaces, HuddleSHOT can be paired with an optional TableMIC or CeilingMIC microphone to extend the pickup range.

HuddleSHOT is easy to deploy, easy to manage and easy to use. For huddle room users who need meetings to consistently start on time without any hiccups, the HuddleSHOT's plug and play simplicity makes it extremely easy to use. For AV and IT managers, Vaddio’s intuitive browser-based user interface makes it simple to manage multiple HuddleSHOT cameras across multiple sites for easy enterprise deployments. It works with all major cloud-based conferencing applications including Zoom, Microsoft Teams, Skype for Business, Cisco WebEx, GoToMeeting, and others.

HuddleSHOT is aesthetically pleasing and can be placed on a table or mounted on a wall (wall mount kit is included). Legrand | AV offers other options for mounting HuddleSHOT to AV carts for a portable solution.

This Package Includes

• HuddleSHOT Camera (black or gray)
• Thin Profile Wall Mount (black or white) with mounting hardware
• HuddleSHOT Remote Control
• PoE+ Midspan Power Injector with AC cord set(s)
• 10 ft (3 m) cat-5 cable (black or white)
• 6 ft (1.8 m) USB 3.0 cable, type A to C
• 2 qty rubber feet for the bottom of HuddleSHOT unit if not wall-mounted
• Quick-start card

Specifications

Dimensions & Measurements

• Depth: 4.1
• Height: 3.5
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Width: 24

Characteristics & Features

• Audio Type
  • Microphone
  • Speaker
• Browser-based User Interface for Remote Control: Built-in
• Camera Type: Fixed
• Color: Gray
• Compatible With: Vaddio
• Control Method
  • Bluetooth Remote
  • Telnet
  • Web UI
• Estimated Room Size: Huddle Room
  Field of View
  • 110° at full dewarp
  • 125° normal
• Field of View Wide: Greater than 70
• Image Sensor Type: 1/1.9-type CMOS sensor
• Input Ports: EZMic
• Invertible: No
• Manufacturer: Vaddio
• Minimum Illumination: 0.15 Lux (F1.5)
• OneLINK Compatibility: No
• Output Ports
  • IP Streaming
  • USB 3.0 Type B
• Pixels: 2.12 Megapixel (2.42 Total MP)
• Power Cord: US Cord
• Power Supply: PoE+
• Power Type: PoE+
• Quick-Connect Compatibility: No
• Signal Type
  • IP Streaming
  • USB 3.1 Gen 1
• Solution Type: Camera Only
• Top Resolution: 1080p 60
• Tri-Sync Motion: No
• Zoom: 2x digital zoom
• Zoom Range: Less than 10X

Certifications & Warranties

• Certifications
  • CE
  • Certified for Barco ClickShare Conference
  • FCC
  • Mersive Solstice Pod Certified Partner Device
  • RCM
  • TAA
• Warranty: 3 years
