Overview

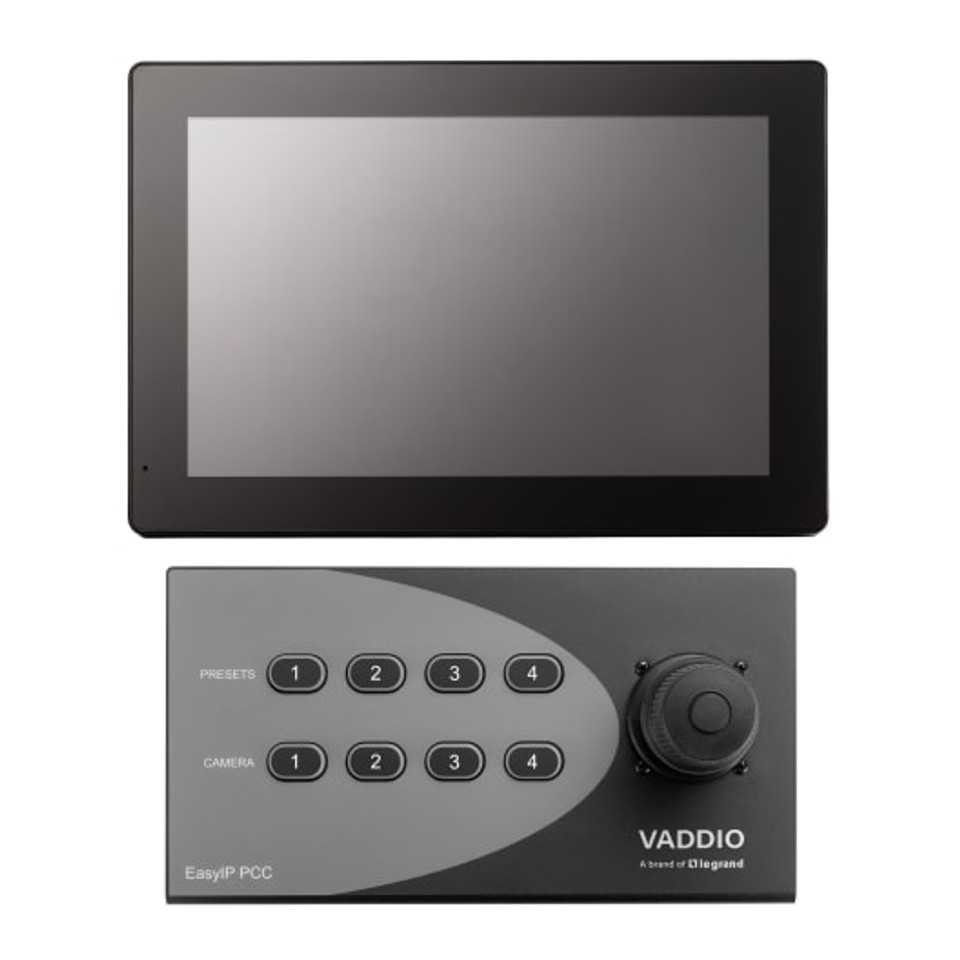

Vaddio’s EasyIP PCC, Precision Camera Controller, is a low-cost and ergonomic joystick for controlling up to four EasyIP cameras.

Key Features:

• Precise PTZ control with three-axis industrial-grade Hall effect joystick
• Control up to four EasyIP cameras with a user-defined home position plus four presets per camera
• Low-profile, weighted steel chassis with soft feet for stability on any surface
• HDMI output displays decoded IP stream video from the selected EasyIP camera
• PoE-powered, 10-inch color touchscreen controller with commercial-grade steel tabletop mount

Request a Demo

Want to learn more about EasyIP PCC? We'll connect you with a product expert to discuss your business needs and facilitate a product demo. Request a Demo

EasyIP PCC provides production-grade control for smaller studios or cost-conscious environments. Seamlessly integrate with your new or existing EasyIP system to control up to 4 EasyIP cameras. Pair it with the Vaddio Device Controller for expanded control features. The EasyIP PCC is PoE+ powered and can be used with a managed network switch like those from Luxul. A preconfigured EasyIP Switch can be purchased as a standalone item or as part of an EasyIP Base Kit.

EasyIP PCC elevates your video production with precision and ease while only requiring a minimal desktop footprint. The simple joystick enables users to master camera movements and add production value to any video event. The EasyIP PCC enables the configuration of a customized home position and up to four preset positions for each camera, which can be easily accessed through the controller's four programmable preset buttons and dedicated home button. This makes it simple to capture multiple areas at a variety of angles. Upgrade your productions to the next level with Vaddio’s latest EasyIP control technology.

The Vaddio Device Controller is a color touch panel designed to easily access web-based user interfaces of dozens of Vaddio connected devices like PTZ cameras, EasyIP peripherals, AV bridges and more. The 10-inch touch screen is PoE-powered, allowing flexible placement in your professional AV installations. The included desktop mount is designed to provide secure cable management, modern aesthetics and optimal viewing angles.

Vaddio Deployment Tool

Easily deploy and manage hundreds of Vaddio devices with the free desktop application. Download Now

This Package Includes:

• EasyIP PCC
• Vaddio Device Controller
• Vaddio Device Controller tabletop stand
• 3 ft (0.9 m) cat-5e cable, black
• Quick-start card

Specifications

Specifications for EasyIP PCC with Vaddio Device Controller

Dimensions & Measurements

• Depth : Joystick: 4.75 in (12 cm) Vaddio Device Controller screen: 1.1 in (2.9 cm)
• Height : Joystick: 5 in (12.7 cm) Vaddio Device Controller screen: 7 in (17.8 cm)
• Operating Temperature : 32° to 104°F (0° to 40°C)
• Width : Joystick: 9 in (22.9 cm) Vaddio Device Controller screen: 10.3 in (26 cm)

Characteristics & Features

• 3rd Party Control : Built in
• Color : Black
• Control Method : Vaddio
• Control Type
  • Camera Controllers
  • Joysticks
  • Touch Screen
• Input Ports : EasyIP
• Output Ports : HDMI
• Power Cord : US Cord
• Power Supply : PoE+
• Power Type : PoE+

Certifications & Warranties

• Certifications :
  • TAA
  • CE
  • FCC
• Warranty : 3 years
