Overview

The EasyIP 20 Base Kit is an AV-over-IP professional PTZ camera system in a box. It delivers professional image quality for UC soft clients and simplifies the BYOD (bring your own device) conferencing experience by moving videoconferencing onto the network.

This networked video capturing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked video capture and streaming in medium and large spaces.

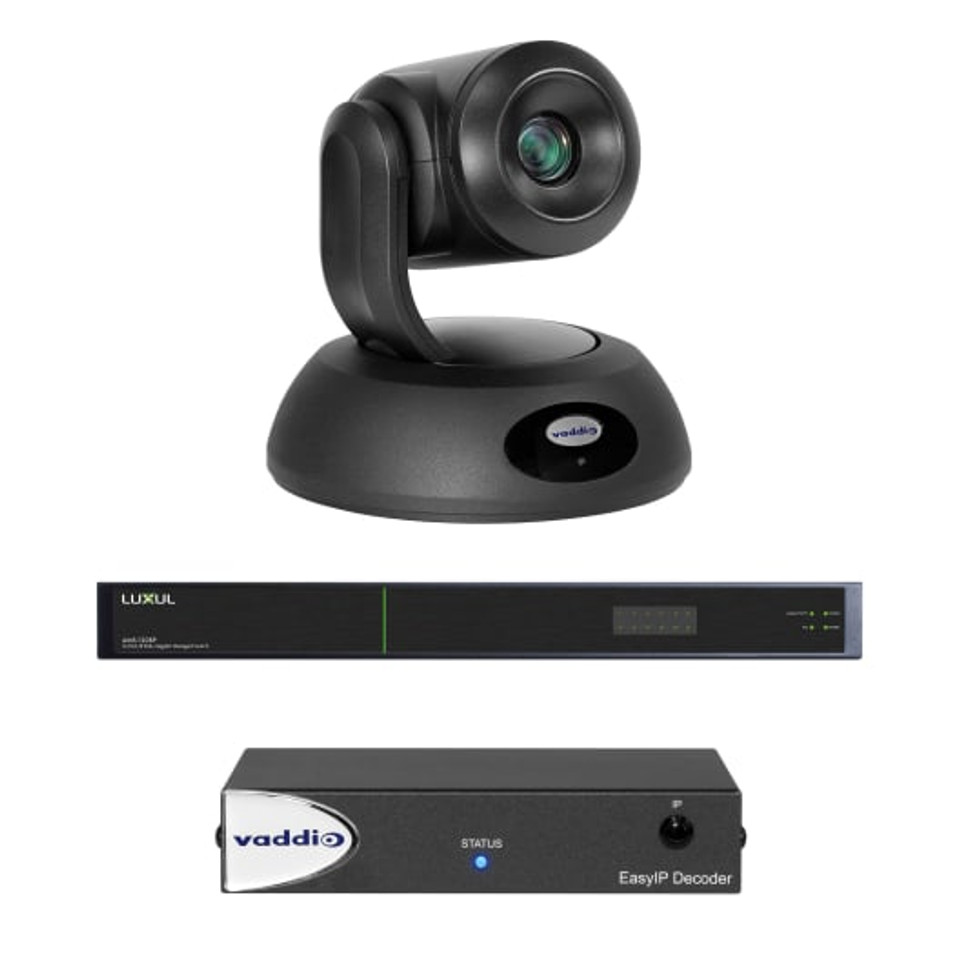

The EasyIP 20 Base Kit includes everything you need to get started with AV-over-IP video in one easy-to-order bundle including one EasyIP 20 Camera, one EasyIP Decoder and one EasyIP Switch.

Key Features

• Designed for flexible configuration in medium and large rooms
• One EasyIP (Network PoE+) and one HDMI video output
• 20x zoom, Tri-Synchronous Motion, Enhanced Wide Dynamic Range
• Provides USB 3.0 connection to leading web services: Teams/Skype for Business, Zoom, WebEx, BlueJeans, Google Meet and others

Request a Demo

Want to learn more about EasyIP 20 Base Kit? We'll connect you with a product expert to discuss your business needs and facilitate a product demo. Request a Demo

The EasyIP 20 Base Kit is an AV-over-IP professional camera system in a box. It delivers professional image quality for UC soft clients and simplifies the BYOD (bring your own device) conferencing experience by moving videoconferencing onto the network.

The EasyIP 20 Base Kit includes everything you need to get started with AV-over-IP video capture and streaming in one easy-to-order bundle.

Vaddio Deployment Tool

Easily deploy and manage hundreds of conference rooms with the free desktop application. Download Now

This Package Includes:

• EasyIP 20 PTZ Camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware
• Vaddio IR Remote Commander
• EasyIP Switch
• Rack mount kit (for mounting the EasyIP Switch)
• EasyIP Decoder
• Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
• 10 ft (3.05m) cat-5e snagless Cable, black
• 3 ft (0.91 m) cat-5e cable
• 6 ft (1.8 m) USB 3.0 cable
• 1 qty 4-position phoenix-style connector
• Power cord (for EasyIP Switch)
• Quick-start cards

Specifications

Specifications for EasyIP 20 Base Kit with Professional IP PTZ Camera

Dimensions & Measurements

• Operating Temperature : 32° to 104°F (0° to 40°C)

Characteristics & Features

• 3rd Party Control : Telnet
• Browser-based User Interface for Remote Control : Built-in
• Color : Black
• Control Method
  • Telnet
  • IR Remote
  • Joystick
  • RS232
  • Web UI
• Estimated Room Size
  • Medium Room
  • Large Room
• Field of View : 70.2° Wide End to 4.1° Tele End
• Field of View Wide : Greater than 70
• Focus System
  • Auto
  • Manual
• Gain
  • Auto
  • Manual
• Image Sensor Type : 1 25-type Exmor R CMOS sensor
• Invertible : Yes
• Manufacturer : Vaddio
• Max Resolution : 1080p 60
• Minimum Illumination : 100+ Lux Recommended
• OneLINK Compatibility : No
• Pan and Tilt Range
  • Pan: ±150°
  • Tilt: +90° to -30°
• Pan and Tilt Speed : 0.35°/sec - 90°/sec
• Pixels : 2.14 Megapixel (2.38 Total MP)
• Power Cord : US Cord
• Power Supply : PoE+
• Preset Positions : 16 Custom Home Position
• PTZ Motors : Stepper Motors
• Quick-Connect Compatibility : No
• Signal Type
  • EasyIP
  • HDMI
  • RS 232
• Solution Type : Conference Room System
• Top Resolution : 1080p 60
• Tri-Sync Motion : Yes
• White Balance
  • Auto
  • Manual
  • One Push
• Zoom : 20x
• Zoom Range : Greater than 19X

Certifications & Warranties

• Certifications :
  • CE
  • FCC
  • TAA
• Warranty : 3 years
