Overview

The EasyIP 10 Mixer Base Kit is an AV-over-IP classroom system in a box. Ideal for large classrooms and multi-camera applications, the EasyIP Mixer combines Dante audio sources and four Vaddio EasyIP cameras to deliver our easiest production system to date.

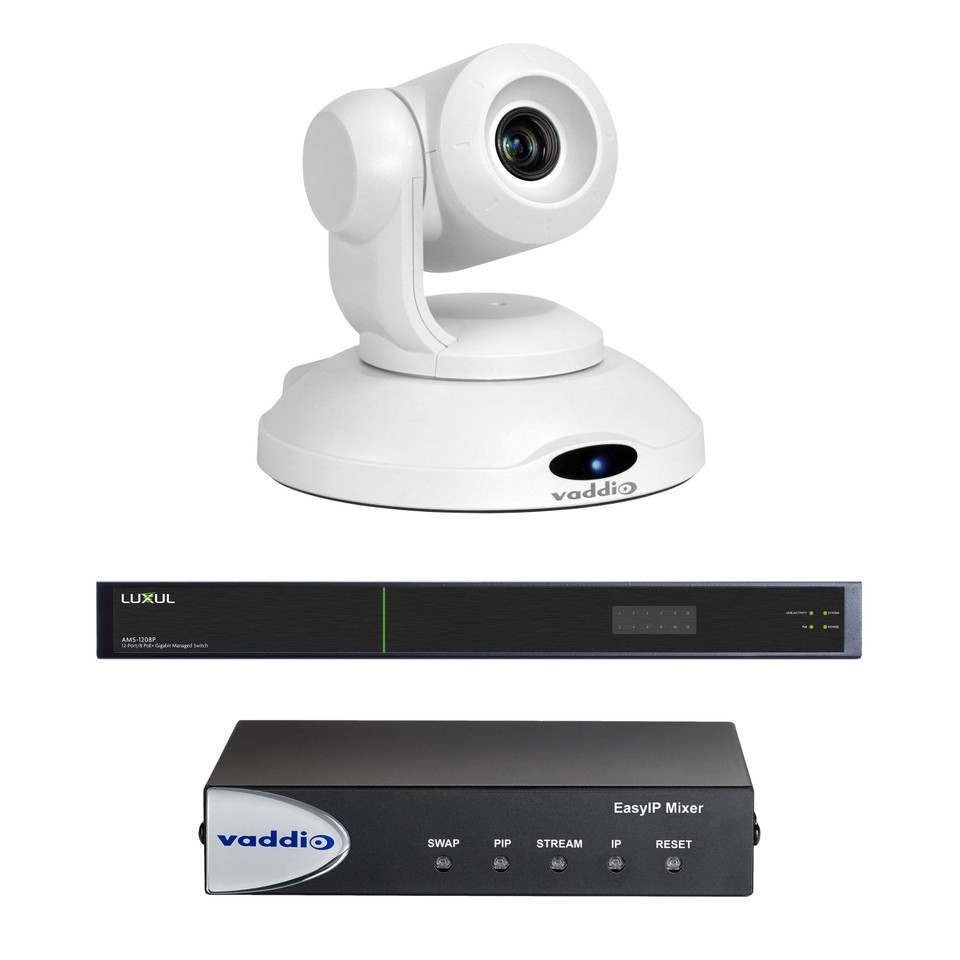

The Base Kit includes everything you need to start your AV-over-IP system design in one easy-to-order bundle, including one EasyIP 10 Camera, one EasyIP Mixer, and one EasyIP Switch.

Features

• Compact A/V switcher supporting four EasyIP Camera video feeds plus an HDMI source
• 4x4 Dante Audio matrix (10x10 cross-point audio matrix)
• Concurrent 1080p/60 USB 3.0 and HDMI output
• HD PTZ camera with 10x zoom, 67-degree horizontal field of view
• Preconfigured PoE+ managed switch provides power and network for EasyIP endpoints
• Flexible control options with serial, telnet, trigger, Vaddio Device Controller, and web control

Installing and commissioning multi-camera designs has never been easier! The EasyIP Mixer revolutionizes the complex classroom A/V system, replacing expensive HDMI cable runs with category cables and saving precious time with simple video and audio routing in our intuitive web-based user interface.

Pair the EasyIP Mixer with up to four EasyIP cameras located on the network for exceptional room coverage. The additional HDMI input allows you to connect a PC for content sharing on a platform that quickly switches between sources and delivers useful picture-in-picture (PIP) video streams. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to record to a local PC simultaneously and magnify the speaker video through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications – including UVC control of connected cameras.

The EasyIP Mixer has robust audio mixing capabilities as well. A 4x4 Dante I/O allows for scalable networked audio to meet the needs of any application. No complicated audio routing - it's easy to pair four EasyIP CeilingMIC D Dante microphones throughout the space. In larger rooms, select from a list of dozens of Dante audio products to choose the optimal audio pickup for each event. Install the EasyIP Mixer in your existing classroom by utilizing the 2-channel analog audio I/O.

Experience worry-free presentations with the automation features built into the EasyIP Mixer. Connect Vaddio trigger devices like the StepVIEW Mat to recall a library of macros built into the web-based user interface. Control PIP settings, video sources, camera position presets, and more with intuitive API integration for third-party applications and control hardware. Store graphic overlays such as a company logo or speaker name to bring production quality to everyday events.

The system is based around a PoE+ network switch like the EasyIP Switch, or one of Luxul's PoE+ managed switches. This network switch provides the power and control capabilities for the EasyIP Cameras and the EasyIP CeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. The whole system is commissioned in minutes with no expensive external processors, and no costly management software tools.

The EasyIP 10 Mixer Base Kit includes everything you need to start AV-over-IP conferencing in one easy-to-order bundle.

This Package Includes

• EasyIP Mixer
• Half-Rack mounting kit (for mounting the EasyIP Mixer into a full rack space)
• EasyIP 10 Camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware and installation guide
• Vaddio IR Remote Commander
• EasyIP Network Switch
• Rack Mount Kit (for mounting EasyIP Switch)
• 10 ft (3.05m) cat-5e snagless Cable, black
• 3 ft (0.9 m) cat-5 cable, black
• 6 ft (1.8 m) USB 3.0 cable, type A to B
• 6 qty 3-position phoenix-style connectors
• Power Cord (for EasyIP Switch)
• Quick-start cards

Specifications

EasyIP 10 Camera

• Outputs/protocols: EasyIP Streaming and HDMI
• Aspect ratio: 16:9, 3:2 and 4:3
• Resolutions/frame rates
  • FHD: 1080p/60/59.94/50/29.97/25,1080i/60/59.94/50
  • HD: 720p/60/59.94/50
• Streaming resolutions/frame rates: EasyIP streaming up to 1080p/60
• Image device: 1/2.8-Type Exmor CMOS Sensor
• Pixels: 2.14 million (effective)
• Lens/Zoom: 10x optical zoom, f=3.8mm to 38mm, F1.8 to F3.4
• Horizontal FOV: 67.0º wide end to 7.6º tele end
• Pan angle speed: ±165°, up to 90°/sec
• Tilt angle speed: +90, -30°, 0.35°/sec to 120°/sec
• Min. working distance: 10mm (wide), 1.0m (tele)
• Min. illumination: 100+ lux recommended
• Backlight compensation: On/off
• Aperture/detail: 16 steps
• Focusing system: Auto Focus / Manual Focus Mode
• Gain: Auto / Manual (0 to 33 dB)
• White balance: Auto, One-push, Manual
• S/N ratio: More than 50 dB
• Power: PoE+
• Remote management: IR Remote, web interface, Telnet and VISCA/RS-232 command APIs
• Enhanced Wide Dynamic Range: Yes
• Spotlight Compensation Mode: Yes
• Noise Reduction: Yes
• Presets: 16 + Custom Home
• Invertible: Yes
• Motors: Silent BLDC Direct Drive Motors
• Warranty: 2 years plus option for purchasing additional 3 years
• Weight: 3.0 lbs
• Height: 6.3"
• Width: 6.1"
• Depth: 5.5"
• Operating/storage temperature: 0°C to +40°C (32°F to 104°F)
• Operating/storage humidity: 20% to 80% RH, non-condensing

EasyIP Mixer

• USB Stream: Video and audio; up to 1080p/60 resolution (Full HD)
• Video Inputs: HDMI In, up to 1080p/60 resolution (Full HD), Pair with up to 4 EasyIP cameras
• HDMI Input: Video and audio; up to1080p/60 Resolution (Full HD)
• HDMI Output: Video and audio; up to1080p/60 Resolution (Full HD)
• Picture in Picture: Top/bottom, side by side, choice of overlay in one of four corners. Available split between EasyIP stream and HDMI source
• Audio Inputs: Stereo USB, Stereo HDMI, Two balanced mic/line-level inputs, 4 Dante Input Channels
• Audio Outputs: Stereo USB, Stereo HDMI, Two balanced line-level outputs, 4 Dante Output Channels
• Control: Browser-based user interface for configuration and administration; front panel controls for IP address toggle, power reset, and factory reset; Telnet and RS-232 for external control
• USB Audio (record, playback): 2 channel (UAC), 16-bit resolution, 48 KHz sample rate
• Audio Line Out: 4-pin Phoenix type terminal block, Impedance: 50 ohms, Frequency response 20Hz - 20KHz, THD + noise < 0.02%, Maximum output level +12 dBu differential audio
• Power Requirements: PoE+, 30W allocated, 14W typical use
• Phantom Power to Microphones: 48 VDC, 10 mA
• Height: 1.72 in.
• Width: 8.38 in.
• Depth: 6.0 in.
• Weight: 2.65 lb.
• Operating temperature: 32° to 104° F (0° to 40° C)
• Storage temperature: 23° to 140° F (-5° to 60° C)
• Humidity (relative): Operating and Storage: 20% to 80% non-condensing

Video Camera

• Video Camera Zoom: Pan Tilt Zoom
• Video Camera Type: All-in-One (Integrated System/Kits)
• Video Camera Features: Auto focus, Built-In Microphone, High Definition
• Resolution: 1080
• Interface: Ethernet, HDMI, USB
