Overview

The EasyIP 10 Base Kit is an AV-over-IP PTZ camera and conferencing system in a box. It delivers professional-quality conference feeds for UC soft clients and simplifies the BYOD conferencing experience by moving videoconferencing onto the network.

This networked videoconferencing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, boardrooms and training rooms alike.

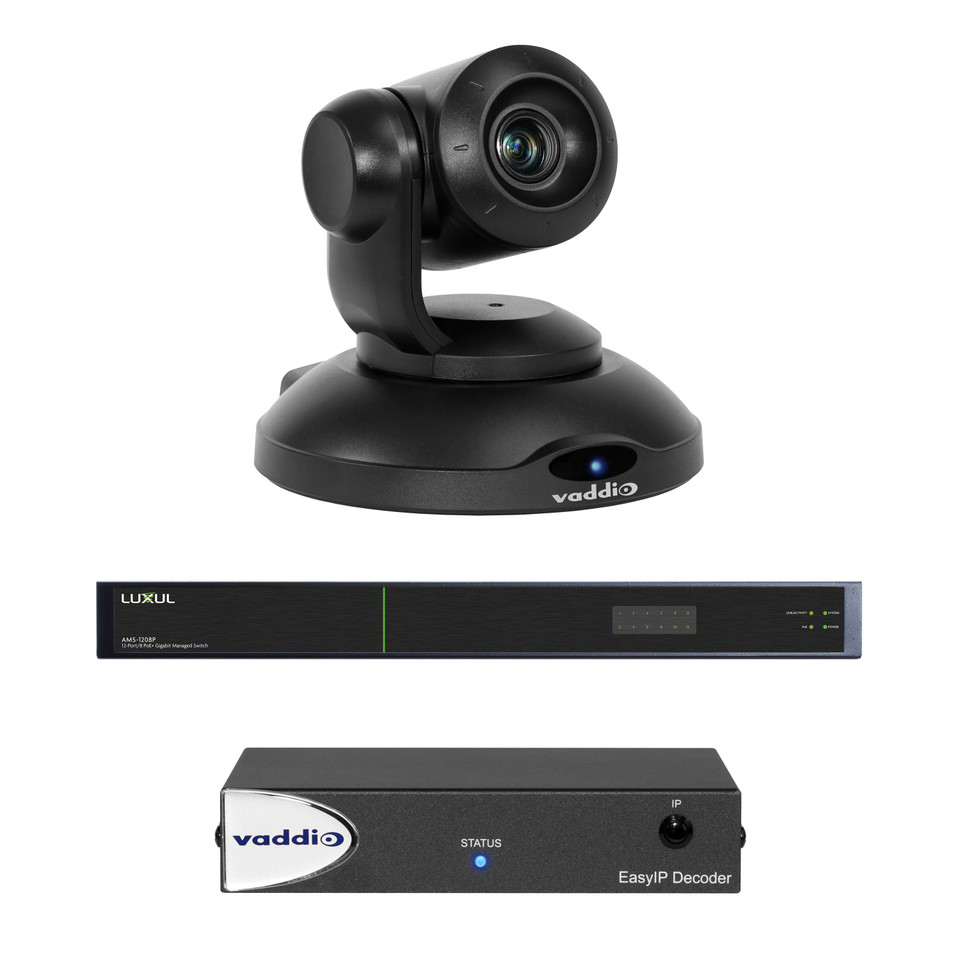

The EasyIP 10 Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle including one EasyIP Camera, one EasyIP Decoder and one Luxul network switch.

Features

• Designed for flexible configuration in small, medium and large conference rooms
• Ideal for spaces with room dividers or partitions
• Provides USB 3.0 connection to leading web services: Teams/Skype for Business, Zoom, WebEx, BlueJeans, Google Meet and others

Do you need more zoom? Do you need an HDMI signal to feed into an EasyIP Mixer PIP? Check out the EasyIP 20 Base Kit. If you still aren't sure, give us a call!

The EasyIP 10 Base Kit is an AV-over-IP PTZ camera and conferencing system in a box. It delivers professional-quality conference feeds for UC soft clients and simplifies the BYOD conferencing experience by moving videoconferencing onto the network.

The EasyIP 10 Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle including the IP PTZ camera.

This Package Includes:

• EasyIP 10 IP PTZ Camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware
• Vaddio IR Remote Commander
• EasyIP Switch
• Rack mount kit (for mounting the EasyIP Switch)
• EasyIP Decoder
• Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
• 10 ft (3.05m) cat-5e snagless Cable, black
• 3 ft (0.91 m) cat-5e cable
• 6 ft (1.8 m) USB 3.0 cable
• 1 qty 4-position phoenix-style connector
• Power cord (for EasyIP Switch)
• Quick-start cards

Specifications

Dimensions & Measurements

• Operating Temperature: 32° to 104°F (0° to 40°C)

Characteristics & Features

• Camera Type: PTZ
• Color: Black
• Compatible With: Vaddio
• Estimated Room Size
  • Medium Room
  • Small Room
• Field of View: 67° Wide End to 7.6° Tele End
• Field of View Wide: Greater than 70
• Focus System
  • Auto
  • Manual
• Gain
  • Auto
  • Manual
• Image Sensor Type: 1 28 Exmor CMOS
• Invertible: Yes
• Manufacturer: Vaddio
• Max Resolution: 1080p 60
• Minimum Illumination: 0.4 Lux (F1.6)
• OneLINK Compatibility: No
• Pan and Tilt Range
  • Tilt: +90· to -30°
  • Pan: ±165°
• Pan and Tilt Speed: 0.35°/sec - 90°/sec
• Pixels: 2.14 Megapixel (2.38 Total MP)
• Power Cord: US Cord
• Power Supply: PoE+
• Power Type: PoE+
• Preset Positions: 16 Custom Home Position
• PTZ Motors: Stepper Motors
• Quick-Connect Compatibility: No
• Signal Type: EasyIP
• Solution Type: Camera Only
• Top Resolution: 1080p 60
• Tri-Sync Motion: No
• White Balance
  • Auto
  • Manual
  • One Push
• Zoom: 10x
• Zoom Range: 10X to 19X

Certifications & Warranties

• Certifications
  • CE
  • FCC
  • TAA
  • UL Listed
• Warranty: 3 years
