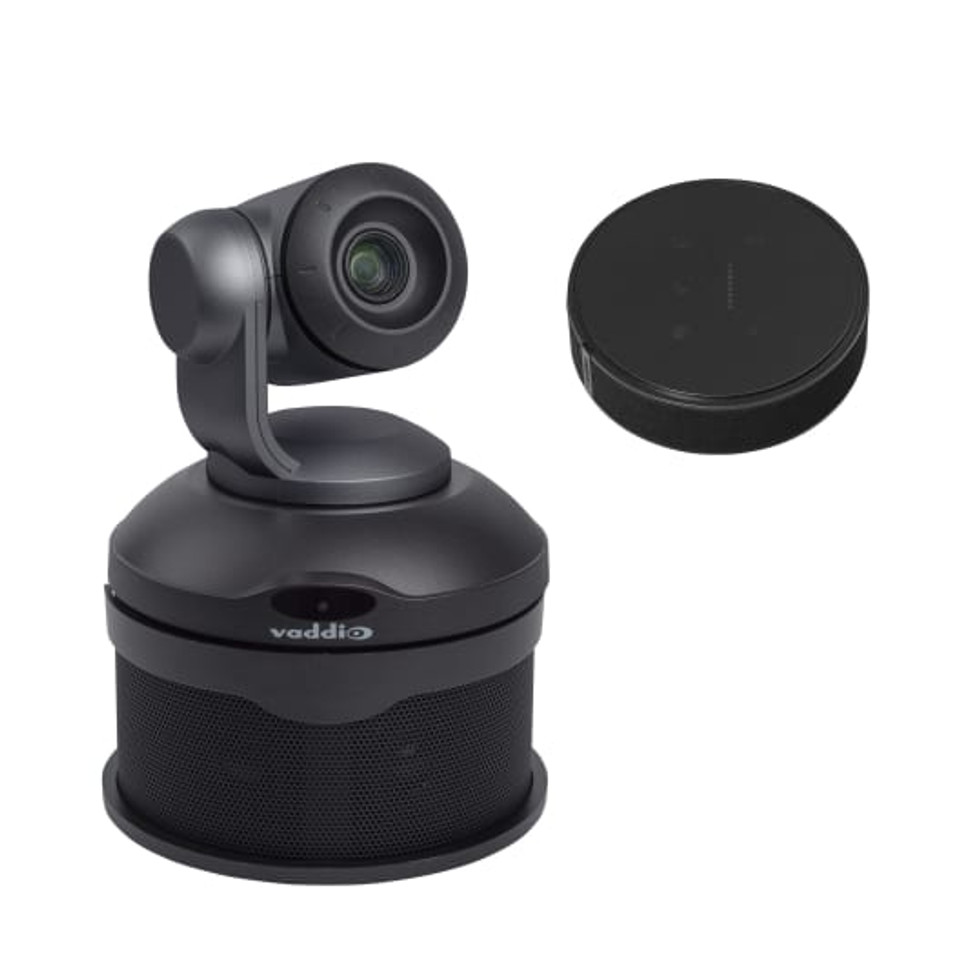

ConferenceSHOT AV Bundle – TableMIC 1

Ideal for video conferencing rooms, ConferenceSHOT AV integrates a PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect up to two microphones and an external speaker directly to the camera. Easy plug and play functionality with all major UCC soft clients such as Microsoft Teams, Google Meet and Zoom.

This Package Includes:

• ConferenceSHOT AV camera (black)
• ConferenceSHOT AV speaker (black)
• 1 qty TableMIC microphone (black)
• Quick-start cards
• PoE+ Midspan Power Injector with AC cord set(s)
• Thin Profile Wall Mount (black) with mounting hardware and installation manual
• Vaddio IR Remote Commander with audio controls
• Speaker mounting rail with gasket and mounting screws
• 5 in (16.5 cm) Power/Audio cable with phoenix-style connectors
• 6 ft (1.8 m) USB 3.0 cable, type A to B
• 10 ft (3 m) cat-5 cable, black
• 25 ft (7.6 m) cat-5 cable, black
• 1 qty 4-position phoenix-style connector

This conference room AV system is ideal for small to medium-sized videoconferencing rooms, choose color, power cord, speaker and microphone options to build the perfect ConferenceSHOT AV bundle for your space.

 Powerful: ConferenceSHOT AV integrates a 10x zoom HD PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphones and an external speaker to the camera. The ConferenceSHOT AV is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Microsoft Teams, WebEx and Google Meet.

 Simple: ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC – just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.

 Enterprise-Class: ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.

This USB-based solution makes it easy for your organization to collaborate using your preferred videoconferencing software like Microsoft Teams, Google Meet and more.

ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam-based technology offerings.

Specifications

Specifications for ConferenceSHOT AV HD Conference Room System

Dimensions & Measurements

• Depth : Camera: 5.5” (145 mm) Speaker: 6.75" (171 mm)
• Height : Camera: 6.3” (163 mm) Speaker: 3.63" (92 mm)
• Operating Temperature : 32° to 104°F (0° to 40°C)
• Product Weight : 5.07 lbs (2.3 kg)
• Width : Camera: 6.1” (155 mm) Speaker: 7.25" (184 mm)

Characteristics & Features

• 3rd Party Control : Telnet
• Audio Type
  • Microphone
  • Mixers and IO Devices
  • Speaker
• Browser-based User Interface for Remote Control : Built-in
• Camera Type : PTZ
• Color : Black
• Compatible With : Vaddio
• Control Method
  • IR Remote
  • Joystick
  • Telnet
  • Touch Screen
  • Web UI
• Estimated Room Size
  • Medium Room
  • Small Room
• Field of View : 74° Wide End to 7.6° Tele End
• Field of View Wide : Greater than 70
• Focus System
  • Auto
  • Manual
• Gain
  • Auto
  • Manual
• Image Sensor Type : 1 28 Exmor CMOS
• Input Ports
  • EasyMIC
  • Network
  • USB 30
• Invertible :Yes
• Manufacturer : Vaddio
• Max Resolution : 1080p 60
• Microphones : One Table Microphone
• Minimum Illumination : 0.4 Lux (F1.6)
• OneLINK Compatibility : No
• Output Ports
  • Audio
  • IP Streaming
  • Network
  • USB 3.0 Type B
• Pan and Tilt Range
  • Tilt: +90· to -30°
  • Pan: ±162°
• Pan and Tilt Speed : 0.35°/sec - 90°/sec
• Pixels : 2.14 Megapixel (2.38 Total MP)
• Power Cord : US Cord
• Power Supply : PoE+
• Power Type : PoE+
• Preset Positions : 16 Custom Home Position
• PTZ Motors : Stepper Motors
• Quick-Connect Compatibility : No
• Signal Type
  • Audio
  • IP Streaming
  • USB 2.0
  • USB 3.0
• Solution Type : Conference Room System
• Speaker : ConferenceSHOT AV Speaker
• Top Resolution : 1080p 60
• Tri-Sync Motion : No
• White Balance
  • Auto
  • Manual
  • One Push
• Zoom : 10x
• Zoom Range : 10X to 19X

Certifications & Warranties

• Certifications :
  • CE
  • Certified for Barco ClickShare Conference
  • FCC
  • TAA
  • UL Listed

• Warranty : 3 years
