Overview

Professional conferencing camera designed for compatibility with soft conferencing clients. Simultaneous IP (H.264) and uncompressed USB 3.0 streaming. Recommended for huddle and conference rooms, training rooms, and classrooms that require a wide angle of view. (Previous name: ClearSHOT 10 USB)

Features

• Exmor 1/2.8-Type 2.14 Effective Megapixels (Native 1080p/60) high-speed, low noise CMOS image sensor
• Intuitive browser-based web interface

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

The Vaddio ClearSHOT 10 USB is now named the Vaddio ConferenceSHOT 10 - same great product, now part of our new ConferenceSHOT Product Family.

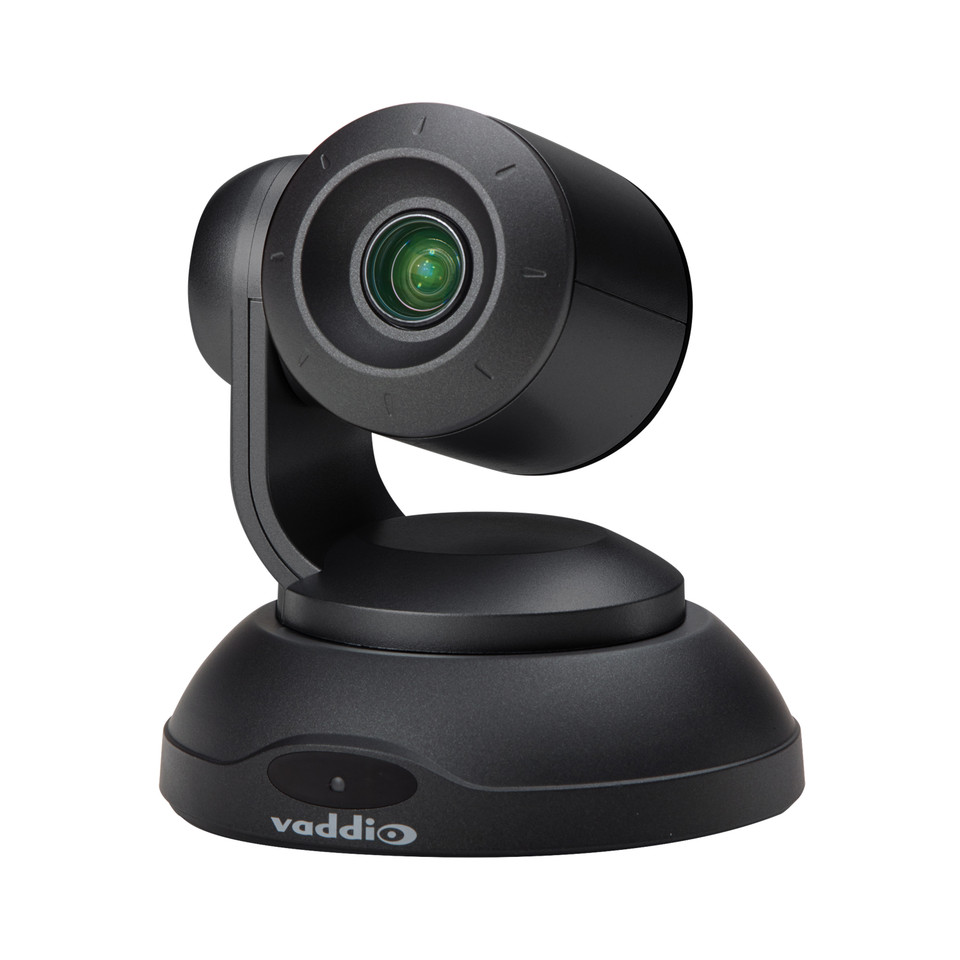

The Vaddio ConferenceSHOT 10 Camera is an Enterprise-Class, high definition PTZ conferencing camera with high-quality imaging, exceptional color reproduction and truly fine detail. It's a significant step up in performance from current webcam-based technology offerings. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera offers integrators, dealers and end users with an impressive improvement over other USB conferencing cameras available today.

The latest generation Exmor™ 1/2.8”, 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP, produces vivid and realistic color with super-fast, razor-sharp and transparent auto-focus and iris routines.

ConferenceSHOT 10 has an Ethernet port for IP (H.264) streaming and a browser-based user interface, which allows the user to control the camera’s functions with an internal web page with any browser from anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression. RTMP streaming is available to stream directly from the ConferenceSHOT 10 to popular platforms like YouTube, Facebook, and others.

With a 74-degree wide horizontal field-of-view and 10X optical zoom, ConferenceSHOT 10 provides great flexibility in a variety of applications including small to medium-sized conference and huddle rooms, as well as corporate, healthcare, government and education environments.

This Package Includes

• ConferenceSHOT 10 camera (black or white)
• Quick-start card
• 12V power supply with AC cord set(s)
• Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
• Vaddio IR Remote Commander
• 6' (1.8m) USB 3.0 cable, type A to B
• EZCamera RS-232 Control Adapter

Specifications

ConferenceSHOT 10 Camera

• Color: Black
• Certifications: CE Approved, FCC Approved, UL Listed, TAA Compliant
• Product Width: 6.1"
• Product Height: 6.3"
• Product Depth: 5.5"
• Product Weight: 3 lbs
• Signal Type: USB 3.0, IP-Streaming
• Power Type: Local Power
• Output Ports: USB 3 Type B
• Zoom: 10x
• Field of View: 74° Wide End to 7.6° Tele End
• Estimated Room Size: Small Conference Room
• Minimum Illumination: 100+ Lux Recommended
• Browser-based User Interface for Remote Control: Built-in
• Control Method: Web UI, Telnet, RS-232 and IR Remote
• OneLINK Compatibility: No
• PTZ Motors: Stepper Motors
• Tri-Sync Motion: No
• Pan and Tilt Range: Pan: ±165°, Tilt: +90· to -30°
• Pan and Tilt Speed: +90° -30°, up to 90°/sec
• Image Sensor Type: 1/2.8 Exmor CMOS
• Pixels: 2.14 Megapixel (2.38 Total MP)
• Top Resolution: 1080p/60
• Invertible: Yes
• Focus System: Auto, Manual
• Gain: Auto, Manual
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Preset Positions: 16 + Custom Home Position
• White Balance: Auto, Manual, One-Push
• Warranty: 2 years
• Power Supply: 12 VDC, 3.0 A
• Quick-Connect Compatibility: No

Video Camera

• Video Camera Zoom: Pan Tilt Zoom
• Video Camera Type: PTZ Camera
• Video Camera Features: Auto focus, High Definition
• Resolution: 1080
• Interface: Ethernet, Serial, USB
