Overview

The RoboSHOT 12 is perfect for small to medium sized conference rooms, training rooms or classrooms and provides imcomparable support for applications espicially in UC conferencing, videoconferencing, distance learning, lecture capture, telepresence and more!

One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion, a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.

The Quick-Connect™ CCU enables the adjustment of AWB, red and blue gain, brightness, OPWB, gamma, chroma, detail, iris and gain controls with a simple press of a buttom on the Quick-Connect CCU. These controls deliver a more accurate representation of the image that is being captured and the ability to color match and shade multiple cameras. User-defined adjustments can be stored on three Scene-Store buttons.

The Quick-Connect CCU delivers high-quality HD Video, power and control over three Cat. 5 cables up to 500 feet without loss of video quality or latency. Outputs include analog component YPbPr, HDMI and HD-SDI for extreme flexibility in system design and integration. All outputs are live simultaneously.

Features

• HDMI, HD-SDI and HD YPbPr Outputs
• Power/Video/Control on three Cat-5’s up to 500’
• AWB, red and blue gain, brightness, OPWB, gamma, chroma, detail, iris and gain controls

Includes

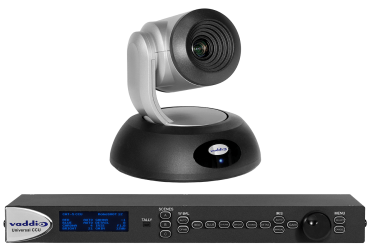

• RoboSHOT 12 camera
• Thin Profile Wall Mount (black) with mounting hardware and installation manual
• Vaddio IR Remote Commander
• Quick-Connect Universal CCU Cat-5 Interface (QCCU)
• 36V power supply with AC cord set(s)
• 2 qty rack ears
• Quick-Start Guides
• EZCamera RS-232 Control Adapter
