Overview
Joystick controller for extremely smooth and accurate pan, tilt and zoom control.
Features
- Red and blue gain, detail, iris with adjustable gain controls
- Large focus wheel for fast, accurate manual focus
- Seven discrete auto-sensing RS-232C camera control ports
- External control capability (RS-232 and Tally)
- Link port for linking to second Precision Camera Controller up to 500 feet
- 14 presets per camera

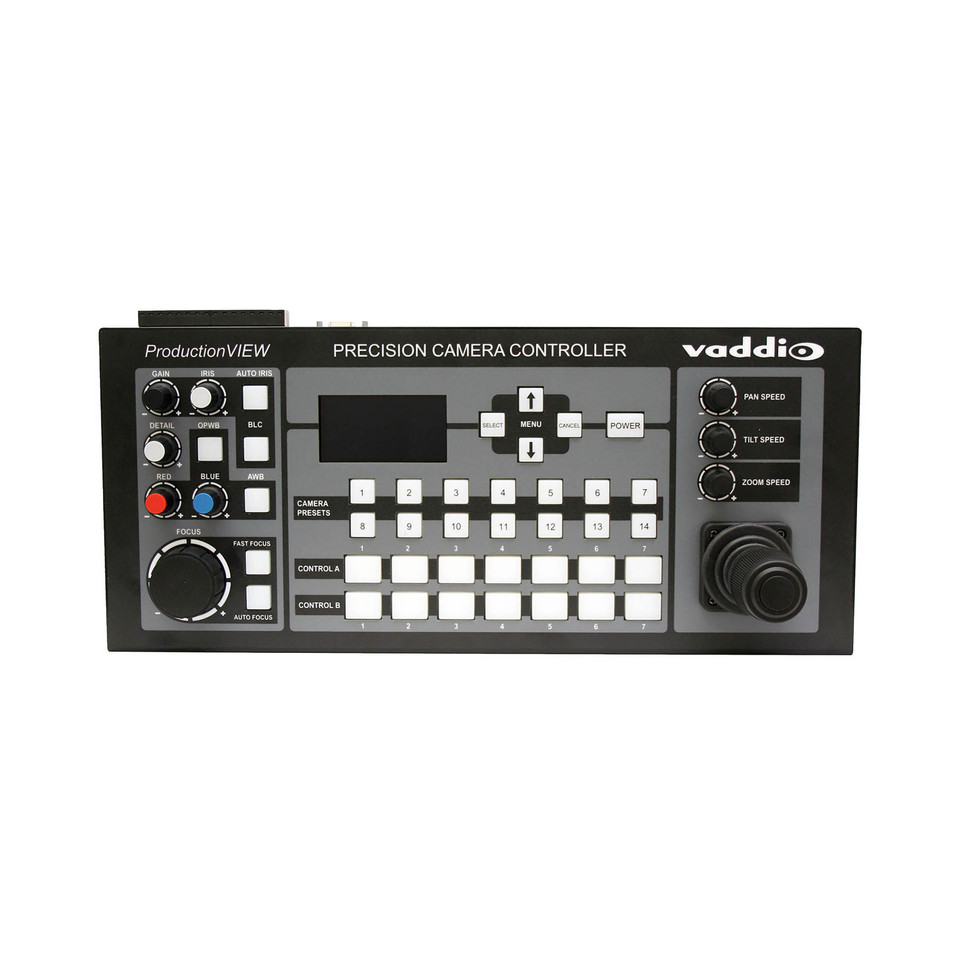

The Precision Camera Controller boasts a broadcast-quality joystick designed for smooth and accurate pan, tilt and zoom control, as well as CCU image control functionality for controlling up to seven PTZ cameras. By integrating CCU control into the system users can control red and blue gain, detail, and iris with adjustable gain with any Vaddio™ PTZ camera. One-push white balance (OPWB), auto white balance (AWB) and auto iris are also available to those who desire a more automated image control system. The CCU control surface gives system users real-time knobs and buttons to control each of these functions.
Designed to control up to seven PTZ cameras, the Precision Camera Controller can be used as a stand-alone device or in conjunction with a variety of video switchers or mixers on the market today. In addition, two Precision Camera Controllers can be linked together to allow the user to control all cameras from either controller.
This Package Includes
- ProductionVIEW Precision Camera Controller
- 18V power supply with AC cord set(s)
- Quick-start card
Specifications
Dimensions & Measurements
- Depth: 7
- Height: 3.75
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Product Weight: 5
- Width: 16
Characteristics & Features
- 3rd Party Control: RS232
- Color: Black
- Control Method; RS232
- Control Type
- Camera Controllers
- Joysticks
- OneLINK Compatibility: No
- Power Cord: US Cord
- Power Supply
- 18VDC
- 2.75A
- Power Type: Local Power
- Quick-Connect Compatibility: No
- Special Features: Camera Control
Certifications & Warranties
- Certifications
- CE
- FCC
- TAA
- Warranty: 3 years
