Overview

Cost-effective professional A/V camera with HDMI extender. Simultaneous HDMI, S-Video, and IP (H.264) streaming. Recommended for large meeting rooms, training rooms, lecture halls and houses of worship.

Key Features:

• Horizontal field of view 55° (wide) to 3° (tele) at 20x
• Simultaneous HDMI, S-Video and IP streaming outputs
• Administrative control via web interface
• HDMI extender sends PrimeSHOT 20 HDMI signal up to 230 ft when using a Cat6a cable

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Vaddio’s PrimeSHOT 20 HDMI HD PTZ camera offers high definition performance at an outstanding value. With flexible output options like HDMI and S-video, the PrimeSHOT can replace existing standard definition pan tilt zoom cameras or be used as an initial system upgrade. PrimeSHOT 20 HDMI features 20x optical zoom, plus an easy, intuitive web-based user interface for remote configuration, management and control.

Confidently deploy the PrimeSHOT across the entire enterprise with Vaddio’s standard IP management and streaming capabilities. Ideal for large meeting rooms, lecture halls and houses of worship, PrimeSHOT 20 HDMI provides outstanding low-light performance, and best in class 1080p image quality.

This Package Includes:

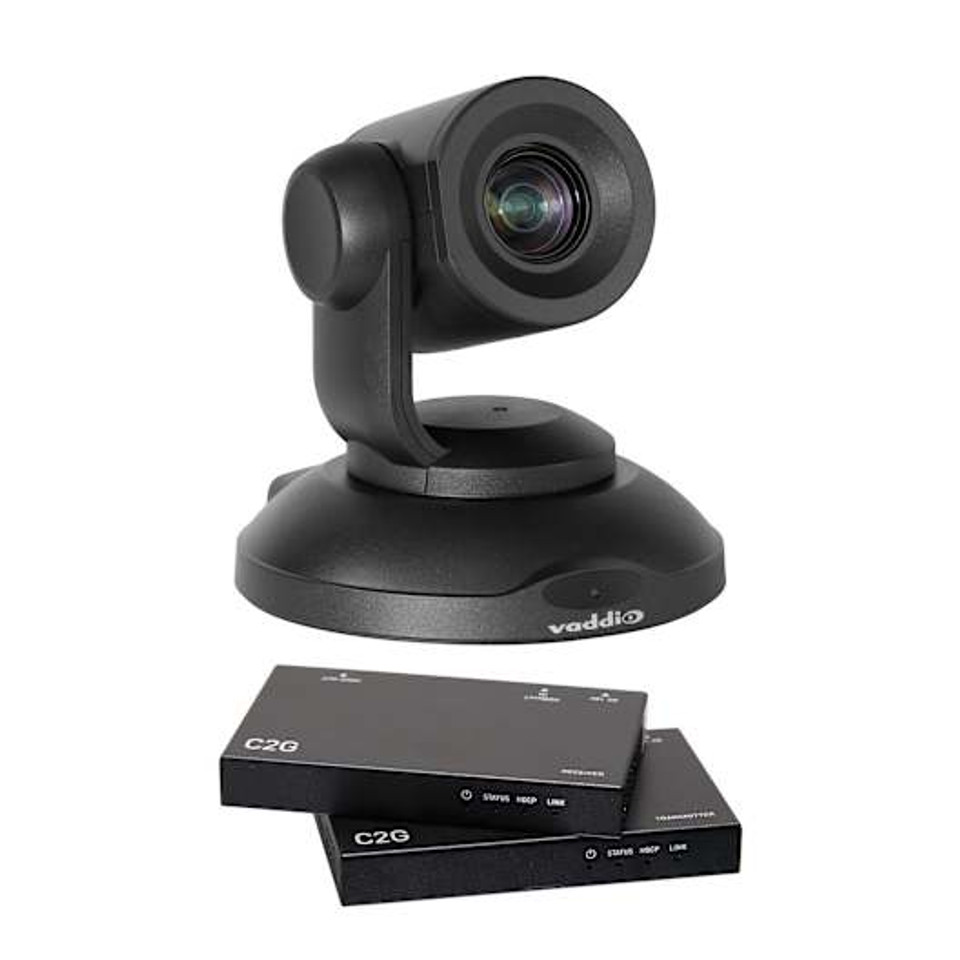

• PrimeSHOT 20 HDMI camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
• Vaddio IR Remote Commander
• C2G HDMI Extender, transmitter unit
• C2G HDMI Extender, receiver unit
• 12V power supply with AC cord set(s) for camera
• 18VDC power supply with AC cord set(s) for extender
• 1 ft (0.3 m) high-speed HDMI cable
• Quick-start card

Specifications

Specifications for PrimeSHOT 10 HDMI with HDMI Extender

Dimensions & Measurements

• Depth : 6.5 in (16.5 cm)
• Height : 7.25 in (18.4 cm)
• Operating Temperature : 32° to 104°F (0° to 40°C)
• Product Weight : 3.4 lbs (1.5 kg)
• Width : 7.1 in (18 cm)

Characteristics & Features

• 3rd Party Control : RS232 & Telnet
• Browser-based User Interface for Remote Control : Built-in
• Camera Type : PTZ
• Color : Black
• Control Method
  • IR Remote
  • Joystick
  • RS232
  • Telnet
  • Web UI
• Estimated Room Size
  • Medium Room
• Extension System : with HDMI Extender
• Field of View : 55.4° Wide End to 2.9° Tele End
• Field of View Wide : Less than 70
• Focus System
  • Auto
  • Manual
• Gain
  • Auto
  • Manual
• Image Sensor Type : 1 3 CMOS
• Invertible : Yes
• Manufacturer : Vaddio
• Minimum Illumination : 0.5 Lux (F1.6)
• OneLINK Compatibility : With OneLINK EZIM
• OneLINK HDMI adds : 328ft (100M) Power Video Control Extension
• Output Ports
  • HDMI
  • IP Streaming
  • S Video
• Pan and Tilt Range
  • Tilt: +90· to -30°
  • Pan: ±160°
• Pixels
  • 12 Megapixel (2.38 Total MP)
• Power Cord : US Cord
• Power Supply
  • 12VDC
  • 0A
• Power Type : Local Power
• Preset Positions : 16 Custom Home Position
• PTZ Motors : Stepper Motors
• Quick-Connect Compatibility : No
• Signal Type
  • HDMI
  • IP Streaming
  • RS 232
  • S video
• Solution Type : Camera with Extension
• Top Resolution : 1080p 60
• Tri-Sync Motion : No
• White Balance
  • Auto
  • Manual
• Zoom : 20x
• Zoom Range : Greater than 19X

Certifications & Warranties

• Certifications :
  • TAA
  • CE
  • FCC
• Warranty : 3 years
