Overview

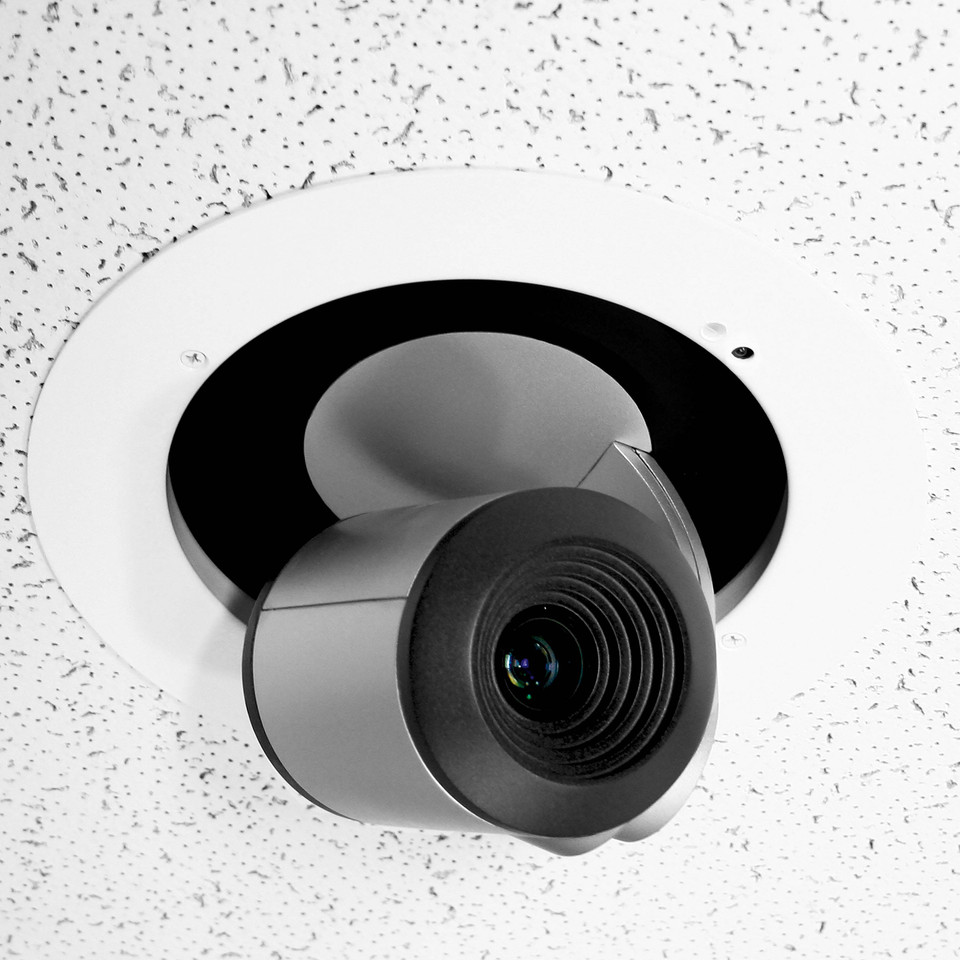

Vaddio’s IN-Ceiling, Half-Recessed Enclosure is an attractive, easy to install, partially recessed and inverted, PTZ camera mounting system. The IN-Ceiling Half-Recessed Enclosure is compatible with RoboSHOT 12/12E and 30/30E, EasyIP 20, and Logitech Rally cameras

Features

• Metal back box and white metal trim ring included
• Active IR circuit in trim ring and enclosure powered by some camera systems or PEM
• Tile support brace included
• Camera not included

Vaddio’s IN-Ceiling Half-Recessed Enclosure is an attractive, easy to install, partially recessed and inverted, pan/tilt/zoom camera mounting system for Vaddio RoboSHOT 12/12E and 30/30E, EasyIP 20, and Logitech Rally cameras.

The enclosure features a sealed, recessed, metal ceiling camera enclosure with a one-piece tile support brace, white trim ring, and mounting hardware kit. Inside the white trim ring is an IR receiver with an IR emitter board, powered by compatible Quick-Connect Interfaces or Power Extension Module (PEM). This ensures full compatibility with the Vaddio IR Remote. The PEM is required if the mounted camera does not include a two cable Quick-Connect.

This Package Includes:

• Metal back box with internal IR emitter and 1 qty camera mounting screw
• Back box lid with collar ring and 4 qty mounting screws
• White trim ring with IR receiver and 2 qty mounting screws
• IR receiver cable with connectors
• Felt IR shield ring (black)
• 1 qty 2' (0.6m) cat-5e cable
• Tile support brace
• 3/4" clamp down conduit connector (romex type)
• Quick-start card

Specifications

Characteristics & Features

• Application: Ceiling
• Color: White
• Compatible With: Vaddio

Certifications & Warranties

• Certifications
  • CE
  • FCC
  • TAA
• Warranty: 3 years
