Overview

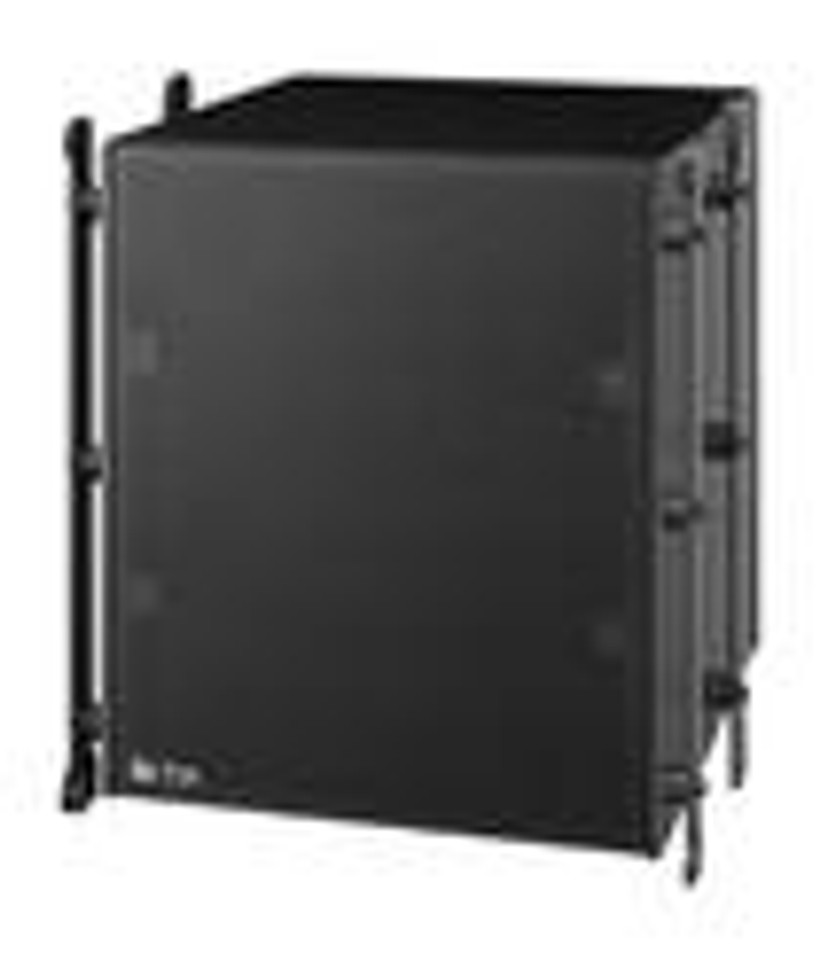

The SR-C15BWP Sub-woofer system is designed to be used in conjunction with the SR-C8LWP or SR-C8SWP Line array speaker. Recommended digital speaker processor is the DP-SP3 (option).
Specifications
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous program: 450 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 93 dB (1 W, 1 m) |
| Frequency Response | 40 - 400 Hz (when recommended parameters are applied by the optional DP-SP3) |
| Crossover Frequency | 125 Hz (when recommended parameters are applied by the optional DP-SP3) |
| Speaker Component | 38 cm (15") cone-type |
| Connected Cable | Direct cable withdrawal from internal speaker: φ8.6 mm (φ0.34"), conductor cross section: 1.25 m㎡, 4-core cable, 3 m (9.84 ft) |
| Operating Temperature | -10℃ to +50℃ (14゜F to 122゜F) |
| Water Protection | IPX4 |
| Finish | Enclosure: Plywood, black, urethane coating Front grille: Punched stainless steel, black, paint |
| Dimensions | 526.6 (W) × 594.8 (H) × 550 (D) mm (20.73" × 23.42" × 21.65") |
| Weight | 41 kg (90.39 lb) |
| Accessory | M8 connection bolt …4 |
| Option | Rigging frame: SR-RF8WP Digital speaker processor: DP-SP3 |
