Overview

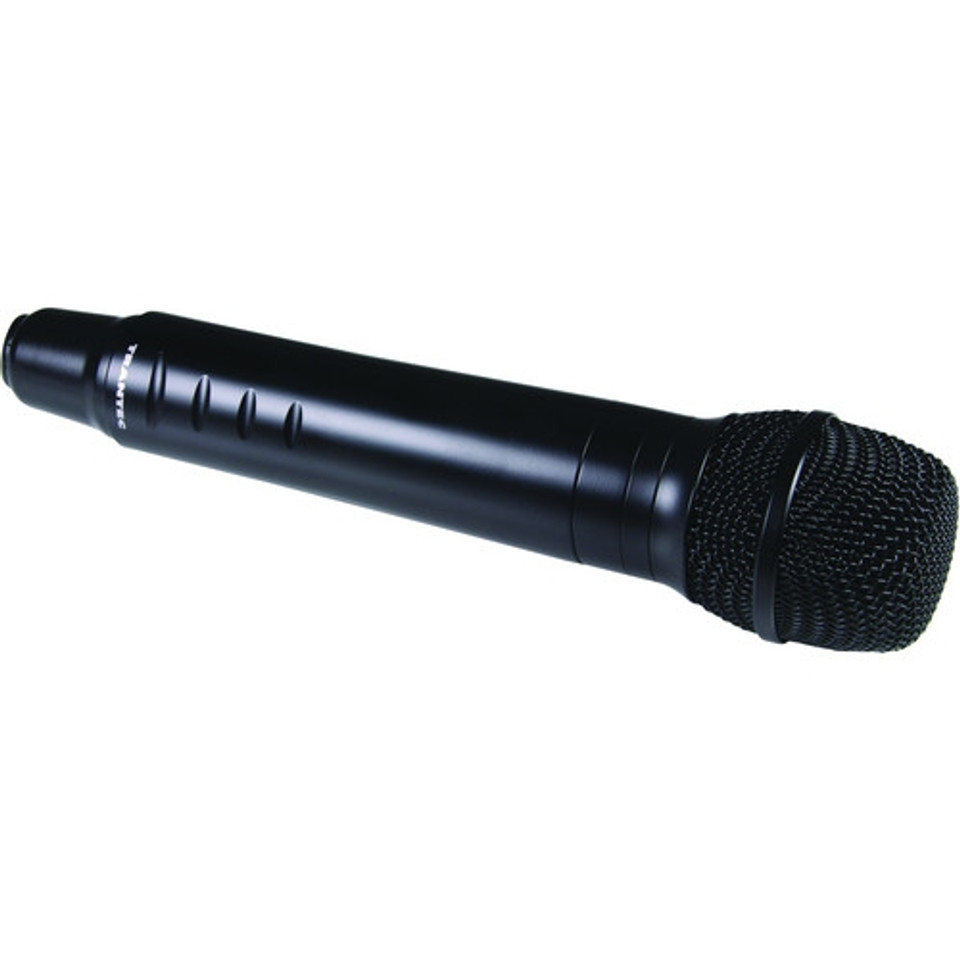

The Trantec S5.3-HCX UHF Wireless Handheld Condenser Transmitter from Toa Electronics is a professional handheld condenser microphone suitable for a wide range of theater and broadcast applications. The frequency band of this microphone is H2 at 576 - 606 MHz. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. The unit runs using single AA-cell battery operation, providing over 10 hours of continuous use.
Specifications
- RF Carrier Power: Less than 50mW(Factory preset 10mW ERP)
- Maximum Input Level: 142dB SPL
- (microphone sensitivity: Gain "0")
- Audio Frequency Response: 90 Hz - 20 kHz
- Dynamic Range: 110 dB or more (with S5.5-RX)
- Battery: LR6 (Single AA)
- Battery Life: 10 hours (Alkaline)
- Indicator: LCD display, Power lamp
- Function: Mute switch, Infra-Red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12dB)
- Dimensions: Ø50 x 232.9 mm (Ø1.97" x 9.76")
- Weight: 300g (0.84lb) (with battery)
