Overview

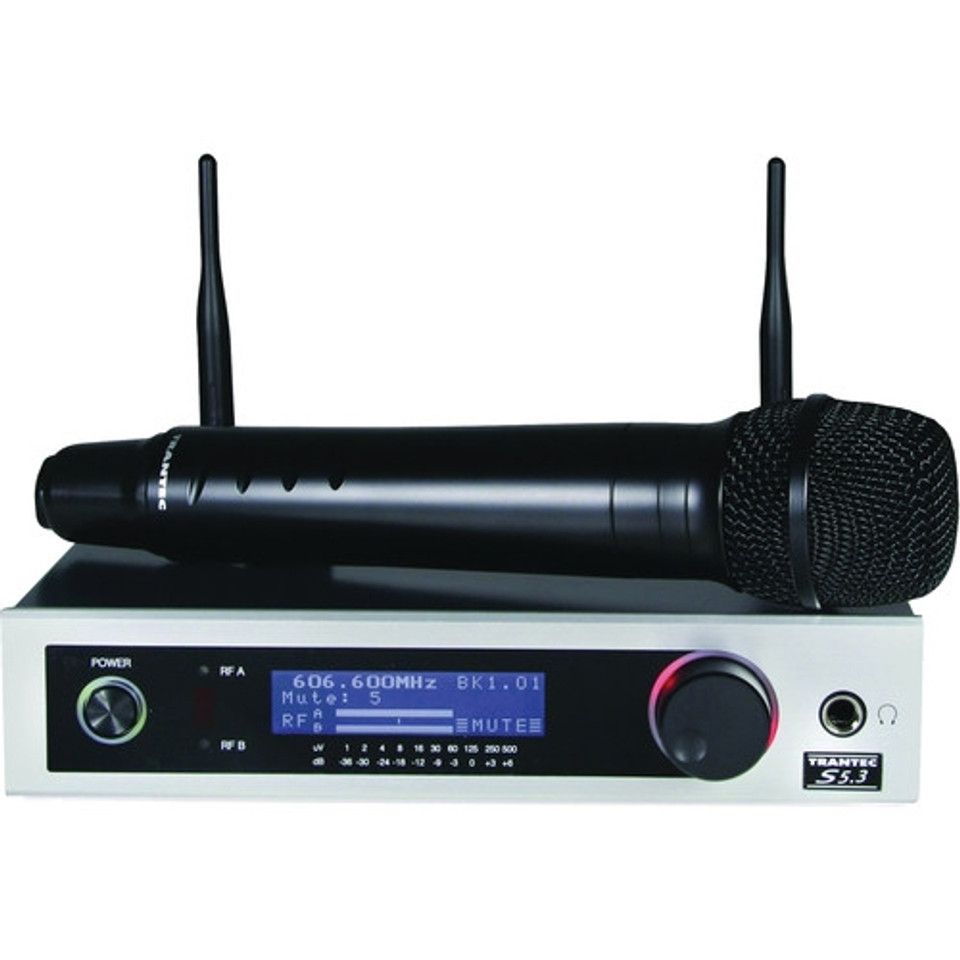

The Trantec S5.3HC Handheld Condenser Microphone Set from Toa Electronics is a handheld condenser microphone set including the fully synthesized S5.3-RX UHF dual-conversion receiver, and S5.3-HCX UHF handheld condenser transmitter. The frequency band for this system is H2 at 576 - 606 MHz. The system is suitable for a wide range of theater and broadcast applications. High quality audio and RF dynamics combine with true diversity operation provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. The system runs using single AA cell battery operation, providing over 10 hours of continuous use.
Specifications
| Power Consumption | 300 mA (13 V DC) |
| Diversity System | Space diversity (true diversity) |
| Audio Output | Line: -22 dB*/ Mic: -62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack |
| Antenna Phantom Power | 9 V DC, 30 mA (max) (Available to turn off phantom power) |
| Receiving Sensitivity | 0 dB μV or less (12 dB SINAD) |
| Squelch Sensitivity | 6 - 36 dB μV variable |
| Squelch System | Using together of noise SQ, carrier SQ and tone SQ |
| Indicator | LCD, Power lamp, Mute lamp, ANT A/B lamp |
| S/N Ratio | 110 dB or more (A-weight) |
| Harmonic Distortion | 1% or less (typical) |
| Frequency Response | 50 Hz - 20 kHz, ±3 dB |
| Function | Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity |
| Dimensions | 210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna) |
| Weight |
1.3kg (2.87lb) |
