Overview

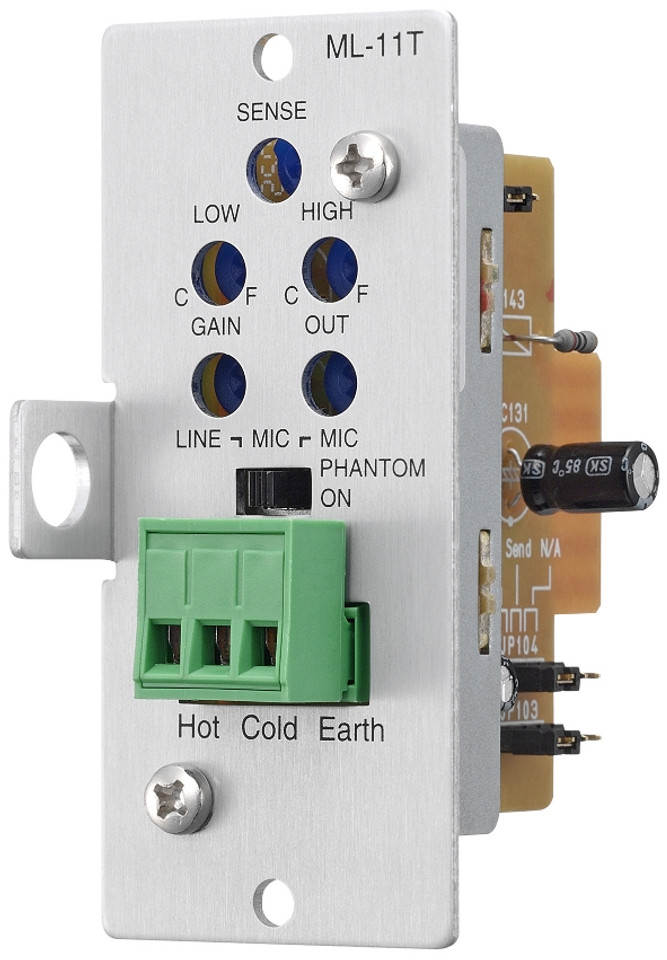

The ML-11T is a microphone/line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a balanced microphone/line input with removable terminal block connector, phantom power supply function, and gain and tone controls.
Specifications
| Power Source | 24 V DC (supplied from the main frame) |
|---|---|
| Current Consumption | 25 mA |
| Input Sensitivity | -60/-20 dB* (changeable) |
| Input Impedance | 10 kΩ, unbalanced |
| Frequency Response | 20 Hz - 20 kHz ±1.0 dB |
| Distortion | 0.05 % (1 kHz) |
| Gain | 32 - 52 dB |
| Phantom Power | +22 V DC (active or disable selectable) |
| Connector | Removable terminal block (3P) |
| Dimensions | 35 (W) × 78 (H) × 91.5 (D) mm (1.38 × 3.07" × 3.6")" |
| Weight | Max. 49 g (0.11 lb) |
| Accessory | Removable terminal block (3P) …1, Module mounting screw …2 |
