Overview

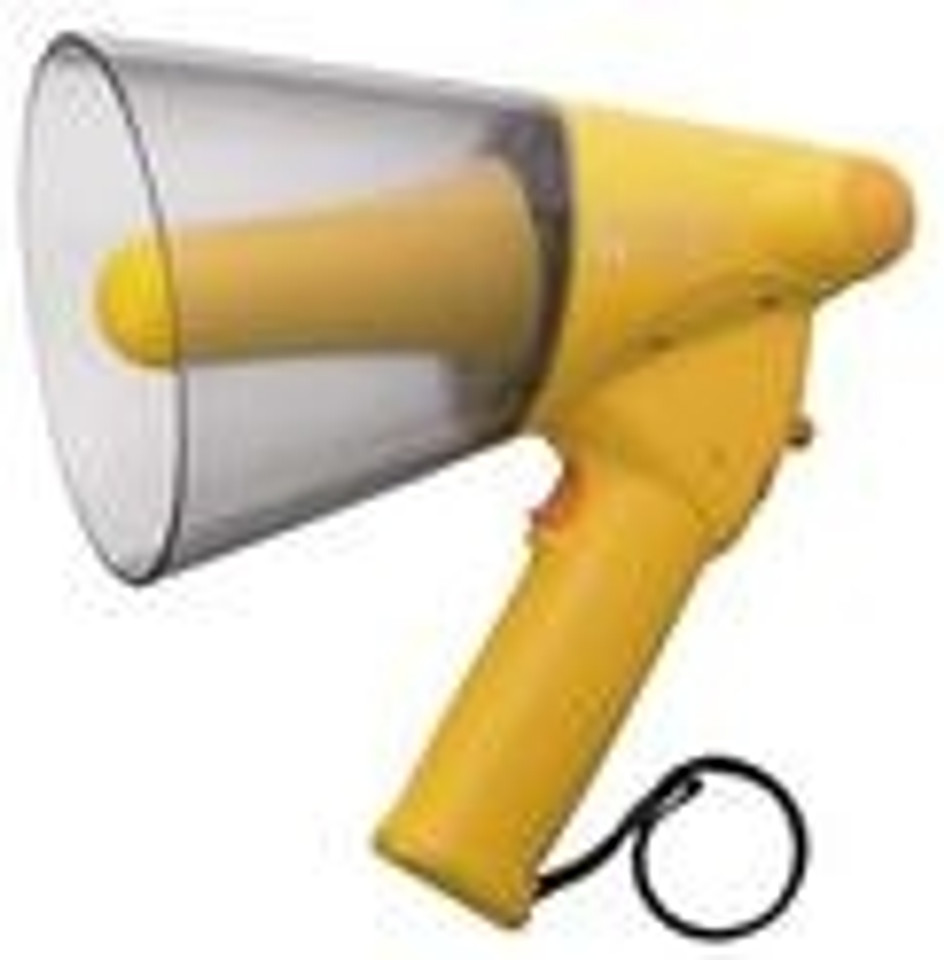

The ER-1206W is a compact splash-proof megaphone rated at 6 W output featuring a built-in whistle. It features IPX5 water-jet-resistant designs. A whistle tone can be used for attracting attention. It operates with 6 R6P batteries, or 4 R6P batteries when the battery spacer (accessory) is used.
Specifications
| Power Source | R6P (AA) × 6 (9 V DC) or R6P (AA) × 4 (6 V DC) |
|---|---|
| Rated Output | 6 W (when using six R6P batteries) |
| Maximum Output | 10 W (when using six R6P batteries) |
| Battery Life | When using six R6P batteries (JEITA)(*1) Voice: Approx. 8 hours, Whistle: Approx. 20 minutes When using four R6P batteries(*2) (JEITA)(*1) Voice: Approx. 5 hours, Whistle: Approx. 10 minutes |
| Audible Range | Voice: Approx. 250 m (JEITA)(*1), Whistle: Approx. 315 m (JEITA)(*1) |
| Signal Sound | Whistle |
| Frequency Response | 450 Hz - 6 kHz (SPL -20 dB) |
| Magnetic Circuit | Neodymium magnet, inner magnet type |
| Diaphragm | Polyimide film (voice coil, bobbin) |
| Water Protection | IPX5 |
| Operating Temperature | -10 ℃ to +40 ℃ |
| Finish | Horn: ASA resin, clear dark gray Other: ASA resin, yellow Strap: Nylon, black |
| Dimensions | 154 (W) × 266 (H) × 250 (D) mm |
| Weight | 680 g (without batteries) |
| Accessory | Battery spacer …1 |
| Option | Wall mounting bracket for megaphone: SP-1100 |
