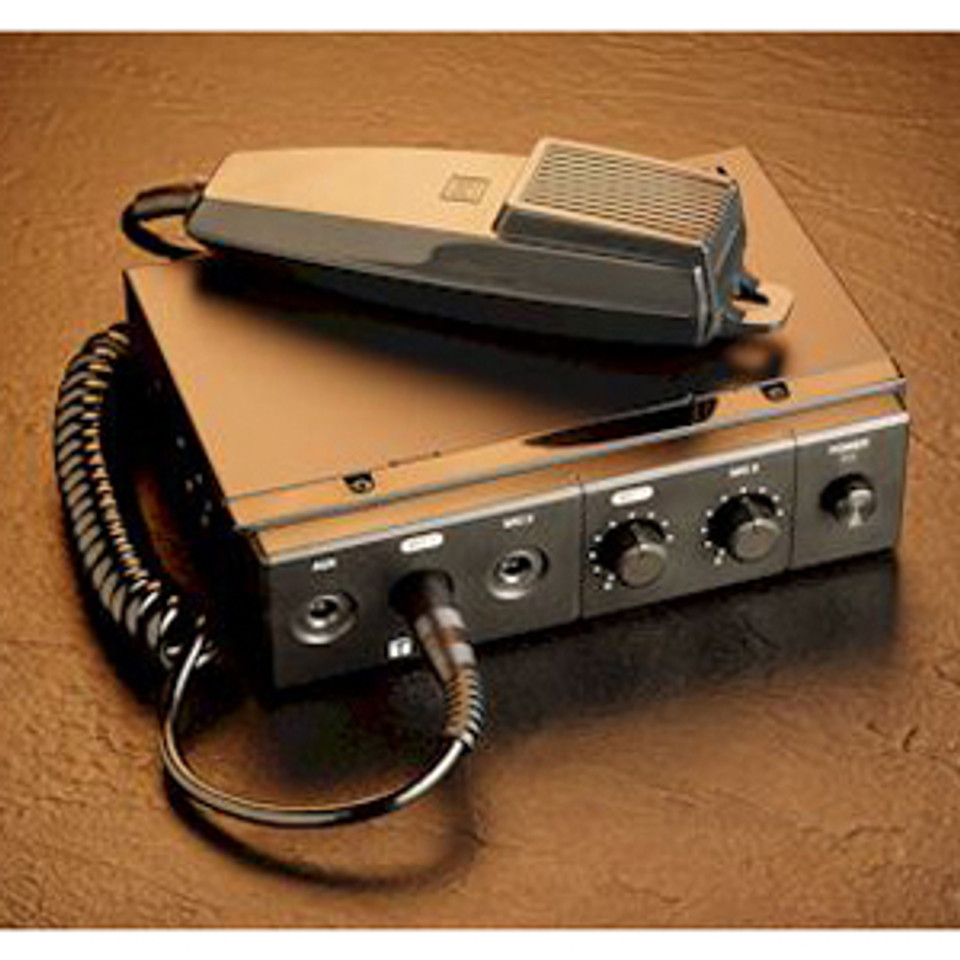

TOA CA SERIES MOBILE MIXER/AMPLIFIERS are ideal for remote applications requiring a compact and powerful mixer/amplifier for public address or emergency paging. Three CA Series models the CA-115 (15 W) CA-130 (30 W) and CA-160 (60 W) are each powered with a standard 12 Volt DC battery and operate into four or eight ohm speaker loads. All models include two microphone inputs with individual Installed Sound > Commercial Amplifiers > Volume Controls a handheld microphone with talk switch and an auxiliary input for connecting an external CD player radio tape deck or tone generator. All mounting hardware is included for easy installation under dashboard or into a standard console cutout. The CA Series Mobile Mixer/Amplifiers are backed with a five year warranty.
FEATURES:
- Mobile Mixer/Amplifiers for Remote Applications
- 12 VDC Powered
- Easy To Install Rugged and Reliable
Three Models:
- CA-115 (15 W)
- CA-130 (30 W)
- CA-160 (60 W)
- Supports 4 or 8 Ohm Speaker Loads
- Two Microphone Inputs with Installed Sound > Commercial Amplifiers > Volume Controls.
- Handheld Microphone Included - unidirectional dynamic-type with talk switch 6' cord and mounting hardware.
- Auxiliary Input for connecting an external CD player radio tape deck or tone generator.
- Mounting Hardware Included - mounts under dashboard or into standard DIN-size console cutout.
- Five Year Warranty
APPLICATIONS:
- Automobiles
- Boats
- Buses
- Construction Vehicles
- Emergency Vehicles
- Law Enforcement Vehicles
- Parade Floats
- Theme Park Rides
Specifications
| Battery Type | 12 VDC |
| Power | 60W |
| Frequency Response | 100 Hz - 10 kHz |
| Dimensions (HxWxD) | 2 x 7 x 6.7" (5 x 18 x 17cm) |
| Weight | 2.7 lbs (1.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.55 lb |
| Box Dimensions (LxWxH) | 10.3 x 10.1 x 3.1" |
