Overview

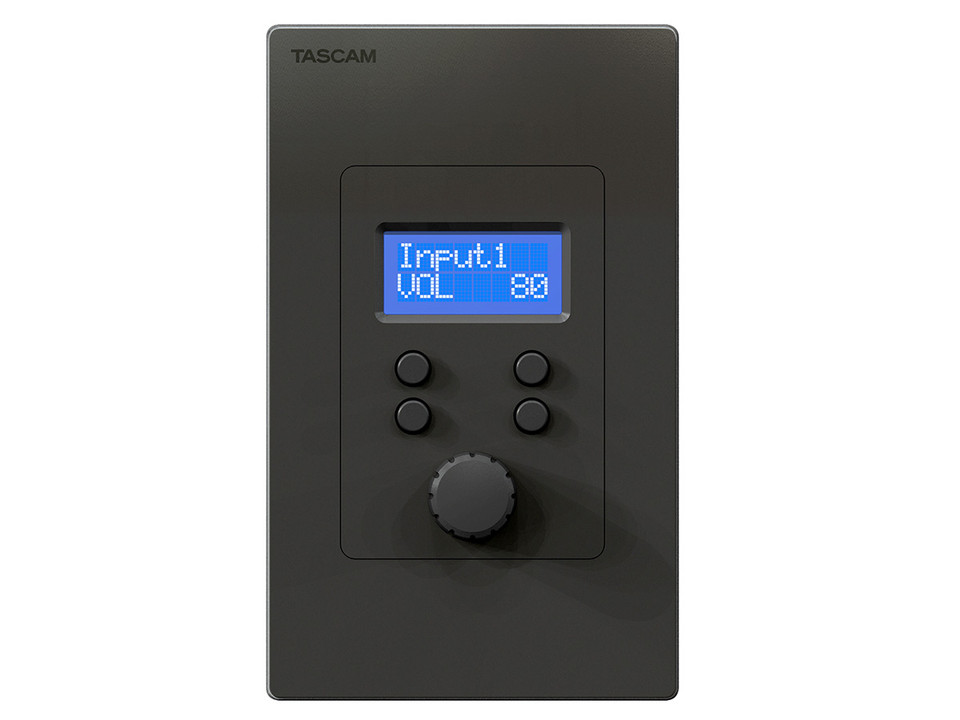

The RC-W100-R120 / RC-W100-R86 Wall Mount Controllers for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100-R120 / RC-W100-R86 Wall Mount Controllers incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches.

Two different panel sizes are available

The two models address a variety of world markets, with the RC-W100-R120 designed for the U.S. and Japan, while the RC-W100-R86 is compatible with switch boxes in Europe.

* RC-W100-R120 and RC-W100-R86 are sold separately.

Features

• Wall-mounted programmable controller for MX-8A
• Equipped with 1 encoder (with push switch) and 4 switches
• Enables switching sources and adjusting volume (including muting)
• Functions can be assigned to the encoder and the switches using TASCAM MX CONNECT
  Prevents end-users from making mistakes by assigning only necessary functions to the controller
  Two source switching modes available
  • - MODE 1: One mode for selecting sources directly by pushing switches (up to 4 sources can be assigned)
  • - MODE 2: Custom source mode for selecting sources from a screen (up to 8 sources can be assigned)

• Easy-to-read display
• - Name of the selected source and current volume can be checked
• - Automatic backlight off function
• Daisy chaining of up to 8 units is possible using cables rated category 5e or higher (maximum length 200 m)
• Power supply can be provided to the unit via MX-8A (RS-485)
• - Reduces power construction and installation costs
• Two different panel sizes are available
• - RC-W100-R120 and RC-W100-R86 are sold separately
• RC-W100-R120" is compatible with switch boxes commonly used mainly in the US and Japan.
• "RC-W100-R86" is compatible with switch boxes commonly used mainly in Europe.

* The following updates are required to use "RC-W100".

• "MX-8A" firmware update to V1.10 or higher
• "TASCAM MX CONNECT" software update to V1.2.0 or higher
