Symetrix W3, Black, Euro

Symetrix W3, Black, Euro

Symetrix W3, Black, Euro

Symetrix W3, Black, Euro

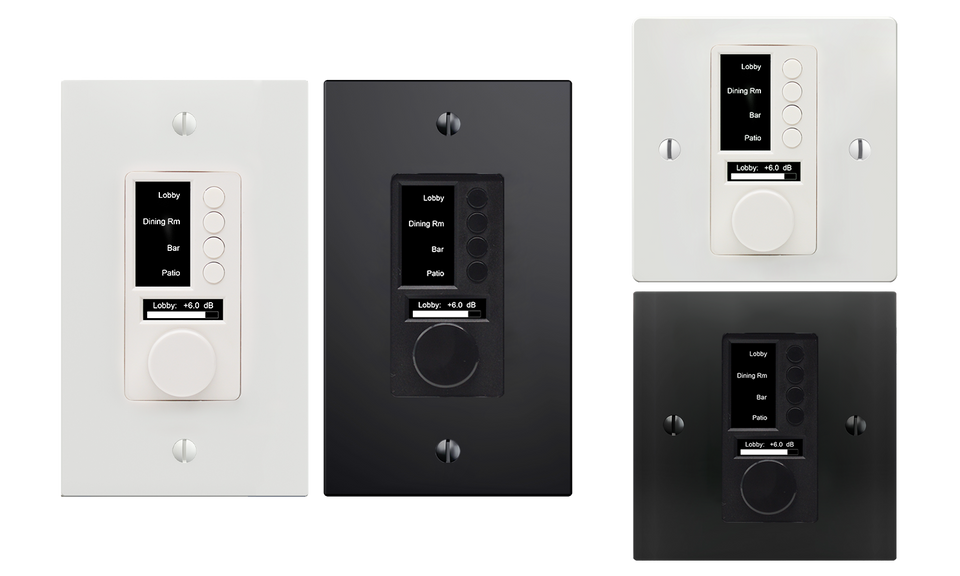

IP remote with push-button rotary encoder, 4 buttons, 2 OLED displays, PoE, Decora single-gang Euro version, black

SKU: SYM-80-0179
MSRP: $705.00
MAP: $705.00

Overview

Features a push button encoder, four momentary buttons, and display. Provides expanded “Select and Set” functionality, multiple encoder modes, and encoder menu select.

Features

  • Simple deployment with standard PoE switch
  • Features a push button encoder, four buttons, and display
  • Available in US or EU single gang form factors and black or white finishes
  • Supports standard single gang Decora faceplates

Specifications

System Specifications

  • Power: PoE 802.3af Class 0
  • Control User Interface: One rotary encoder with push-button knob and 4 push-button switches
  • Display Type: High-contrast OLED
  • Display Viewable Area: 0.91 in. (23.11 mm) and 1.3 in. (33.02 mm) diagonal
  • Physican Network Layer: Ethernet
  • Network Connector: RJ-45
  • Network Transmission Speed: 100 Mbps

Mechanical Specifications

  • Dimensions: 1.78 in. x 4.25 in. x 1.34 in.
  • Certifications and Compliance: IEC 60065; EN 55032; EN 55103-2; EN 61000-3-2; EN 61000-3-3 (EMC
  • International); FCC Part 15 (EMC-USA); RoHS
  • Form Factor: Single gang, Decora
Symetrix W3, White, Euro

Symetrix

Symetrix W3, White, Euro

IP remote with push-button rotary encoder, 4 buttons, 2 OLED displays, PoE, Decora single-gang Euro version, white

MSRP: $705.00
MAP: $705.00
Symetrix W3, Black, US Standard

Symetrix

Symetrix W3, Black, US Standard

IP remote with push-button rotary encoder, 4 buttons, 2 OLED displays, PoE, Decora single-gang US version, black

MSRP: $705.00
MAP: $705.00
Symetrix W2, Black, Euro

Symetrix

Symetrix W2, Black, Euro

IP remote with four buttons, OLED display, PoE, Decora single-gang Euro version, black

MSRP: $613.00
MAP: $613.00
Symetrix W1, Black, Euro

Symetrix

Symetrix W1, Black, Euro

IP remote with push-button rotary encoder, OLED display, PoE, Decora single-gang Euro version, black

MSRP: $613.00
MAP: $613.00
Symetrix W3, White, US Standard

Symetrix

Symetrix W3, White, US Standard

IP remote with push-button rotary encoder, 4 buttons, 2 OLED displays, PoE, Decora single-gang US version, white

MSRP: $705.00
MAP: $705.00
Symetrix W1, White, Euro

Symetrix

Symetrix W1, White, Euro

IP remote with push-button rotary encoder, OLED display, PoE, Decora single-gang Euro version, white

MSRP: $613.00
MAP: $613.00
Symetrix W2, White, Euro

Symetrix

Symetrix W2, White, Euro

IP remote with four buttons, OLED display, PoE, Decora single-gang Euro version, white

MSRP: $613.00
MAP: $613.00
