Overview

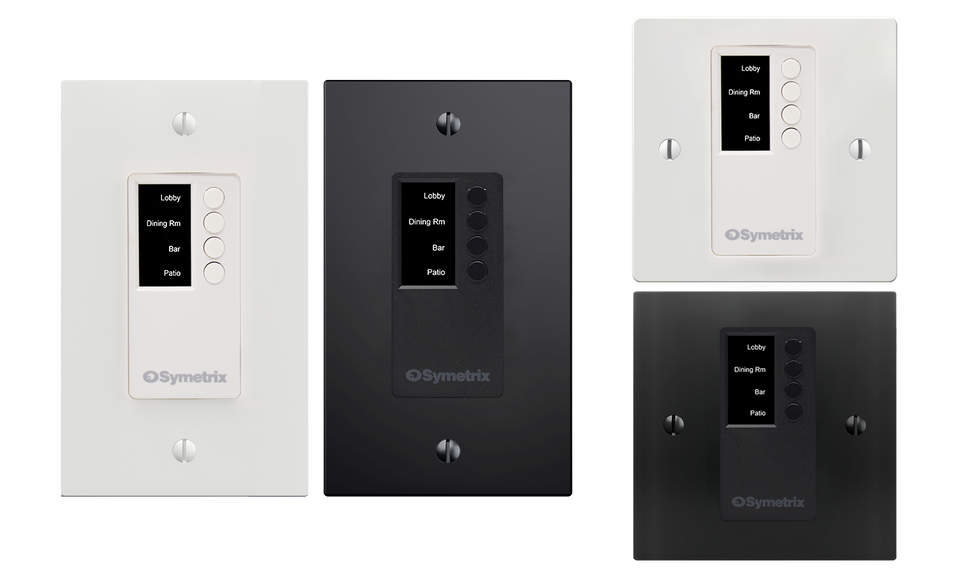

Features a push button encoder and display. The encoder can operate in a continuous (as in a volume control) fashion. The push button can toggle a binary or momentary action (as in a mute or preset recall) or toggle between two encoder assignments.
Features
- Simple deployment with standard PoE switch
- Features four momentary buttons and display
- Available in US or EU single gang form factors and black or white finishes
- Supports standard single gang Decora faceplates
Specifications
System Specifications
- Power: PoE 802.3af Class 0
- Control User Interface: 4 Push-button switches
- Display Type: High-contrast OLED
- Display Viewable Area: 1.3 in. (33.02 mm) diagonal
- Physican Network Layer: Ethernet
- Network Connector: RJ-45
- Network Transmission Speed: 100 Mbps
Mechanical Specifications
- Dimensions: 1.78 in. x 4.25 in. x 1.34 in.
- Certifications and Compliance: IEC 60065; EN 55032; EN 55103-2; EN 61000-3-2; EN 61000-3-3 (EMC International); FCC Part 15 (EMC-USA); RoHS
- Form Factor: Single gang, Decora
