Overview

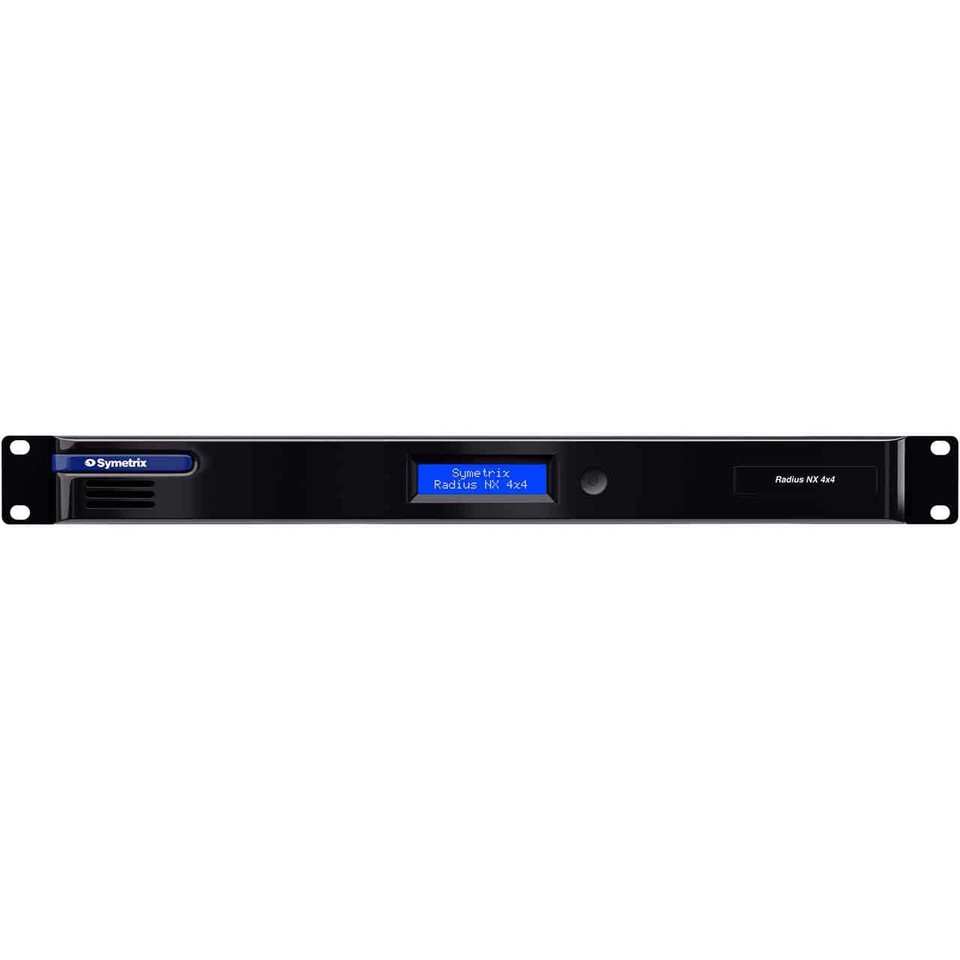

Symetrix Radius NX is the flagship of the Symetrix DSP series, with all the features needed for any application. While perfectly suited to conferencing with optional AEC and built in USB, its flexible card slot and expandability via Dante make it the perfect building block for any application.

User control in every part of a building. Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality - anywhere users need to control audio sources and levels.

SymVue interface. Symetrix touchscreens leverage the power of Symetrix's award-winning SymVue GUI authoring technology, allowing control screens to be created, tested and simulated offline in Composer before being deployed to the touchscreens. Multiple pages with custom controls, unique backgrounds, corporate logos and more can be created quickly and easily with SymVue.

Custom multi-lingual GUIs can be quickly designed using Symetrix Composer and SymVue software, then exported to as many as 80 touchscreens on a system.

Easy batch configuration of multiple touchscreens. Directly managed by Symetrix Composer, touchscreens can simultaneously export/update to named groups of up to 80 touchscreens with programmers' choice of four different configurations for each export.

Compact and unobtrusive. Symetrix touchscreens fit in any U.S. or EU 2-gang receptacle.

Ethernet-powered. There is no need for external power supplies, since Symetrix touchscreens are powered over Ethernet.

Note: T-10 Glass requires Composer 8.3 or later for full functionality,

Features

• Two Models: Radius NX 4x4 and Radius NX 12x8
• Optional 64x64 Dante module
• Optional AEC coprocessor module - up to 16 channels
• USB audio port enables soft-codecs + record/playback
• Dedicated roting resources for a 128x128 super matrix
• 4-port gigabit switch serves Dante + control networks
• Ultra-low noise preamps with 3dB gain steps
• Support for Radius and Edge Expansion cards
• Microsoft Teams Compatible

Specifications

System

• Processor: 1x Analog Devices Griffin ADSP-SC587 dual-core DSP @ 500 MHz
• Raw processing capacity: 500 MIPS, 6 GFLOPS, 2 GMACS
• Sampling Rate: 48 kHz, ± 100 ppm
• Frequency response (A/D/A): 20 Hz - 20 kHz, ± 0.5 dB
• Dynamic range (A/D/A): > 114 dB, A-weighted
• THD + Noise: < -95 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
• Channel separation (A/D/A): > 110 dB @ 1 kHz, +24 dBu
• Latency (A/D/A): 1.04 ms, inputs routed to outputs
• Delay memory: 174 mono seconds
• Analog control inputs: 0-3.3 VDC
• Recommended external control potentiometer: 10k Ohm, linear
• Logic outputs: Low (0V) when active, pulled high (5V) when inactive
• Logic output maximum external power supply voltage/ current sinking: 24 VDC / 50 mA
• Logic output maximum output current: 10 mA
• RS-232 accessory serial I/O: 57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 require
• RS-485 serial I/O: 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port
• Ethernet Cable: Standard CAT5/6, maximum device to device length = 328 feet / 100 meters
• Dante Cable: Standard CAT6, maximum device to device length = 328 feet / 100 meters
• ARC Cable: Standard CAT5/6, distance dependent upon load and number of devices
• Maximum stored presets: 1000

Analog Inputs

• Number of inputs: Four (4) switchable balanced mic or line level
• Connectors: 3.81 mm terminal blocks
• Nominal input level: +4 dBu
• Maximum input level: +24 dBu
• Mic pre-amp gain: 0 to 51 dB in 3 dB steps with ± 24 dB digital trim
• Mic pre-amp EIN: < -125 dB with 150 Ohm source impedance, 22.4 kHz BW
• Input impedance: 2k Ohms balanced, 1k Ohms unbalanced
• Phantom power (per input): +48 VDC @ 10 mA maximum
• Dynamic range: > 115 dB, A-weighted
• THD + Noise: < -100 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gain
• Latency: 0.31 mS

Analog Outputs

• Number of outputs: Four (4) balanced line level
• Connectors: 3.81 mm terminal blocks
• Nominal Output Level: +4 dBu with 20 dB of headroom
• Maximum Output Level: +24 dBu (+22.8 dBu into a 2k Ohm minimum load)
• Output Impedance: 300 Ohms balanced, 150 Ohms unbalanced
• Dynamic range: > 117 dB, A-weighted.
• THD + Noise: < -97 dB (22.4 kHz BW, unweighted); 1 kHz, 0 dB gain +8 dBu output
• Latency: 0.65 ms

Analog Inputs

• Number of inputs: Four (4) switchable balanced mic or line level
• Connectors: 3.81 mm terminal blocks
• Nominal input level: +4 dBu
• Maximum input level: +24 dBu
• Mic pre-amp gain: 0 to 51 dB in 3 dB steps with ± 24 dB digital trim
• Mic pre-amp EIN: < -125 dB with 150 Ohm source impedance, 22.4 kHz BW
• Input impedance: 2k Ohms balanced, 1k Ohms unbalanced
• Phantom power (per input): +48 VDC @ 10 mA maximum
• Dynamic range: > 115 dB, A-weighted
• THD + Noise: < -100 dB (22.4 kHz BW, unweighted); 1 kHz @ +15 dBu with 0 dB gainLatency: 0.31 mS

Analog Outputs

• Number of outputs: Four (4) balanced line level
• Connectors: 3.81 mm terminal blocks
• Nominal Output Level: +4 dBu with 20 dB of headroom
• Maximum Output Level: +24 dBu (+22.8 dBu into a 2k Ohm minimum load)
• Output Impedance: 300 Ohms balanced, 150 Ohms unbalanced
• Dynamic range: > 117 dB, A-weighted.
• THD + Noise: < -97 dB (22.4 kHz BW, unweighted); 1 kHz, 0 dB gain +8 dBu output
• Latency: 0.65 ms

Mechanical Data

• Space Required: 1U (WDH: 18.91 in. x 9.5 in. x 1.72 in. Depth does not include connector allowance.
• Electrical: 100-240 VAC, 50/60 Hz, 60 Watts maximum, universal input.
• Ventilation: Maximum recommended ambient operating temperature is 86 F.
• Shipping Weight: 13 lbs.
• Certifications and Compliance: Safety: UL 60065, cUL 60065, IEC 60065
• EMC: EN 55103-1, EN 55103-2, EN55032, EN 61000-3-2, EN 61000-3-3, ICES-003, FCC Part 15 (all Class A)
• Environmental: RoHS

Item Includes

• 1x Power cable
• 13x Detachable 3.5 mm terminal block connectors
• 1x Qucik Start Guide

Warranty

• 5 years
