Overview

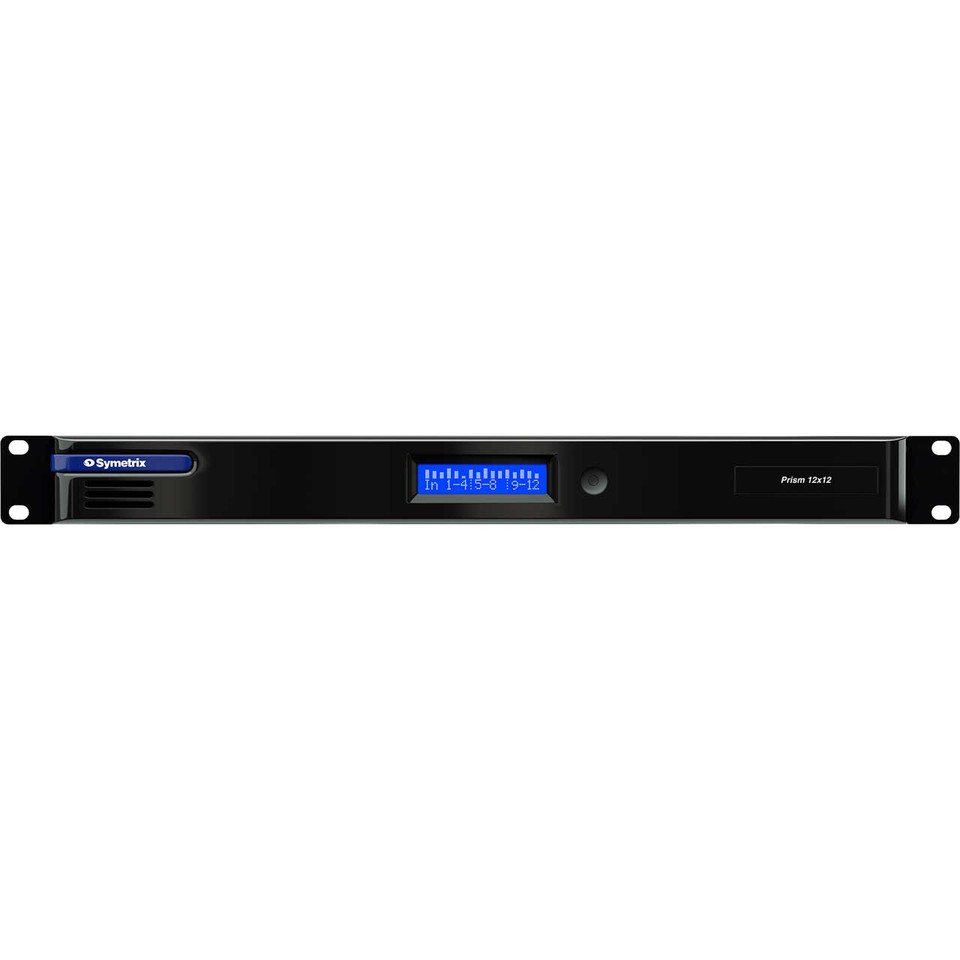

Symetrix's Prism open-architecture DSPs are the workhorse of any system and meet the needs of many common applications. Available in a variety of common channel configuration and with both Dante and non-Dante options, there is a Prism perfect for your application, without spending on unneeded features.

Flexible IO Combinations. The prism family scales from the smallest 4x4 to the largest 16x16, providing the perfect amount of class leading Symetrix quality IO for any installation.

Scaling Up. A Prism system's analog input and output count may be increased using Symetrix Dante-enabled xIn 4, xIO 4x4, xOut 4, xIn 12, and xOut 12 analog I/O expanders.

Unlimited Programming Flexibility. Prism is programmed using Composer - Symetrix' award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware - thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.

Control Made Easy. Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.

Features

• DSP Price/Performance Breakthrough
• 4x4, 8x8, 12x12, and 16x16 models
• Optional 128 Channel (64x64) Dante
• DSP Processing Identical to Radius and Edge
• Delay Memory Identical to Radius and Edge

Specifications

Analog Inputs

• Number of inputs: Twelve (12) switchable balanced mic or line level
• Connectors: 3.81 mm terminal blocks
• Nominal input level: +4 dBu
• Maximum input level: +23 dBu
• Mic pre-amp gain: 0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim
• Mic pre-amp EIN: < -125dB with 150 ohm source impedance. 22.4 kHz BW
• CMRR: > 79 dB @ 1 kHz, unity gain
• Input impedance: 8k Ohms balanced, 4k Ohms unbalanced
• Phantom power (per input): +48 VDC, 10 mA maximum
• Dynamic range: > 113 dB, A-weighted
• THD+noise: < -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4 dBu.
• A to D latency: 0.28 mS

Analog Outputs

• Number of outputs: Twelve (12) balanced line level
• Connectors: 3.81 mm terminal blocks
• Nominal output level: +4 dBu with 20 dB of headroom
• Maximum output level: +24 dBu (+22.8 dBu into a 2k Ohm minimum load)
• Output impedance: 300 Ohms balanced, 150 Ohms unbalanced
• Dynamic range: > 117 dB, A-weighted
• THD+noise: < -97 dB; 22.4 kHz BW, unweighted; 1 kHz, 0 dB gain +8dBu output
• D to A latency: 0.60 mS

  Mechanical
• Space Required: 1U (WDH: 18.91 in. x 9.88 in. x 1.72 in.
• Electrical: 24V 1.9A, 45W Maximum. Symetrix Part Number 12-0034. CUI part number SDI65-24-U-P5.
• Ventilation: Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
• Certifications or compliance: Safety: UL 60065, cUL 60065, IEC 60065. EMC: "Class A" device (applies to all of the following) EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-003. Environmental: RoHS.
• Shipping weight: 9.4 lbs.

System

• Sampling rate: 48 kHz
• Frequency response (A/D/A): 20 Hz - 20 kHz, ± 0.5 dB
• Dynamic range (A/D/A): > 113 dB, A-weighted
• Channel separation (A/D/A): > 110 dB @ 1 kHz, +24 dBu
• THD+noise: < 95 dB (22.4 kHz BW, un-weighted); 1 kHz @ +15 dBu with 0 dB gain
• Latency (A/D/A): 1.04 mS, inputs routed to outputs
• Processors: x Analog Devices SHARC 21489 @ 400 MHz SIMD
• Raw processing capacity: 400 MIPS, 1.6 GFLOPS
• Delay memory: 174 mono seconds
• Analog control inputs: 0-3.3 VDC
• Recommended external control potentiometer: 10k Ohm, linear
• Logic outputs: Low (0V) when active, pulled high (5V) when inactive
• Logic output maximum external power supply voltage: 24 VDC
• Logic output maximum external power supply current sinking: 50 mA
• Logic output maximum output current: 10 mA
• RS-485 serial I/O: 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port.
• Ethernet cable: Standard CAT5e or CAT6, maximum device-to-device length = 100 meters
• Dante cable: Standard CAT6, maximum device-to-device length = 100 meters
• ARC cable: Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available.
• Maximum devices per system: 128 units per Site File
• Maximum stored presets: 1000

Item Includes

• 1x 24 VDC @ 2.71 amp power supply (Symetrix part no. 12-0034)
• 1x Power cable
• 32x Detachable 3.5mm Phoenix connectors

Warranty

• 5 years
