Overview

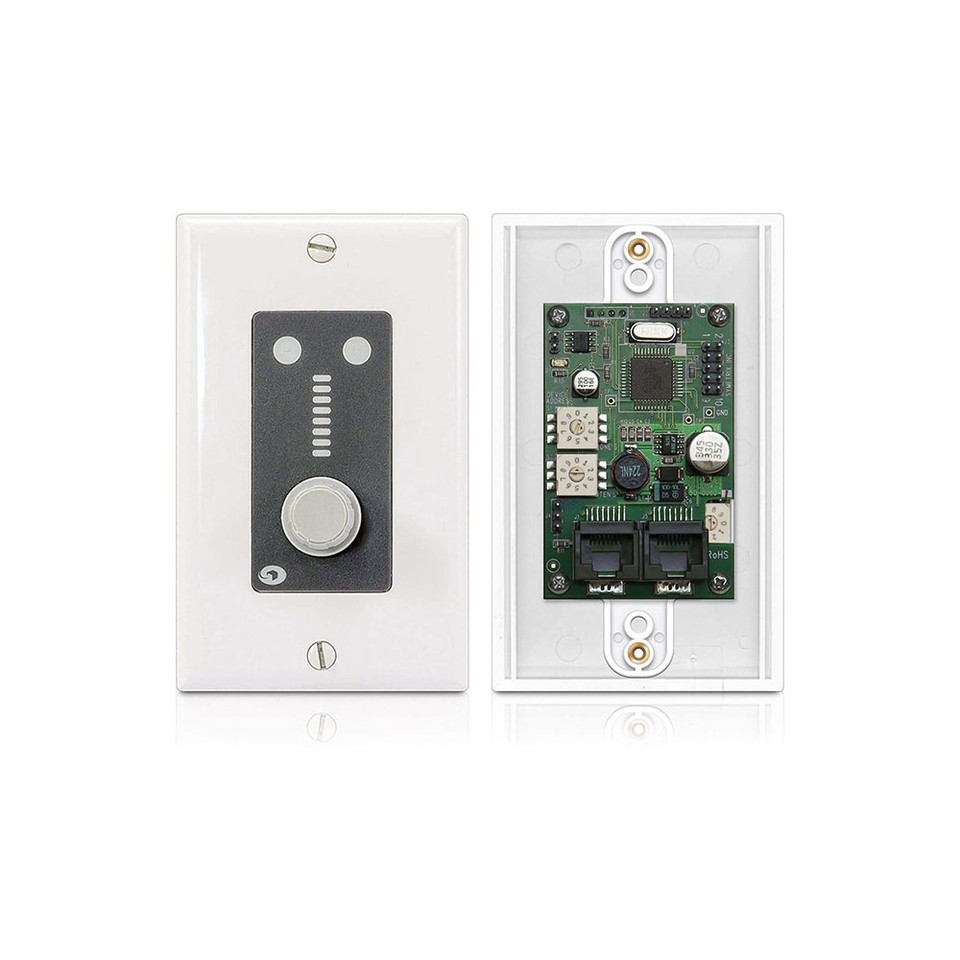

- Rotary encoder with pushbutton, typically controlling volume.
- 8-segment LED ladder indicates relative levels.
- Additional LEDs indicating selected active control.
- Idle mode for LED dimming in light sensitive environments.
- Hardware lockout pins for installer provided key switch.
- Available in gray, white, and black.
- Single-gang Decora faceplate, mounts in North American electrical box.
Features
- User Control of Symetrix DSP Systems
- Flexible and Extensible
- Easy to Install Using CAT5/6 Cabling
- Easy to Program Using Composer
Specifications
Architect and Engineer Specifications
The series of wall panels shall be designated in two groups – Adaptive Remote Controls (ARC) and standard Remote Controls (RCs).
ARCs may be divided by functionality into the Menu and Modular ARCs. The Menu ARC-3 shall include one 256×64 pixel resolution white on black OLED backlit display and three capacitive touch areas for menu selection and value increment/decrement. The Menu ARC-3 shall mount into a single gang electrical box (US/UK/EU) or surface mount with the included enclosure. Power and control shall be connected via two RJ45 connectors. The Menu ARC-2e shall include one 8-character backlit alpha-numeric display, one momentary button for menu selection, and two momentary buttons for value increment/decrement. The Menu ARC-2e shall mount in a standard U.S. single-gang box. Power and control shall be connected via two RJ45 connectors. Modular ARC wall panels shall consist of multiple models that mount in standard U.S. single-gang box, and shall be compatible with standard Decora® faceplates. ARC-K1e shall include one push-button rotary encoder, one eight-segment LED stack, and two status LED indicators; ARC-SW4e shall include four momentary buttons with four corresponding status LED indicators; ARC-EX4e shall include four momentary buttons with four corresponding status LED indicators. All Remote Controls shall function as user interfaces for Symetrix DSP systems. All shall be configured by software provided with the hosting device to assign control within DSP system components. RS-485 communications shall be utilized for software control and configuration. The series of wall panels shall be CSA tested to UL 60065. The series of wall panels shall be Adaptive Remote Controls (ARCs).
RC wall panels shall mount in a standard U.S. single gang box, and the RC-3 shall be compatible with standard Decora® faceplates. RC-3 shall include one rotary potentiometer. It shall connect to a Symetrix device’s analog control inputs via screw-type barrier strips utilizing standard shielded twisted pair wiring with two conductors plus ground for the RC-3. RC-3 shall be configured by software provided with the hosting device to assign control within DSP system components. The series of wall panels shall be CE marked, CSA tested to UL 60065. The series of wall panels shall be Remote Controls (RCs).
