SoundTube HP82-EZ
8" Open-Ceiling Speaker

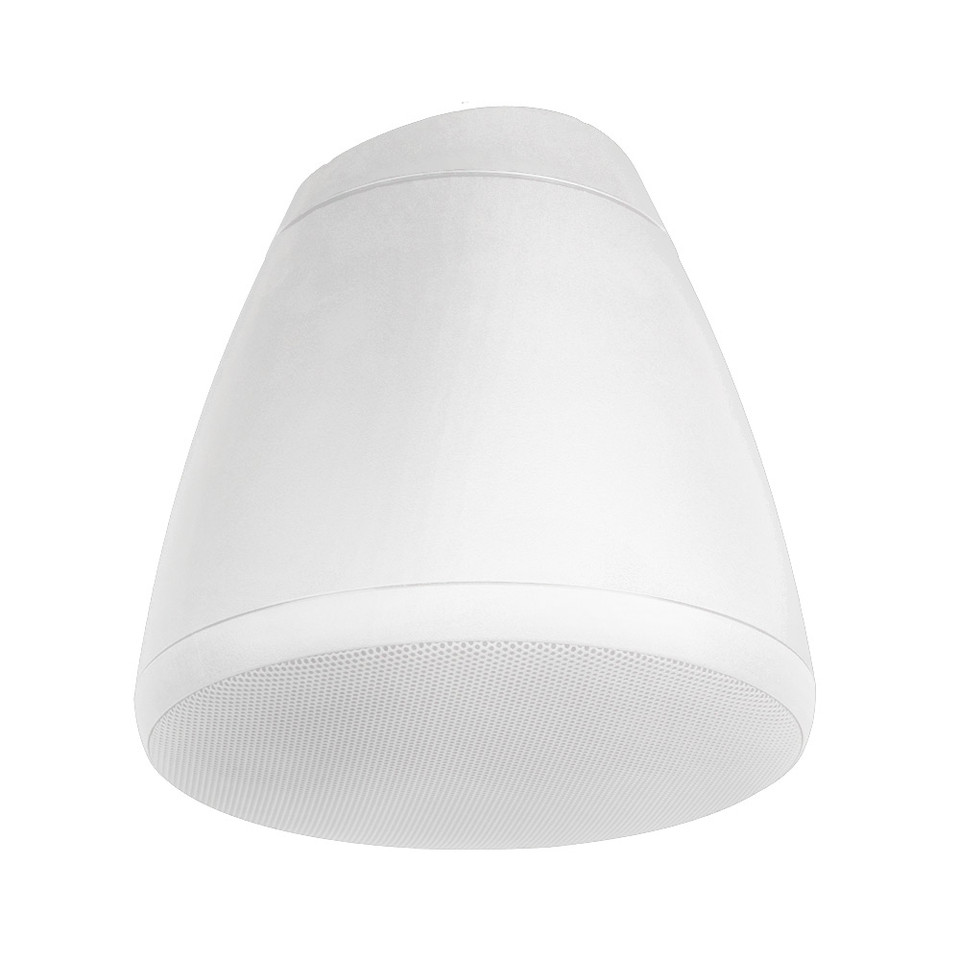

RS-EZ Series Hanging Speakers
With excellent off-axis performance and easy installation (including direct conduit mount) these economy Installed Sound > Install Speakers > Pendant Speakers are ideal for open-ceiling installations including retail grocery stores restaurants and fitness centers. Four RS-EZ models are available along with the long-throw HP82-EZ.
- One 8.0 inch (203 mm) high power coaxial driver with BroadBeamHP™ compression driver technology for long throw and smooth directivity.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast easy and secure installation. Unit may be hung or mounted direct-toconduit via locking cover plate.
- Enclosure constructed of injection molded ABS with glasber reinforcement for lasting durability in indoor or outdoor applications.
- 16 ohm impedance for easy daisy chaining in low voltage systems.
- Aluminum grille with protective powfinish.
- Built-in thermal fuse.
- Unit ships in eco-friendly recyclable packaging.
- UL 1480 UEAY planned UL 2239 approved.
- High-quality black or white paint finish. Speaker is paintable.
- Included accessories: hanging hardware terminal weather boot cover plate.
Specifications:
- Frequency Response (-3 dB) 110 Hz - 22 kHz
- Low Frequency(-10 dB) 80 Hz - 22 kHz
- Sensitivity 90.0 dB
- Power Capacity RMS 64 W
- Max SPL dB @ 1 M 111.0 dB
- Nominal Impedance 16 ohm
- Transformer Options 25 / 70.7 / 100 Volt option with a 16 Ohm direct
- Tweeter 35mm (1.38 in) titanium compression driver with waveguide
- Woofer 203 mm (8.0 in.) Treated paper cone,cloth surround
- Connections 4 position ceramic terminal connector
- Height 327.7 mm (12.9 in.)
- Diameter 325.9 mm (12.83 in.)
- Weight 6.35 kg (14 lbs.)
- Shipping Weight 7.5 kg (16.5 lbs.)
- Colors Black / White, or Custom
