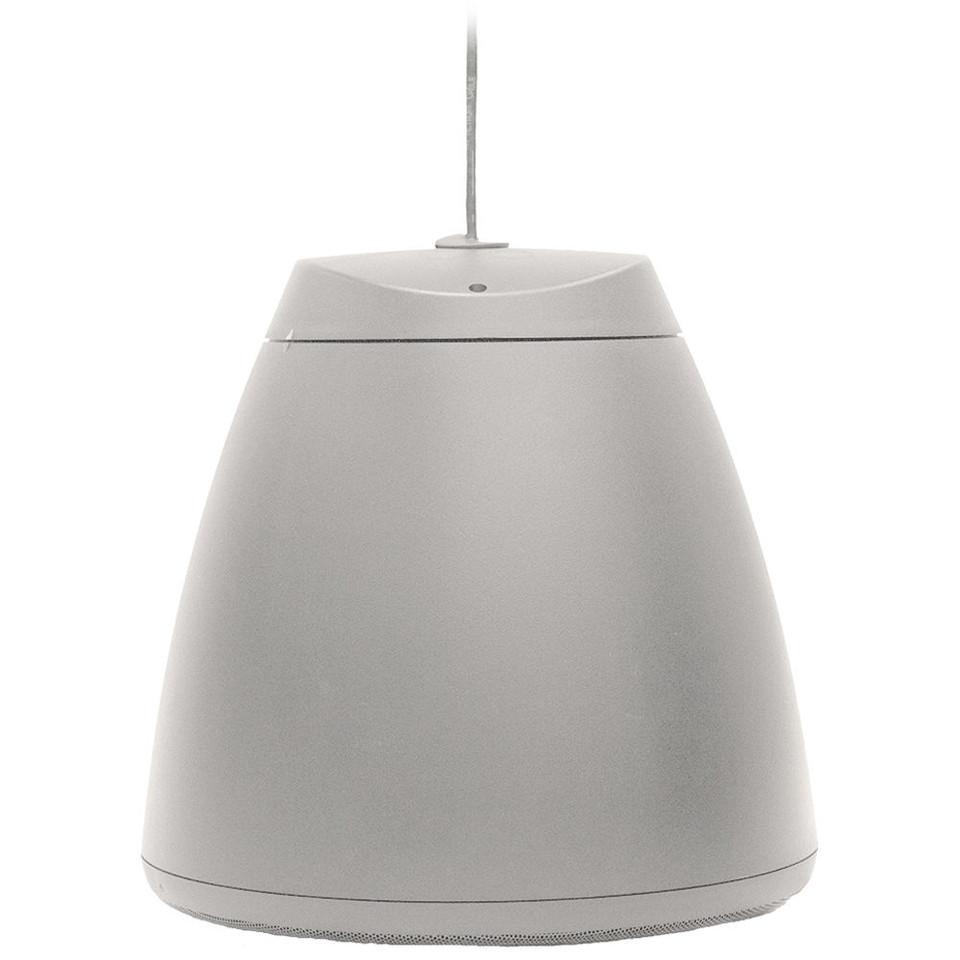

SoundTube IPD-HP82-EZ-WH

8" High Power, IP-Addressable, Dante Addressable, Spkr in White

SKU: ST-IPD-HP82-EZ-WH

MSRP: $715.00

Description

OVERVIEW

The HP82-EZ is a 8.0-inch, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be mounted direct-to-conduit via the locking cover plate (see installation instructions for additional information). The HP82-EZ speaker incorporates 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position.

FEATURES

One 8.0 inch (203 mm) high power coaxial driver with BroadBeamHP Ring™ technology for high frequency dispersion.
Weatherized components for indoor and outdoor applications.
Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate.
Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications.
Easy access six-position rotary switch for 25-, 70.7- and 100-volt applications with transformer bypass position.
Aluminum grille with protective powdercoated finish.
Built-in thermal fuse.
Unit ships in eco-friendly, recyclable packaging.
UL 1480 UEAY & UL 2239 listed.
High-quality black or white paint finish. Speaker is paintable.
Included accessories: hanging hardware, weather plug, cover plate.

SPECIFICATIONS

System Type 8.0" Coax, open-ceiling, high SPL, ported (64 Watt transformer tor 2d//0./7100 Vol: or voice coil direct) Impedance (nominal)' 16 ohm Sensithrity dB @ 2.83 V/1 m 89.0 clB Ser«itjvitydB@1W/4m 80.4 clB Sensithrity dB @ 1 W/1 rn 92.0 clB Frequency Response (- 3 dB)3 110 Hz-22 kHz Frequency Response (-10 dB)3 80 Hz - 22 kHz Max. Program Power1 128W Max. Continuous Power RMS* 64W Max. Power SPL @ 1 m" 110.0 dB Max. Power SPL @ 4 m 97.9 clB Coverage Angle Horizontal @-6dB 500Hz 156° 1Khz 98° 2Khz 96° 4Khz 81° Coverage Angle Vertical @-6dB 500Hz 154° IKhz 99° 2Khz 88° 4Khz 82° Tap Selector 6 Position rotary switch with transformer bypass Transducer - Low Frequency Driver 203 mm (8.0 in.) Polypropylene cone, butyl rubber surround Transducer- High Frequency Driver 19mm (0.75in) Silk dome with Beam Ring™ Low Frequency Voice Coil 38 mm (1.50 in) Crossover Frequency 2.5 kHz Network Type: Low Pass 6dB per octave, 1 st order Network Type: High Pass 6dB per octave, 1 st order Enclosure Material Injection molded ABS, glass fiber reinforced Grille Powder coated aluminum Inputs 4 position ceramic terminal connector Colors Black or white (paintable) Height 327.7 mm (12.9 in.) Diameter 325.9 mm {12.83 in.) Weight 6.35 kg (14 lbs.) Shipping Weight 7.5 kg (16.5 lbs.) Packaging One per box Included Accessories Hanging hardvvare, weather plug, cover plate Optional Accessories N/A Regulatory - UL UL 1480 UEAY & UL 2239 Listed Regulatory - CE Approved RoHS Approved
