Overview:
FOUR CHANNELS OF WIRELESS VERSATILITY, WHEREVER REQUIRED

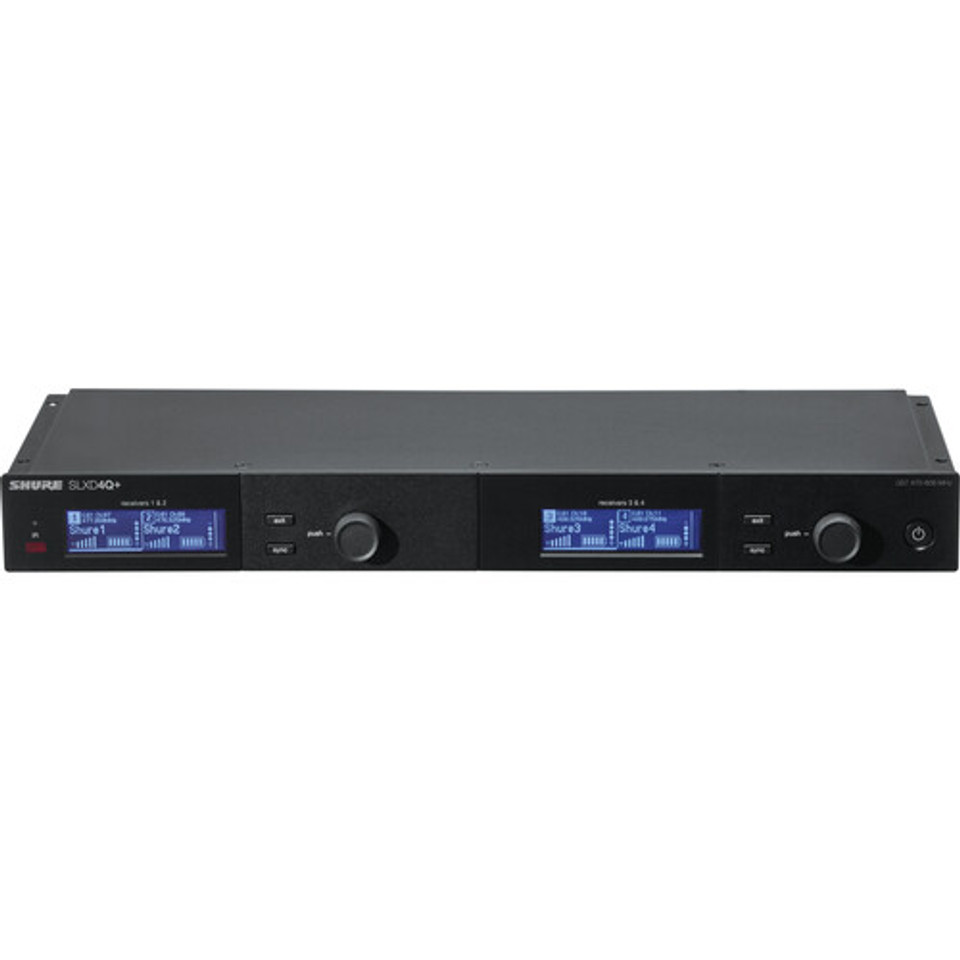

SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with streamlined network-ready setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design in a convenient full-rack quad configuration, the SLXD4Q+ efficiently saves space and accessories, and easily scales to match channel requirements.
Features:
- Four channels in one rack space
- Wide 138 MHz tuning range
- 32 available channels per frequency band (region dependent)
- Transparent 24-bit digital audio
- 118 dB dynamic range
- Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)
- 4 XLR and 4 1/4" outputs and 2 local ethernet connections
- RF Cascade creates an 8-channel system by linking two SLXD4Q+ together, no other accessories required
- Bias Voltage power supply management
- Digital predictive switching diversity
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Rugged metal construction
Specs:
Wireless Technology
Digital UHF
Diversity
Yes, True Diversity
Max Operating Range
328' / 100 m
Receiver Type
1x Tabletop/Rack-Mountable
Number of Audio Channels
4
System
Wireless Technology
Digital UHF
Diversity
Yes, True Diversity
RF Frequency Band
470 to 608 MHz
Number of RF Channel Frequencies
5520
Max Operating Range
328' / 100 m
Max Transmitters per Band
32
Latency
3.2 ms
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
Yes: Android & iOS
Receiver
Receiver Type
1x Tabletop/Rack-Mountable
Mounting Options
Rackmount (with Included Hardware, 1 RU)
Antenna
2x Detachable BNC 1/4 Wave External (Rear-Mount)
Number of Audio Channels
4
Audio I/O
4x XLR 3-Pin Balanced Mic/Line Output
4x 1/4" TRS Balanced Output
Network I/O
2x RJ45
USB/Lightning Connectivity
No
USB Class-Compliant
No USB Connectivity
Gain Range
18 to +42 dB (1 dB Steps)
Frequency Response
20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Built-In Microphone
No
Display
LCD (Non-Backlit)
Power Requirements
AC/DC Power Adapter
Power
AC/DC Power Adapter
15 VDC at 0.9 A, Center-Positive (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Environmental Resistance
No
Rackmount Size
1 RU (Full Rack)
Housing
Metal
Dimensions
15.5 x 6 x 1.7" / 393 x 152 x 42 mm
Weight
3.9 lb / 1750 g
Packaging Info
Package Weight
8.72 lb
Box Dimensions (LxWxH)
18.2 x 14.4 x 4.5"
