Overview
Black Mini-Condenser for Overhead Miking 30-foot Cable In-Line Preamp Microphone Stand Adapter
It's hard to believe that such small unobtrusive microphones can produce such great sound but it's true. Available in black or white finishes and with in line or plate mount preamps the Microflex Overhead condenser microphones capture Shure quality sound in a compact adjustable package. Each model features one of the three interchangeable condenser microphone Live Sound > DJ Equipment > Cartridges attached to a flexible four inch Install Sound > Install Microphones > Gooseneck with a 30 foot cable. The preamp options available offer easy installation in ceilings or Live Sound > Stands > Microphone Stands and when combined with the high sensitivity cartridge's wide frequency response these microphones provide accurate sound reproduction with a minimum of RF interference or electromagnetic hum. The new Microflex Overheads feature interchangeable cardioid supercardioid and omnidirectional condenser Live Sound > DJ Equipment > Cartridges that fit every model in the Microflex product line for enhanced convenience and consistent sound. Microflex Overhead microphones come complete with these accessories:
Features:
- Snap fit Foam Windscreen
- Stand Adapter (for in line preamp models)
- Preamp Mounting Hardware (for in line preamp models)
- Audition the Microflex Overhead microphones and you'll understand what we mean when we say "good sound comes in small packages."
- Suggested Applications:
- House of Worship
- Theater

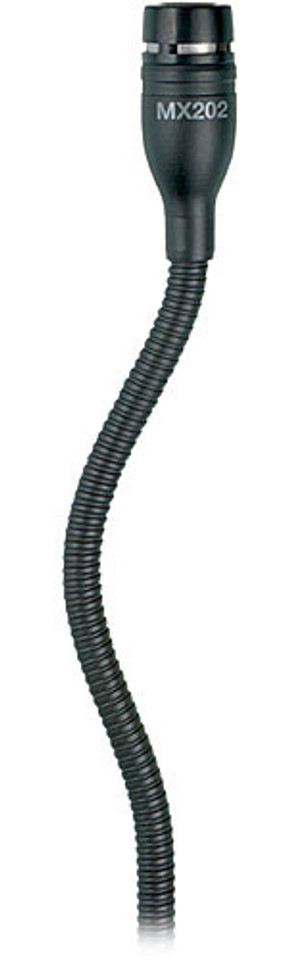

MX202 MicroFlex Condenser Microphone with Inline Preamp
- Frequency Response
- 50 to 17,000 Hz
- Output Impedance
- 180 ohms actual (EIA rated at 150 ohms)
- Sensitivity (At 1,000 Hz, open circuit voltage*)
- Cardioid: -35.0 dBV/Pa (17.8 mV)
- Supercardioid: -33.5 dBV/Pa (21.1 mV)
- All values -12 dB at 0 gain; *1 Pascal = 94 dB SPL
- Maximum SPL (1 kHz at 1% THD, 1 k ohm load)
- Cardioid: 124.2 dB
- Supercardioid: 122.7 dB
- All values +6 dB at 0 gain
- Equivalent Output Noise (A-weighted)
- Cardioid: 28.0 dB SPL
- Supercardioid: 26.5 dB SPL
- Signal to Noise Ratio (referenced at 94 dB SPL)
- Cardioid: 66.0 dB
- Supercardioid: 67.5 dB
- Dynamic Range at 1 k ohm load
- 96.2 dB
- 100 dB at 0 gain
- Common Mode Rejection
- 45.0 dB minimum
- Preamplifier Output Clipping Level (1% THD)
- -6.0 dBV (0.5 V)
- -12 dBV at 0 gain
- Polarity
- Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
- Power Requirements
- 11 to 52 Vdc phantom, 2.0 mA
- Environmental Requirements
- Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
- Relative Humidity
- 0 to 95%
- Cable Length
- 9 m (30 ft)
