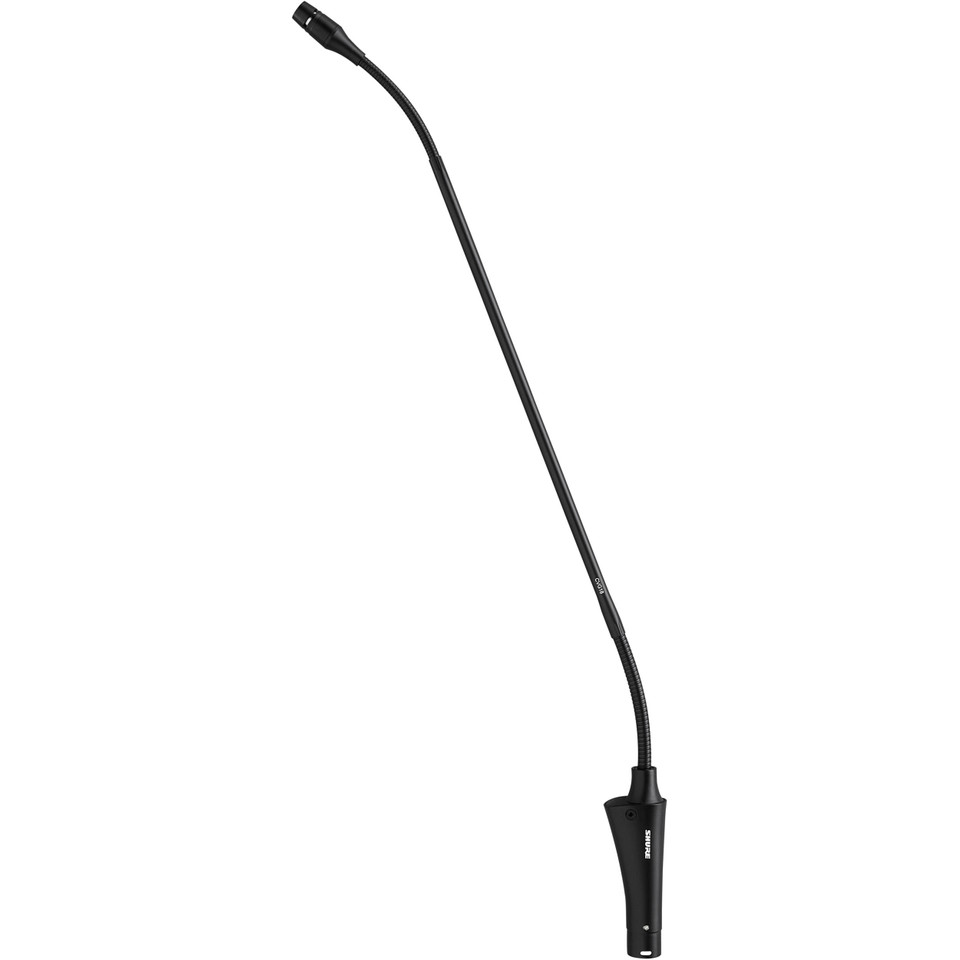

Shure CVG18-B/C
Centraverse Cardioid-18" Dual-Section Install Sound > Install Microphones > Gooseneck Condenser Microphone Inline Preamplifier Flange Mount Black
18" Install Sound > Install Microphones > Gooseneck Condenser Microphone Inline Pre-Amp Flange Mount Cardioid Black
Centraverse™ Install Sound > Install Microphones > Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications including corporate facilities houses of worship and government institutions. Dual-section Install Sound > Install Microphones > Gooseneck provides full articulation and easy placement options. Each microphone includes a windscreen and mounting flange. Featuring Commshield® Technology which guards against unwanted RF interference from portable wireless devices Centraverse microphones deliver in best-in-class performance and reliability. Mute switch/LED and Mute switch/Light ring options are not sold in the Americas region.
Features
- Cardioid polar pattern with tailored response for speech
- CommShield® Technology that guards against unwanted RF interference from portable wireless devices (smartphones etc.) and offers high resistance to intense nearby radio signals
- Frequency response ideal for capturing fast transients in a wide variety of locations including podiums and desktops
- Superior Shure design and rugged dependable construction
"
Shure CVG18-B/C
Centraverse Cardioid-18" Dual-Section Install Sound > Install Microphones > Gooseneck Condenser Microphone Inline Preamplifier Flange Mount Black
18" Install Sound > Install Microphones > Gooseneck Condenser Microphone Inline Pre-Amp Flange Mount Cardioid Black
Centraverse™ Install Sound > Install Microphones > Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications including corporate facilities houses of worship and government institutions. Dual-section Install Sound > Install Microphones > Gooseneck provides full articulation and easy placement options. Each microphone includes a windscreen and mounting flange. Featuring Commshield® Technology which guards against unwanted RF interference from portable wireless devices Centraverse microphones deliver in best-in-class performance and reliability. Mute switch/LED and Mute switch/Light ring options are not sold in the Americas region.
Features
- Cardioid polar pattern with tailored response for speech
- CommShield® Technology that guards against unwanted RF interference from portable wireless devices (smartphones etc.) and offers high resistance to intense nearby radio signals
- Frequency response ideal for capturing fast transients in a wide variety of locations including podiums and desktops
- Superior Shure design and rugged dependable construction
Specifications
|
Cartridge Type |
Electret condenser |
|
Frequency Response |
70 to 16,000 Hz |
|
Polar Pattern |
Cardioid |
|
Output Impedance |
180 ? |
|
Sensitivity |
At 1 kHz, open circuit voltage: -33 dBV/Pa (22 mV) 1 Please Note:1 Pa = 94 dB SPL close |
|
Maximum SPL |
1 kHz at 1% THD: 120 dB SPL 2 Please Note:THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at the specified SPL. close |
|
Signal to Noise Ratio |
Referenced at 94 dB SPL @ 1 kHz: 67 dB 3 Please Note:S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted close |
|
Dynamic Range |
93 dB |
|
Self Noise |
Equivalent SPL, A-weighted (typical): 27 dB SPL |
|
Common Mode Rejection |
>45 dB (10 Hz to 100 kHz) |
|
Clipping Level |
Preamplifier Output 1 kHz @ 1% THD: -7 dBV |
|
Polarity |
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
|
Power Requirement |
11 to 52 VDC, 2.0 mA 4 Please Note:All specifications measured with a 48 VDC phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity. close |
|
Relative Humidity |
0 to 95% |
|
Operating Temperature Range |
0 to 135? |
