Overview
ADX2/K9, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

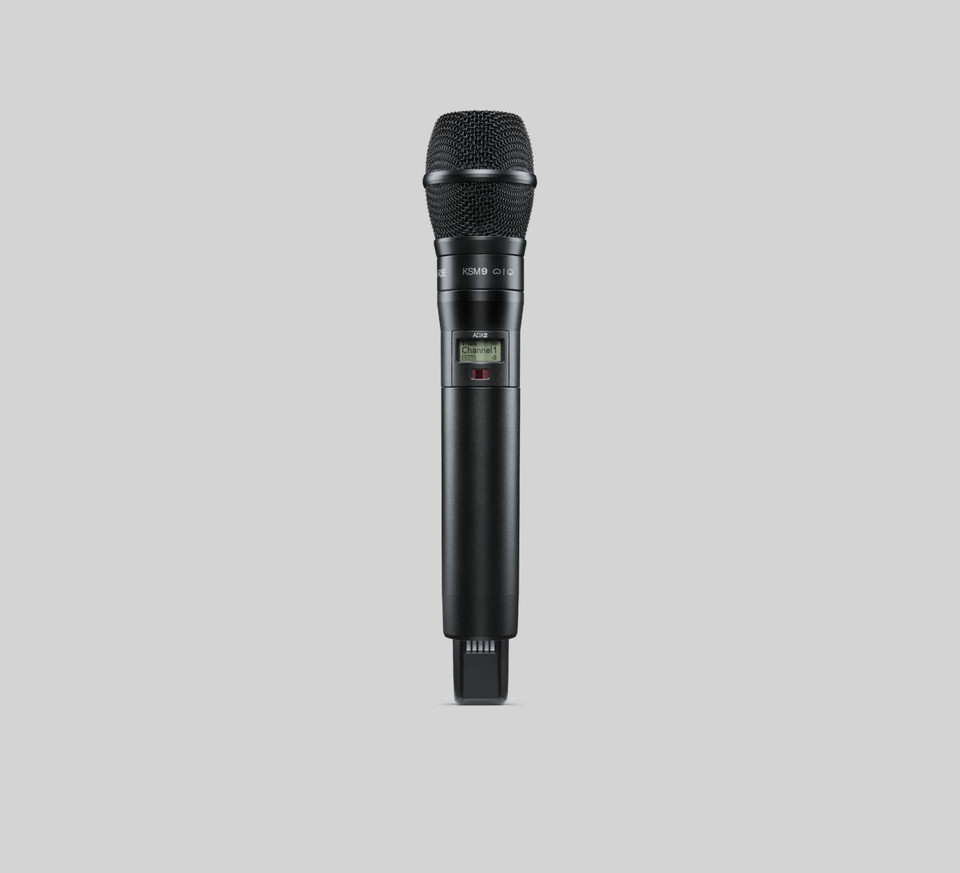

The ADX2/K9 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features
- Durable, moisture-resistant, lightweight metal case in black and nickel finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Specifications
| Weight | 179g |
| Height x Width x Depth | 254.0 × 51.0 × 51.0mm |
| Form Factor | Handheld |
| Transmitter housings | Metal |
| Audio Mute | Yes |
| Detachable Antennas | No |
| Switchable RF power | Yes |
| Batteries | Shure Lithium-Ion battery |
| Encryption | 256 Bit AES |
| Charger Options | Docking Charger |
| Configuration | Unbalanced |
| Frequency Diversity | No |
| Functionality | Transmitter |
| High Density Mode | No |
| Interchangeable Handheld Capsule | Interchangeable |
| Transmitter displays | Backlit LCD |
| Transmission | Digital in UHF TV band |
