Overview
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

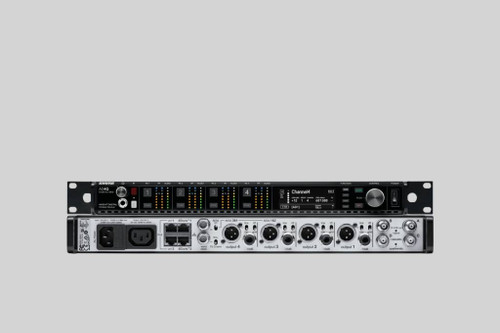

The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features
- Works with Axient® Digital Wireless Systems
- Features Quadversity™ mode for extended antenna coverage, switchable XLR and AES3 outputs, and all capabilities of the AD4D Two-Channel Digital Receiver
- Available with or without accessories
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Quadversity mode for extended antenna coverage and improved RF signal-to-noise
- Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- Switchable XLR and AES3 outputs
- Channel Quality meter displays RF signal-to-noise
- Locking AC connectors
- DC module version available to support redundant power
AD4QNP=-B
Frequency Band Version: 606-810 MHz (A), without accessories
Specifications
- Weight: 4800 g
- Height x Width x Depth: 44.0 × 483.0 × 333.0 mm
- Transmission: Digital in UHF TV band
- Type of Power Supply: Internal
- Receiver Housings: Metal
- Bias via BNC: Yes
- Encryption: 256 Bit AES
- Frequency Diversity: True
- High Density Mode: Yes
- Interference Detection: Yes
- Remote Control: Yes
- DANTE-Enabled Products: Yes
- Scan Features: Channel Scan, Group Scan
- Sync Features: IR Sync
- Detachable Antennas: Yes
- Network ability: DHCP, link-local, static
- Software control : Yes, Shure Software
- Logic: Yes
- Cascade: Yes
- Rack Hardware: Integrated, Not needed
- Receiver type: Quad
- Included antenna: External 1/2 wave
- Line Mic Switch: Yes
- Phantom Power Protection: Yes
