Overview

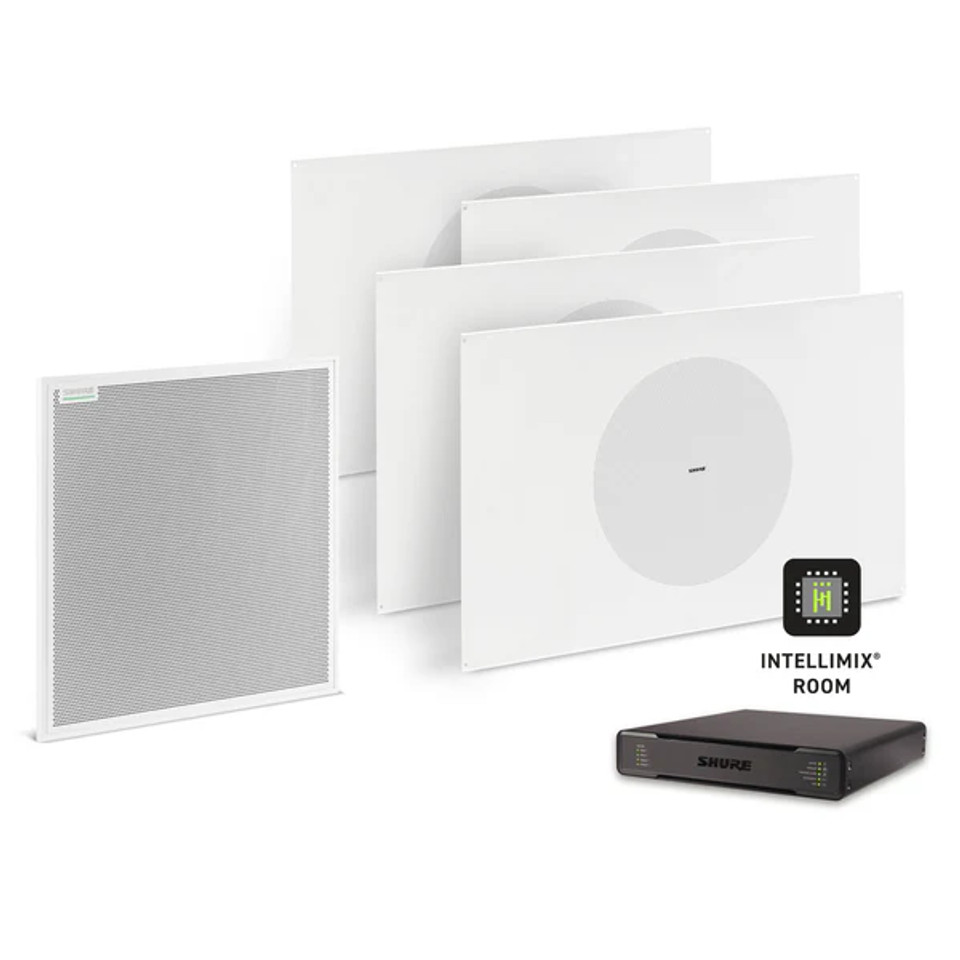

The MXA920W-S is the next evolution of the market-leading Microflex® Advance™ ceiling array microphone from Shure. It is the premier microphone solution for AV conferencing, camera tracking, voice lift, and sound reinforcement applications in corporate, education, and government environments. It automatically picks up every talker clearly, no matter where they are in the room. With Next Generation Array Architecture for better sound capture than ever, the MXA920 is even easier to use and faster to deploy than the MXA910 that it replaces.

The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

Specifications

MXA920W-S

• Coverage Type: Automatic or steerable
• Power Requirements: Power over Ethernet (PoE), Class 0
• Power Consumption: 10.1 W maximum
• Control Software: Designer or web application
• Plenum Rating: MXA920-S UL2043 (Suitable for Air Handling Spaces)
• Dust Protection: IEC 60529 IP5X Dust Protected
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (−20°F) to 74°C (165°F)
• Networking Cable Requirements: Cat5e or higher (shielded cable recommended)
• Connector Type: RJ45
• AES67 or Dante Digital Output

  • Channel Count

    • Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel) Shure Incorporated
    • Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
  • Sampling Rate: 48 kHz
  • Bit Depth: 24
• Sensitivity (at 1 kHz) : −1.74 dBFS/Pa
• Maximum SPL (Relative to 0 dBFS overload) : 95.74 dBSPL
• Signal-to-Noise Ratio (Ref. 94 dBSPL at 1 kHz) : 75.76 dB Aweighted
• Latency (Does not include Dante latency)

  • Direct outputs (Automatic coverage off): 15.9 ms
  • Automix output (Includes IntelliMix processing): 26.6 ms
• Self Noise: 18.24 dB SPLA
• Dynamic Range: 77.5 dB
• Digital Signal Processing: Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain
• control, compressor, delay, equalizer (4band parametric), mute, gain (140 dB range)
• Acoustic Echo Cancellation Tail Length: Up to 250 ms
• Frequency Response: 125 Hz to 20,000 Hz - Frequency response measured directly on-axis from a distance of 6 feet
• (1.83 m).
• Weight: 11.8 lbs (5.4 kg)

MXN5W-C

• Connector Type: RJ45
• Power Requirements: Power over Ethernet (PoE Class 0) or PoE Plus (Class 4)
• Weight: 6.5 lbs (2.95 kg)
• Product Dimensions (HxWxD): 12x12x4" (304.8x304.8x101.6mm)
• Control Software: Shure Designer
• Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
• Frequency Response (-3 dB): 120 Hz to 20 kHz
• Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
• Latency: 1.5 ms (Not including Dante latency)
• POWER CONSUMPTION

  • Power over Ethernet (PoE): 12W maximum (11W typical)
  • PoE Plus: 24W maximum (23W typical)
• MAXIMUM OUTPUT LEVEL COVERAGE ANGLE

  • Power over Ethernet (PoE) @ 1 meter: 92 dB SPL -6 dB at 2 kHz 180 degrees
  • PoE Plus @ 1 meter: 98 dB SPL -6 dB at 10 kHz 107 degrees
