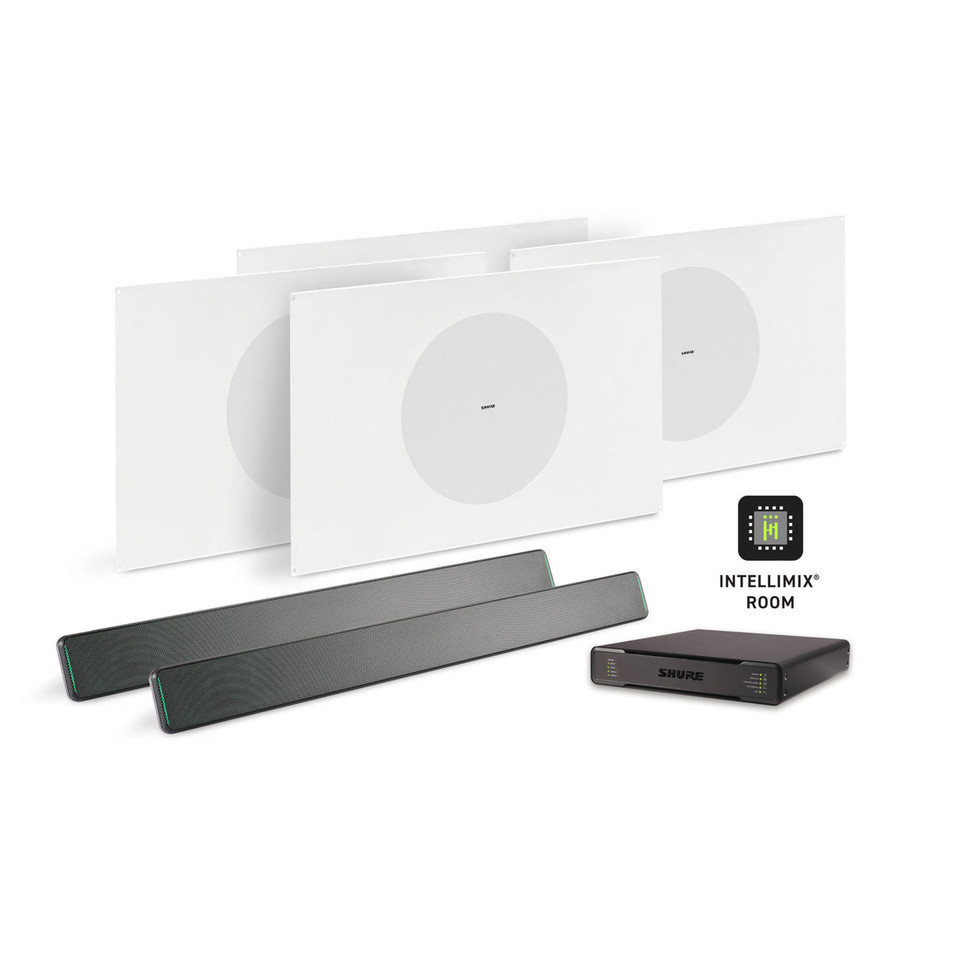

The Shure Microflex Ecosystem 712X AV Conferencing Bundle includes an MXA710-2FT microphone, a P300-IMX, and four MXN5W-C + Tile Bridges.
The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. Available in two lengths and three colors, the MXA710 includes proprietary Shure IntelliMix® DSP and Autofocus™ technology that provides all the processing needed for echo and noise-free conference audio.
The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.
Specifications
- 710
- Adjustable Lobe Width
- Narrow: 30 degrees
- Medium: 40 degrees
- Wide: 70 degrees
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 10W maximum
- Weight: 2 lbs (0.91 kg)
- Product Dimensions (HxWxL): 0.87x2.36x25.04" (22.09x60x636mm)
- Control Software: Shure Designer
- Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
- Dust Protection: IEC 60529 IP5X Dust Protected
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
- Audio Frequency Response: 100 Hz to 20 kHz
- AES67 or Dante Digital Output
- Channel Count: 6 total channels (4 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity (at 1 kHz): -7.4 dBFS/Pa
- Maximum SPL (Relative to 0 dBFS overload): 101.4 dB SPL
- Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 71.2 dB A-weighted
- Latency (Does not include Dante latency)
- Direct Outputs: 8.7 ms
- Automix output (Includes IntelliMix processing): 19.3 ms
- Self Noise: 22.9 dB SPL-A
- Dynamic Range: 78.5 dB
- Built-in Digital Signal Processing: Automatic mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- Acoustic Echo Cancellation Tail Length: Up to 250 ms
- Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Adjustable Lobe Width
- MXN5W-C + Tile Bridge
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE Class 0) or PoE Plus (Class 4)
- Weight: 6.5 lbs (2.95 kg)
- Product Dimensions (HxWxD): 12x12x4" (304.8x304.8x101.6mm)
- Control Software: Shure Designer
- Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
- Frequency Response (-3 dB): 120 Hz to 20 kHz
- Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
- Latency: 1.5 ms (Not including Dante latency)
- POWER CONSUMPTION
- Power over Ethernet (PoE): 12W maximum (11W typical)
- PoE Plus: 24W maximum (23W typical)
- MAXIMUM OUTPUT LEVEL COVERAGE ANGLE
- Power over Ethernet (PoE) @ 1 meter: 92 dB SPL -6 dB at 2 kHz 180 degrees
- PoE Plus @ 1 meter: 98 dB SPL -6 dB at 10 kHz 107 degrees
- P300
- General
- Input: (2) 3-pin block connector (Active Balanced)
- Output: (2) 3-pin block connector (Impedance Balanced)
- Mobile: (1) TRRS 3.5 mm (1/8″)
- USB Connections ((1) USB 2.0, Type B): Single port carries 2 input and 2 output channels (Summed mono)
- Network Connections (Dante Digital Audio); ((1) RJ45): 10 Dante Inputs, 8 Dante Outputs
- Polarity: Non-inverting, any input to any output
- Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
- Power Consumption: 17.5W, maximum
- Weight: 1710 g (3.8 lbs)
- Dimensions (HxWxD): 4x21x22.6cm (1.6x8.3x8.9”)
- Control Software: Shure Designer
- Operating Temperature Range: −6.7°C (20°F) to 50°C (122°F)
- Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
- Thermal Power Dissipation
- Maximum 17.5 W (60 BTU/hr)
- typical 14.6 W ( 50 BTU/hr)
- Audio
- Frequency Response (+1, 1.5 dB): 20 to 20,000 Hz
- Dante Digital Audio
- Sampling Rate: 48 kHz
- Bit Depth: 24
- USB Audio
- Sampling Rate: 48 kHz
- Bit Depth: 16, 24
- Latency (Does not include Dante latency)
- Firmware 4.1 and newer
- Dante 1-8 in to Dante out (AEC enabled) 15.4 ms
- Dante 1-8 in to Dante out (AEC disabled) 8.7 ms
- Dante 9-10 in to Dante out 3.4 ms
- Analog in to Analog out 3.8 ms
- Firmware 3.1 and older
- Dante 1-8 in to Dante out (AEC enabled) 12.5 ms
- Dante 1-8 in to Dante out (AEC disabled) 5.8 ms
- Dante 9-10 in to Dante out 1.8 ms
- Analog in to Analog out 2.2 ms
- Firmware 4.1 and newer
- Acoustic Echo Cancellation Tail Length: Up to 300 ms
- Analog Connections (Block Connectors)
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 113 dB
- Dante-to-Analog: 117 dB
- Equivalent Input Noise (20 Hz to 20 kHz, Aweighted, input terminated with 150Ω)
- Line 86 dBV
- Aux 98 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Common Mode Rejection Ratio (150Ω balanced source @ 1 kHz): >50 dB
- Input Impedance: 9.6 kΩ
- Input Clipping Level
- Line: +27 dBV
- Aux: +15 dBV
- Output Impedance: 80 Ω
- Output Clipping Level
- Line: +20 dBV
- Aux: +0 dBV
- Mic: 26 dBV
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Mobile Connection (3.5 mm Connector)
- Pin Assignments
- Tip: Audio Input (Left)
- Ring 1: Audio Input (Right)
- Ring 2: Ground
- Sleeve: Audio Output (To Phone)
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 99 dB
- Dante-to-Analog: 90 dB
- Equivalent Input Noise (20 Hz to 20 kHz, Aweighted, input terminated with 20Ω): 95 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Input Impedance: 3.7 kΩ
- Input Clipping Level: +4 dBV
- Output Impedance: 1.4 kΩ
- Output Clipping Level (Output terminated with 2.2 kΩ): 20 dBV
- Pin Assignments
- Networking
- Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Mobile Pin Assignments (TRRS)
- Tip: Audio Input (Left)
- Ring 1: Audio Input (Right )
- Ring 2: Ground
- Sleeve: Audio Output (To Phone)
- Note: The audio input (tip and ring 1) are summed to a mono signal in the P300, to send the signal to any destination on a single channel.
