Overview

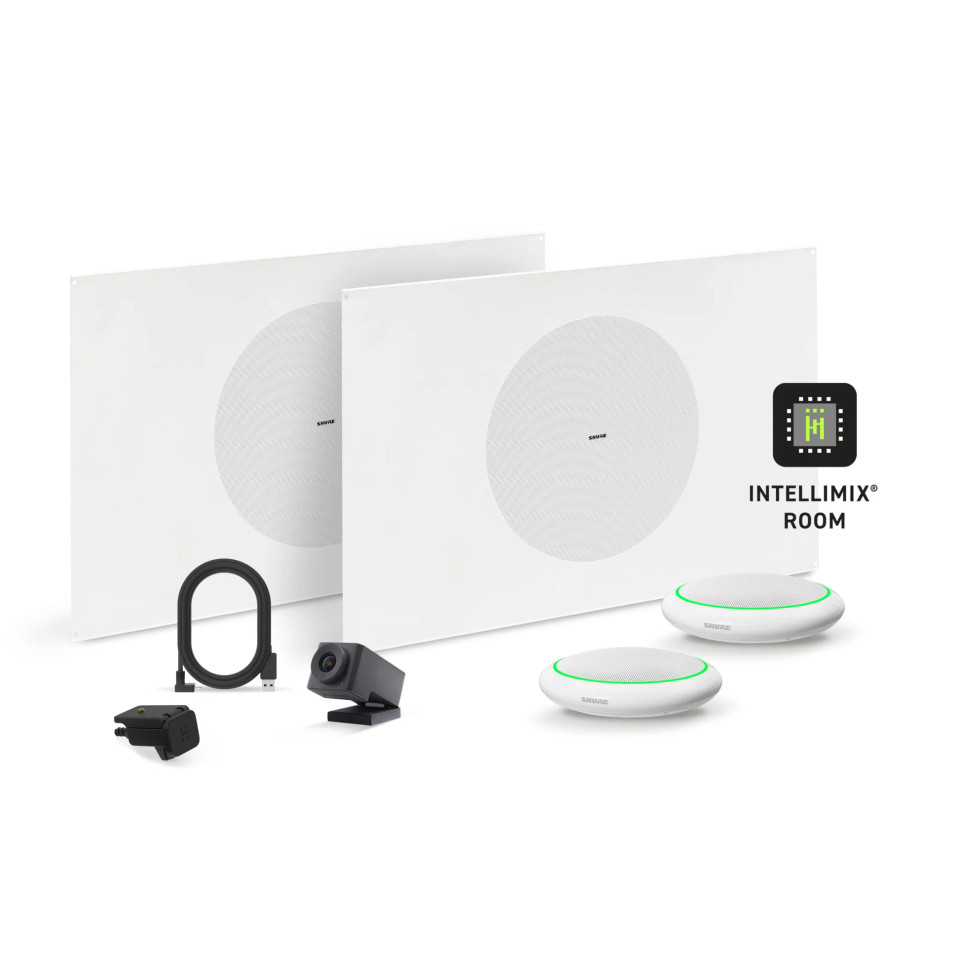

Shure's Microflex Ecosystem 310L + Huddly Cam AV Conferencing Bundle includes two MXA310 table array microphones, an IMX-RM8-SUB5 Intellimax subscription, two MXN5W-C + Tile Bridges, an HUDDLY IQ camera, and accessories.

MXA310 Table Array Microphones feature cable management solutions for on-the-table or through-the-table installation. Optional A310-FM mounting accessory also allows flush mounting in a table. Microphones are available in black, white and aluminum finishes to match room aesthetics or the finishes of other AV system components.

The MXA310 integrates smartly into any space. Boardrooms. Huddle rooms. Multi-purpose areas. You can ensure speech is captured accurately and reproduced intelligibly. With Steerable Coverage™ and a low profile design, it removes unnecessary clutter, giving you even more clarity.

The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

The Huddly IQ 4K wide-angle conference camera offersAI functionality such as industry-leading smart framing and advanced room analytics. Features USB plug-and-play. Certified for Microsoft Teams and Zoom. Available with or without microphone array.

Specifications

MXA310

• Polar Pattern
  • All channels independently adjustable
  • Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
• Connector TypeRJ45
• Power RequirementsPower over Ethernet (PoE), Class 0 Power Consumption4W, maximum
• Weight362 g (0.8 lbs)
• Dimensions (HxWxD) 3.6x13.4x13.4cm (1.4x5.3x5.3")
• Control applicationHTML5 Browser-based
• Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range−29°C (-20°F) to 74°C (165°F)
• Audio Frequency Response100 to 20,000 Hz
• AES67 or Dante Digital Output
  • Channel Count: 5 total channels (4 independent transmit channels, 1 Automatic mixing transmit channel)
  • Sampling Rate: 48 kHz
  • Bit Depth: 24
• Sensitivity (at 1 kHz, -15 dB Gain Setting) -21 dBFS/Pa
• Maximum SPL (1 kHz at 1% THD, -15 dB Gain Setting) 115.2 dB SPL
• Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)
• Cardioid: 75 dB
• Toroid: 67 dB
• Latency (Not including Dante latency): <1 ms
• Self Noise (-15 dB Gain Setting)
  • Cardioid: 19.2 dB SPL-A
  • Toroid 26.8 dB SPL-A
• Dynamic Range (-15 dB Gain Setting)
  • Cardioid: 96 dB
  • Toroid: 90 dB SPL
• Built-in Digital Signal Processing
  • Per Channel: Equalizer (4-band Parametric), Mute, Gain (140 dB range)
  • System: Automatic mixing, Low-Cut Filter (-12 dB/octave @ 150 Hz)
• Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)

Huddly IQ

• Hardware
  • 5-element beamforming microphone array (optional)
  • Aluminum unibody construction
  • High-performance video processing engine
  • Neural compute engine
  • Embedded mounting hinge
  • Camera tripod mount
• Optics
  • Ultra-wide angle glass optics
  • Horizontal field of view 120
  • Vertical field of view 90
  • Diagonal field of view 150
  • f/2.8 aperture
• Connectivity
  • USB Type-C connector
  • SuperSpeed USB 3
  • Power requirement 5V 900mA
• Color: Matte Black
• Packaging Dimensions (LxWxH): 80x52x50mm

MXN5W-C + Tile Bridge

• Connector Type: RJ45
• Power Requirements: Power over Ethernet (PoE Class 0) or PoE Plus (Class 4)
• Weight: 6.5 lbs (2.95 kg)
• Product Dimensions (HxWxD): 12x12x4" (304.8x304.8x101.6mm)
• Control Software: Shure Designer
• Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
• Frequency Response (-3 dB): 120 Hz to 20 kHz
• Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
• Latency: 1.5 ms (Not including Dante latency)
• POWER CONSUMPTION
  • Power over Ethernet (PoE): 12W maximum (11W typical)
  • PoE Plus: 24W maximum (23W typical)
• MAXIMUM OUTPUT LEVEL COVERAGE ANGLE
  • Power over Ethernet (PoE) @ 1 meter: 92 dB SPL -6 dB at 2 kHz 180 degrees
  • PoE Plus @ 1 meter: 98 dB SPL -6 dB at 10 kHz 107 degrees
