Overview

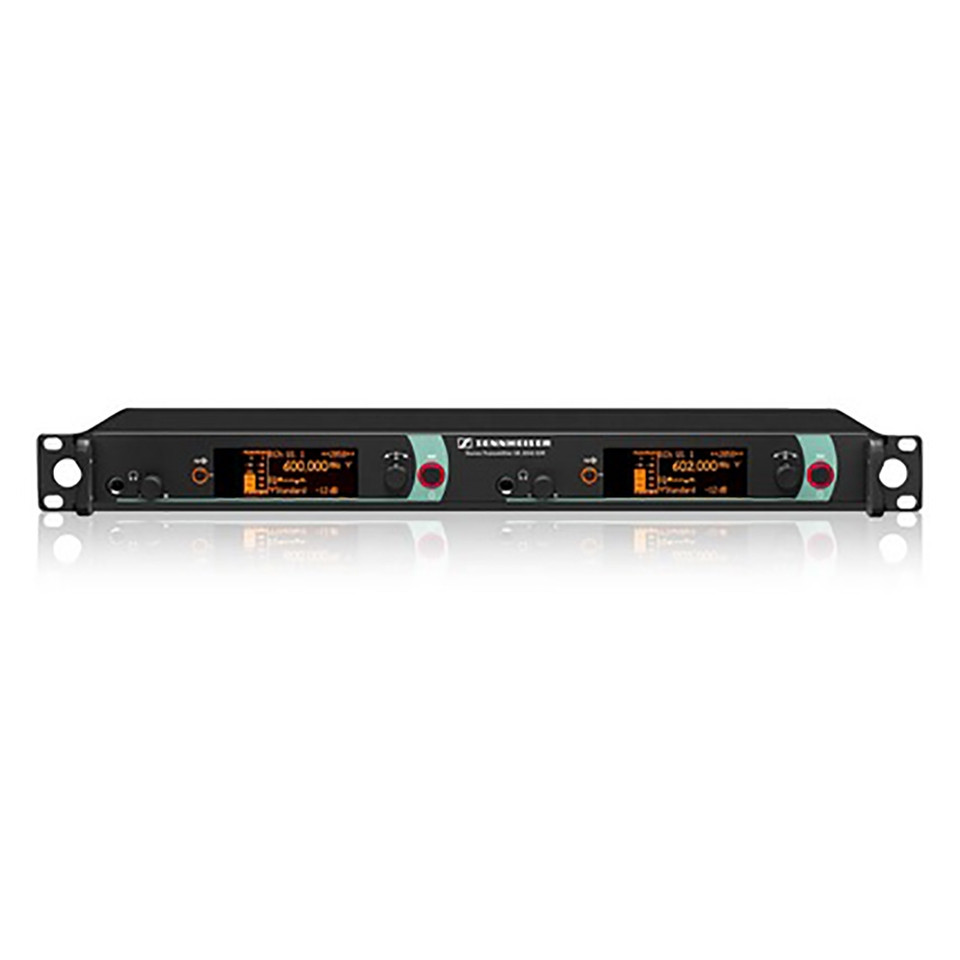

Robust 19"-rack twin transmitter for wireless monitoring. Up to 6 x 32 tunable channels. Switchable HF output power. Remote-controllable via "Wireless Systems Manager".
Aside from being designed as a twin transmitter, SR 2050 is identical to SR 2000, and like its single counterpart, it is also network compatible. In other words: Through the Ethernet connections, you can monitor and control SR 2050 from your PC using Sennheiser's Wireless Systems Manager software. You can also easily link other network-compatible components from other Sennheiser series.
Features
- Rugged 19" all-metal housing with integrated power supply unit
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks each with up to 32 tunable channels
- Frequency setting in 25 kHz steps
- Switchable RF output power for versatile use
- Enhanced audio frequency response in the bass range
- Receivers can be configured from the transmitter menu
- Can be synchronized with the receiver using infrared interface
- Wide range of accessories for virtually any use
- Monitoring and control using Sennheiser WSM PC software
- User-friendly menu interface with two-color backlit graphic display (red as a warning)
- Pilot tone transmission for interference-free operation
- Adjustable headphone connections
- Wide range of accessories for virtually any use
Specifications
- Dimensions: 436 x 215 x 43 mm
- Compander: HDX
- Audio-XLR connector: 4 x XLR, 4x 6,5 mm Jack
- Presets: max. 32
- Frequency response: 25 - 15000 Hz
- Weight: 2900 g
- Signal-to-noise ratio: > 90 dB(A)
- RF frequency range: 516....865 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- In compliance with: CE, FCC, IC
- Modulation: FM, MPX-stereo
- Power supply: 100 - 240 V AC, 50/60 Hz
- Carrier frequencies: max. 3000
- Antenna connector: 2 x BNC
- Current consumption: 0,2 A
- Headphone connector: > 100 mW (32 Ω)
- Input voltage range: + 22 dBu max
- Frequency range: 516 ... 558 MHz / US
