Overview

The SL Bodypack KITs DW are the perfect complement to the new SL Multi-Channel Receiver DW.

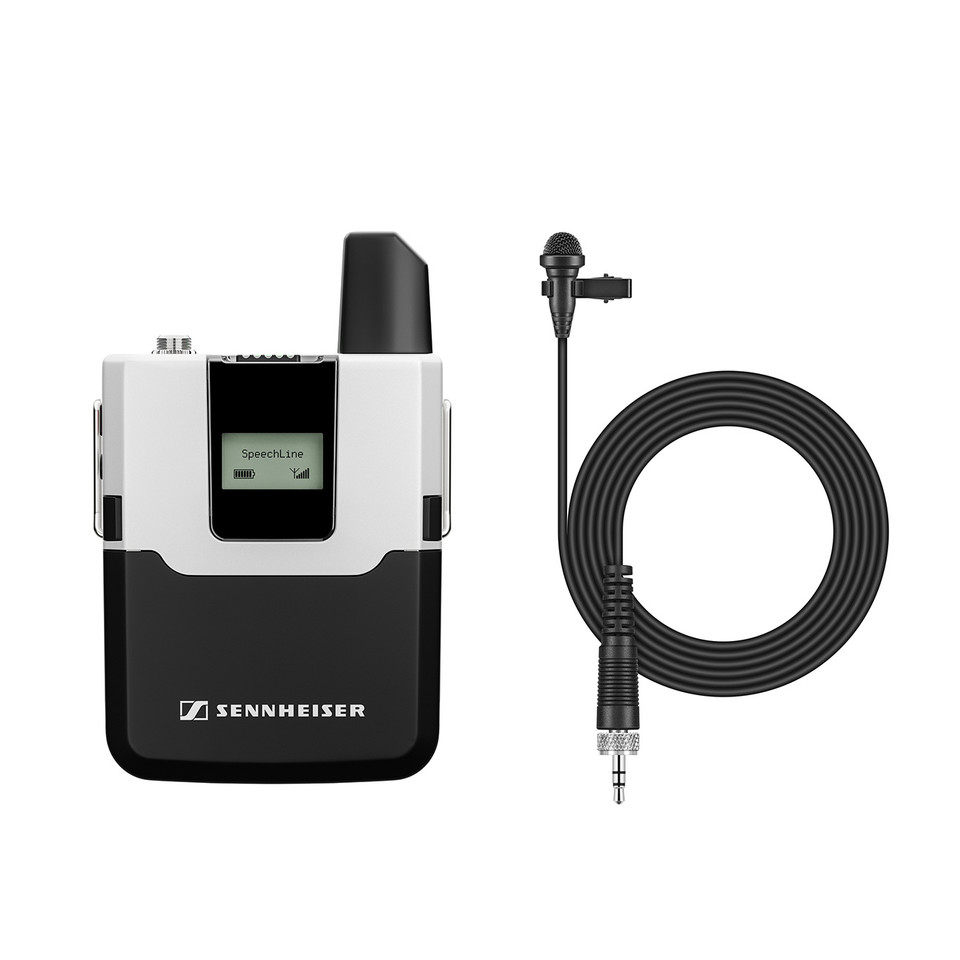

This KIT contains the compact and robust SL Bodypack DW bodypack transmitter, which is specially designed to transmit the spoken word and is compatible with all Sennheiser neckband and lavalier microphones (e.g. SL Headmic 1 or MKE 1). Thanks to the bi-directional communication between transmitter and receiver, no adjustments need to be made at the transmitter and the automatic frequency and interference management ensures easy setup and maximum transmission reliability. The transmitter's LC display shows the name of the radio link, the charge level of the battery pack(s) and the reception quality. With the easily accessible mute switch, the transmitter can be muted if necessary. The SL Bodypack DW is equipped with a rechargeable lithium-ion battery pack with external charging contacts for easy charging in the chargers and a USB socket for charging via USB.

Also included in the kit is the ME 2, a sub-miniature clip-on lavalier microphone which is suitable for both speech and instrument miking applications. Colour: matt black.

• Lockable 3.5 mm jack socket

• Clear and easy focused user interface

• Long operation time (up to 15 hours)

• Advanced power management and Li-Ion rechargeables

• Secure 256 bit AES encryption

• Remote controllable

• High speech intelligibility

• Easy attachment on clothing

• Mini jack for bodypack transmitters from evolution wireless series, AVX, SpeechLine Digital Wireless, XS Wireless

Specifications

SL Bodypack DW

• Frequency response: 20 to 20,000 Hz
• RF output power: adaptive, up to 250 mW (country-specific)
• Operating time: Accupack: typ. 15 h Batteries: typ. 10 h
• Input voltage range: Mic: 2.2 V RMS Line: 3.3 V RMS
• Dynamic range: > 120 dB(A)
• Input impedance: 1 MΩ
• Sampling rates: 24 bit/48 kHz
• Audio input: 3,5 mm socket, lockable
• THD, total harmonic distortion: typ. 0.1 %
• Weight: approx. 88 g
• Signal-to-noise ratio > 90 dB(A)

ME 2

• Dimensions: d 6,5 mm (ME 2-US), d 10,5 mm (ME 2-II)
• Frequency response (Microphone): 30.....20000 Hz (ME 2-US), 50…..18000 Hz (ME 2-II)
• Transducer principle (Microphone): Permanent polarized condenser
• Connection cable: mini-jack
• Cable length: 1,6 m
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 20 mV/Pa
• Equivalent noise level: 36 dB
• Maximum sound pressure level (passive): 130 dB
• Operating voltage (stand alone): 7,5 V
