Bodypack transmitter with 3-pin connector. Includes (1) EW-DX SK 3-PIN and (2) AA batteries, frequency range:R1-9 (520-607.8 MHz)

SKU: SEN-509399
MSRP: $579.00
MAP: $499.00

Overview:

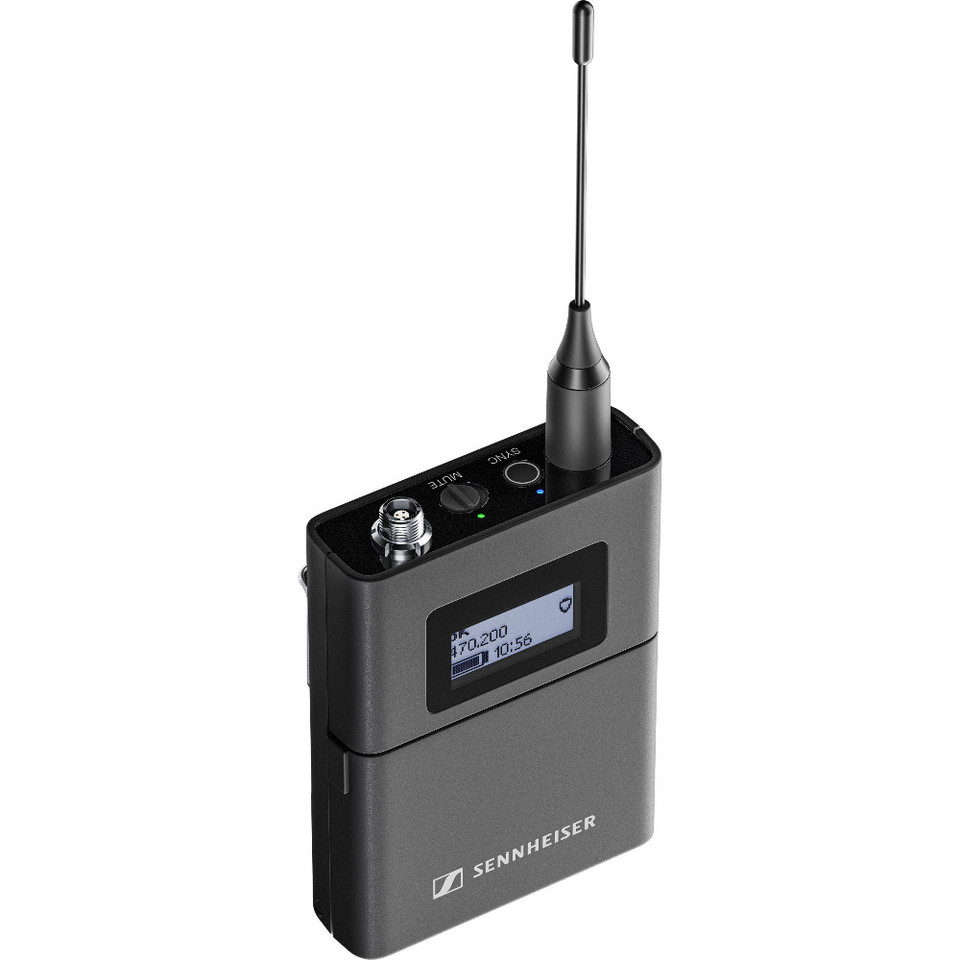

The Sennheiser EW-DX SK 3-PIN is a digital bodypack wireless transmitter compatible with EW-DX wireless receivers. Lightweight and comfortable for performers and presenters to wear, the bodypack features a rugged, all-metal housing well suited for daily use in conference rooms, houses of worship, or on stage.

The EW-DX SK 3-PIN is equipped with a 3-pin LEMO connector that accommodates the compatible lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a remarkable 134 dB dynamic range on its input, the transmitter can handle a wide variety of sound sources, including loud vocalists and performers, connections to musical instruments, and even line-level signals from mixers, all without requiring any gain adjustment.

Features:

Features at a Glance

  • The EW-DX SK 3-PIN features a mute button that can be locked out and overridden from the receiver or a mobile device during a performance. It quickly pairs with the receiver via Bluetooth at a distance up to 120', at the press of a button.
  • The persistent e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.
  • The transmitter provides up to 8 hours of operation on two AA batteries (included) or 12 hours with a BA 70 lithium-ion rechargeable battery pack (available separately). External charging ports allow for in-transmitter charging using the CHG 70N network charging dock (available separately).
  • The EW-DX 3-PIN system utilizes an equidistant tuning grid that equally spaces 3200 frequencies across its wide 80 MHz bandwidth to prevent disruptive intermodulation issues that occur when multiple transmitters operate in confined spaces.
  • The system can be expanded with multiple transmitters and receivers to offer up to 134 channels in equidistant tuning grid mode, and up to 269 channels in Link Density mode.
  • The EW-DX SK 3-PIN is backward-compatible with EW-D receivers.

Compatible Mics and Instrument Cable with 3-Pin LEMO Connector

  • The sweat-resistant, subminiature MKE 2 omnidirectional lavalier mic offers a pristine, broadcast-quality sound and is easy to conceal.
  • The unobtrusive ME 2 omnidirectional lavalier mic provides a forgiving pickup pattern that captures sound equally well in every direction.
  • The ME 4 cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
  • The ME 3 cardioid headset mic provides enhanced speech clarity for lectures and presentations.
  • The CI 1 instrument cable lets you connect the bodypack transmitter to a guitar, bass, or keyboard.

Specs:

Wireless Technology Digital UHF
RF Frequency Band R1-9:
520 to 607.8 MHz
RF Bandwidth 87 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m (Line of Sight)
Built-In Recorder No
Control App Support Yes, Available for Android/iOS
Bluetooth 5.1 LE
Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution 24-Bit
Latency 1.9 ms
Encryption AES 256
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW (ERP)
10 mW (EIRP)
Audio I/O 1 x LEMO 3-Pin Female Input (Lockable)
Included Cable Connector None
Muting Mute Switch
Audio Input Level 2 to 4.35 V
Auto-Level Control No
Frequency Response 20 Hz to 20 kHz -3 dB
Sync Method Bluetooth
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Sennheiser Battery Pack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack)
Display & Indicators 1 x Backlit LCD (Battery Status, Mute)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 5 to 95%
Dimensions 2.5 x 3.3 x 0.8" / 63 x 85 x 20 mm
Weight 4.2 oz / 120 g (without Batteries)
