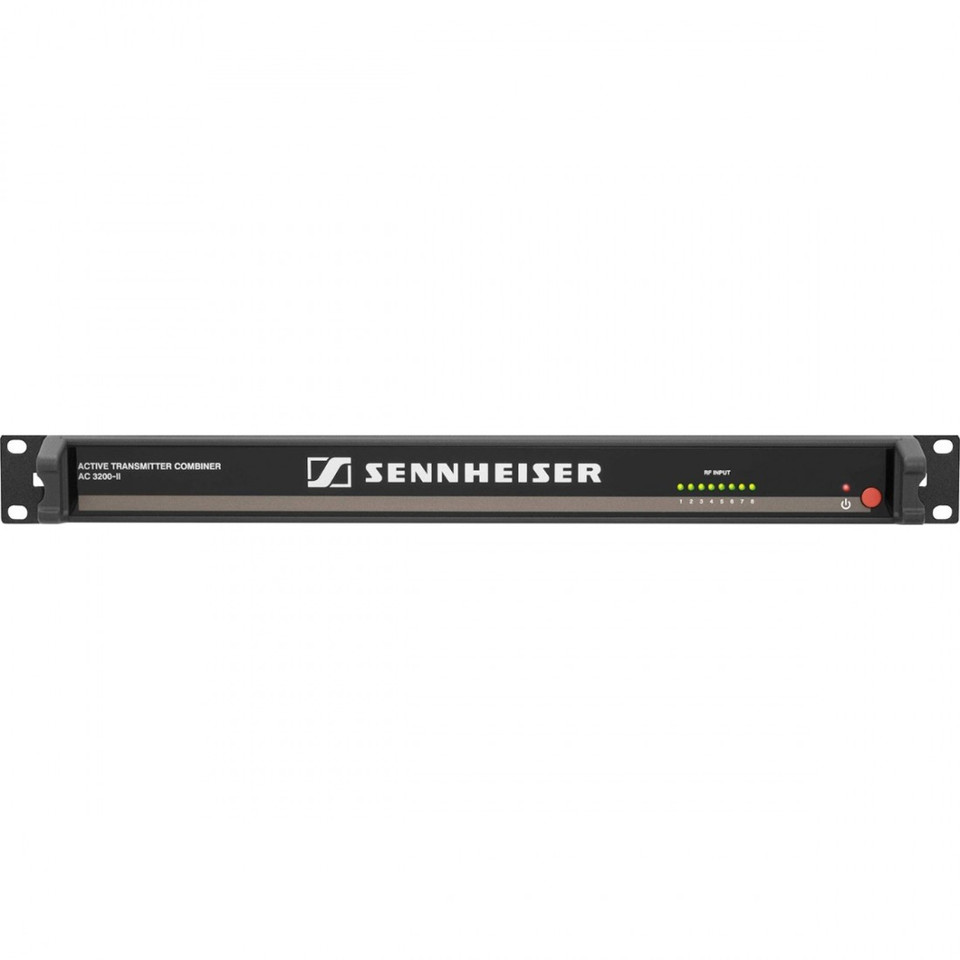

Sennheiser AC3200-II
Active Broadband 8-Channel Transmitter-Combiner

The AC 3200 is an active high-power 8:1 antenna combiner for large multi-channel wireless monitoring systems. the AC3200-II combines up to eight channels for transmission via one antenna with a broadband design covering 500 - 870 MHz. It significantly reduces intermodulation of wireless monitoring transmitters while keeping backstage clutter to a minimum. Long distances can be covered reliably as the AC 3200 accepts up to 250 mW of input power.

Features:

• Active 8-channel 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
• Significant improvement of RF performance for multi-channel systems
• Broadband RF design to cover the UHF frequency range from 500-870 MHz
• Maximum input power of 250 mW
• LEDs on the front show whether a signal is present at the RF input
• Compatible with SR 2050XP IEM SR 2000XP IEM SR 300 IEM G3 and legacy EW and 3000 Series monitor transmitters

Delivery Includes:

(1) AC 3200-II active transmitter combiner
(1) NT12-125D in-line power supply
(3) power cables (US/EU/UK)
(4) self-adhesive device feet
(1) Instruction manual

Specifications
